Dahua Digital Video Recorder
Dahua Digital Video Recorder

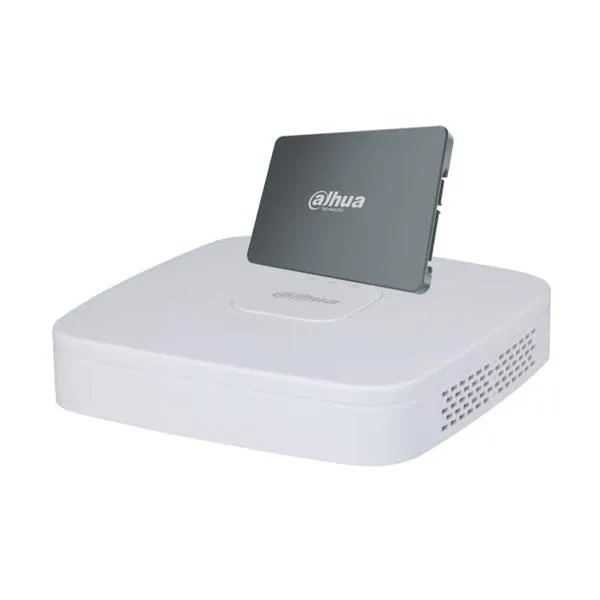

Dahua XVR5108CI3 1T 8 Channel Penta brid 5MP Value 1080P Smart 1U 1 SSD 1TB WizSense Digital Video Recorder
Comes with an internal 1TB SSD, and can record videos for about 11 days.
8-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and Smart H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5108C-I3(1T) 8CH Penta-brid 5MP Value/1080P Smart 1U 1SSD 1TB WizSense Digital Video Recorder
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Alarm Input: 8 channels
- Alarm Output: 3 channels
- HDD Interface: 1 SSD:1TB(replaceable with 256 GB or 512 GB) Stores for 11 days under default settings.
- USB Port: 2 X (2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <5 W (with SSD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 257.1 mm × 55.0 mm
- Weight: 1.31 kg (2.89 lb)
Dahua XVR5104HEI3 1T 4 Channel Penta brid 5MP Value 1080P Mini 1U 1SSD 1TB WizSense Digital Video Recorder
Comes with an internal 1TB SSD, and can record videos for about 22 days
4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
1-channel face recognition for analog channels which supports face comparison.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 6-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 32 Mbps.
Smart H.265+ and Smart H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5104HE-I3(1T)4CH Penta-brid 5MP Value/1080P Mini 1U 1SSD 1TB WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 4-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Alarm Input: 8 channels
- Alarm Output: 3 channels
- HDD Interface: 1 SSD:1TB(replaceable with 256 GB or 512 GB) Stores for 22 days under default settings.
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 2.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <5 W (with SSD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 257.1 mm × 55.0 mm
- Weight: 1.31 kg (2.89 lb)
Dahua XVR5104HI3 1T 4 Channel Penta brid 5MP Value 1080P Mini 1U 1SSD 1TB WizSense Digital Video Recorder
Comes with an internal 1TB SSD, and can record videos for about 22 days.
4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
1-channel face recognition for analog channels which supports face comparison.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 6-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 32 Mbps.
Smart H.265+ and Smart H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5104H-I3(1T) 4CH Penta-brid 5MP Value/1080P Mini 1U 1SSD 1TB WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- HDD Interface: 1 SSD:1TB(replaceable with 256 GB or 512 GB) Stores for 22 days under default settings.
- USB Port: 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <5 W (with SSD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 257.1 mm × 55.0 mm
- Weight: 1.29 kg (2.84 lb)
Dahua XVR5104HSI3 1T 4 Channel Penta brid 5MP Value 1080P Compact 1U 1SSD 1TB WizSense Digital Video Recorder
Comes with an internal 1TB SSD, and can record videos for about 22 days.
4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
1-channel face recognition for analog channels which supports face comparison.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 6-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 32 Mbps.
Smart H.265+ and Smart H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5104HS-I3(1T)4CH Penta-brid 5MP Value/1080P Compact 1U 1SSD 1TB WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- HDD Interface: 1 SSD:1TB(replaceable with 256 GB or 512 GB) Stores for 22 days under default settings.
- USB Port: 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <5 W (with SSD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 260.0 mm × 237.8 mm × 47.6 mm
- Weight: 0.84 kg (1.85 lb)
Dahua XVR5104CI3 1T 4 Channel Penta brid 5MP Value 1080P Smart 1U 1SSD 1TB WizSense Digital Video Recorder
Comes with an internal 1TB SSD, and can record videos for about 22 days
4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
1-channel face recognition for analog channels which supports face comparison.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 6-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 32 Mbps
Smart H.265+ and Smart H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5104C-I3(1T) 4CH Penta-brid 5MP Value/1080P Smart 1U 1SSD 1TB WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- HDD Interface: 1 SSD:1TB(replaceable with 256 GB or 512 GB) Stores for 22 days under default settings.
- USB Port: 2 X (2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <5 W (with SSD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 204.6 mm × 210.9 mm × 45.6 mm
- Weight: 0.49 kg (1.08 lb)

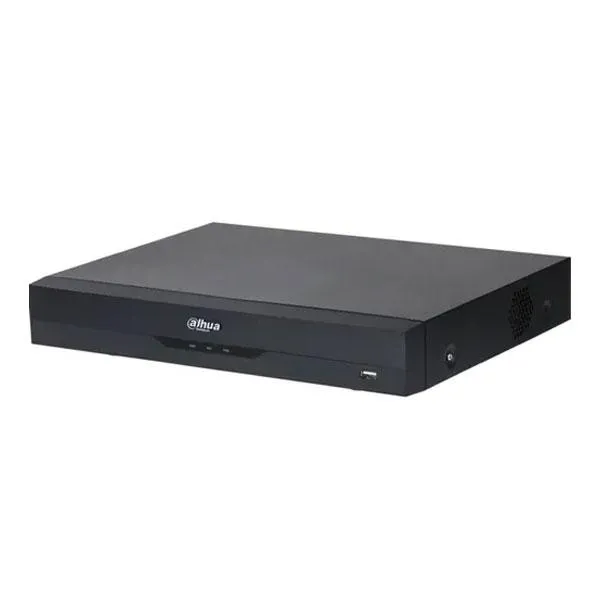

Dahua XVR5208AI3 8 Channel Penta brid 5MP Value 1080P 1U 2HDDs WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
8-channel SMD Plus for analog channels or 12-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: Dahua XVR5208A-I3 8CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video Recorder
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 12 channels
- AI Video Quality Analytics by Recorder 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 4-channel RCA; 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Alarm Input: 8 channels
- Alarm Output: 3 channels
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 2.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <16 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 289.6 mm × 53.0 mm
- Weight: 1.62 kg (3.58 lb)
Dahua XVR5408LI3 8 Channel Penta brid 5MP Value 1080P 4HDDs WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
8-channel SMD Plus for analog channels or 12-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5408L-I3 8CH Penta-brid 5MP Value/1080P 1.5U 4HDDs WizSense Digital Video Recorder
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 12 channels
- AI Video Quality Analytics by Recorder 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 5 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 4-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Alarm Input: 8 channels
- Alarm Output: 6 channels (5-channel relay output, 1-channel 12 V 1 A output)
- Disk Interface: 4 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.
- USB Port: 3 X (1 front USB 2.0 port, 2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <16 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 440.0 mm × 463.0 mm × 94.9 mm
- Weight: 4.50 kg (9.93 lb)

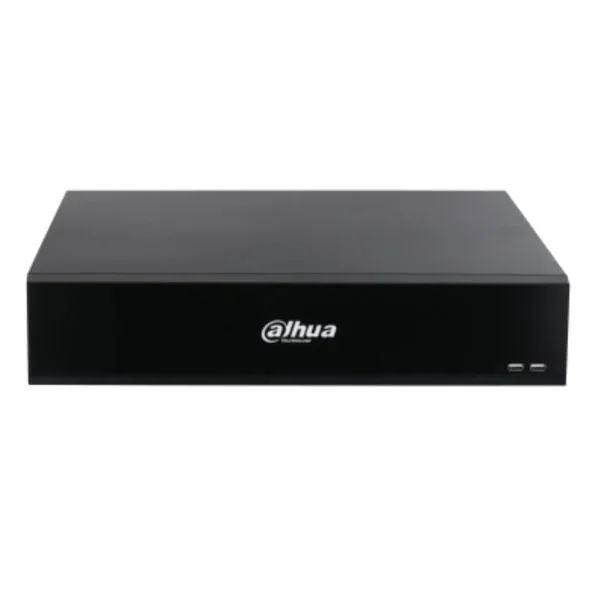

Dahua XVR5808SI3 8 Channel Penta brid 5MP Value 1080P 2U 8HDDs WizSense Digital Video Recorder
- Product: XVR5808S-I3 8CH Penta-brid 5MP Value/1080P 2U 8HDDs WizSense Digital Video Recorder
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 12 channels
- AI Video Quality Analytics by Recorder 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 5 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 8-channel RCA; 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Alarm Input: 8 channels
- Alarm Output: 6 channels (5-channel relay output, 1-channel 12 V 1 A output)
- Disk Interface: 8 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.
- USB Port: 4 x (2 front USB 2.0 ports, 2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <16 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 440.0 mm × 463.0 mm × 94.9 mm
- Weight: 6.50 kg (14.34 lb)
Dahua XVR5104CI3 4 Channel Penta brid 5MP Value 1080P Smart 1U 1HDD WizSense Digital Video Recorder
1-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
4-channel SMD Plus for analog channels or 6-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
1-channel face recognition for analog channels which supports face comparison.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 6-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 32 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5104C-I3 4CH Penta-brid 5MP Value/1080P Smart 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 6 channels
- AI Video Quality Analytics by Recorder 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 2.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <16 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 440.0 mm × 463.0 mm × 94.9 mm
- Weight: 6.50 kg (14.34 lb)

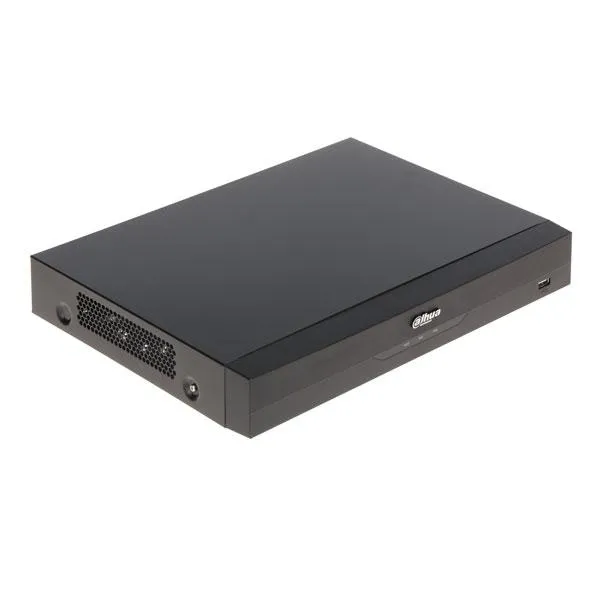

Dahua XVR5104HSI3 4 Channel Penta brid 5MP Value 1080P Compact 1U 1HDD WizSense Digital Video Recorder
1-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
4-channel SMD Plus for analog channels or 6-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
1-channel face recognition for analog channels which supports face comparison.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 6-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 32 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5104HS-I3 4CH Penta-brid 5MP Value/1080P Compact 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 6 channels
- AI Video Quality Analytics by Recorder 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 2.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <16 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 289.6 mm × 53.0 mm
- Weight: 1.90 kg (4.20 lb)

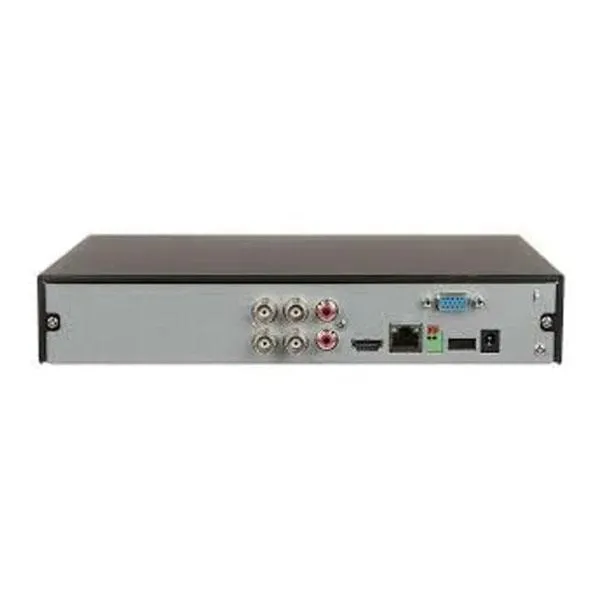

Dahua XVR5104HI3 4 Channel Penta brid 5MP Value 1080P Mini 1U 1HDD WizSense Digital Video Recorder
1-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
4-channel SMD Plus for analog channels or 6-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
1-channel face recognition for analog channels which supports face comparison.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 6-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 32 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5104H-I3 4CH Penta-brid 5MP Value/1080P Mini 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 6 channels
- AI Video Quality Analytics by Recorder 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 2.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <16 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 289.6 mm × 53.0 mm
- Weight: 1.29 kg (2.84 lb)
Dahua XVR5104HEI3 4 Channel Penta brid 5MP Value 1080P Mini 1U 1HDD WizSense Digital Video Recorder
1-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
4-channel SMD Plus for analog channels or 6-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
1-channel face recognition for analog channels which supports face comparison.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 6-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 32 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5104HE-I3 4CH Penta-brid 5MP Value/1080P Mini 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 6 channels
- AI Video Quality Analytics by Recorder 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <16 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 289.6 mm × 53.0 mm
- Weight: 1.90 kg (4.20 lb)

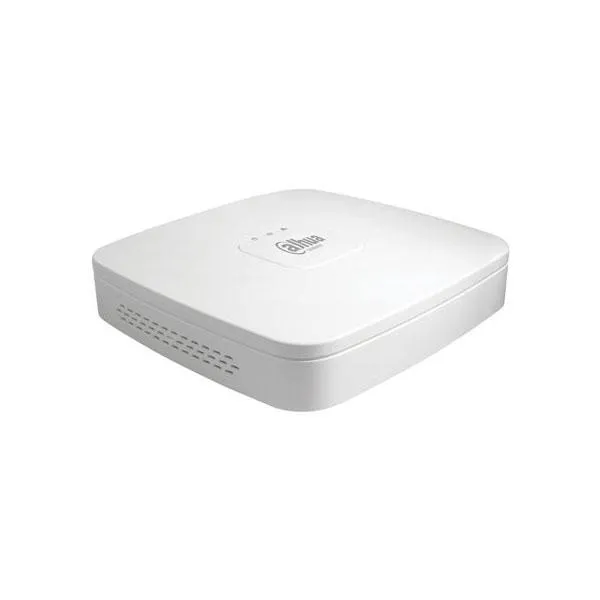

Dahua XVR5108CI3 8 Channel Penta brid 5MP Value 1080P Smart 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
8-channel SMD Plus for analog channels or 12-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5108C-I3 8CH Penta-brid 5MP Value/1080P Smart 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 12 channels
- AI Video Quality Analytics by Recorder 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <16 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 204.6 mm × 210.9 mm × 45.6 mm
- Weight: 0.56 kg (1.24 lb)
Dahua XVR5108HSI3 8 Channel Penta brid 5MP Value 1080P Compact 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
8-channel SMD Plus for analog channels or 12-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5108HS-I3 8CH Penta-brid 5MP Value/1080P Compact 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 12 channels
- AI Video Quality Analytics by Recorder 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 2.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <16 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 257.1 mm × 55.0 mm
- Weight: 1.17 kg (2.58 lb)

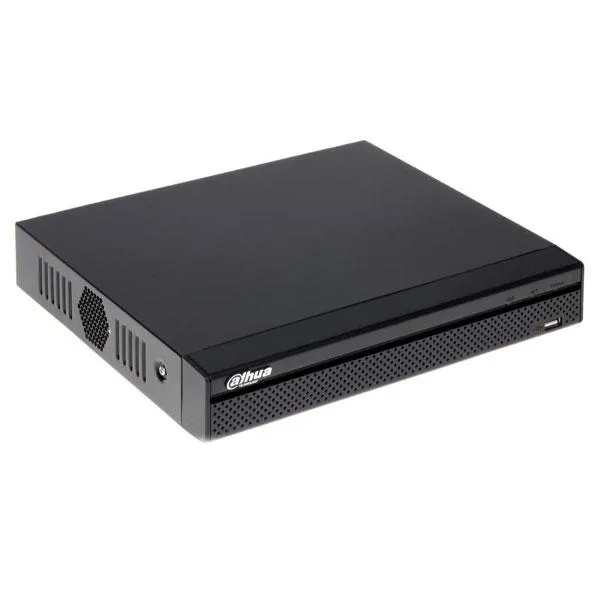

Dahua XVR5108HI3 8 Channel Penta brid 5MP Value 1080P Mini 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
8-channel SMD Plus for analog channels or 12-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5108H-I3 8CH Penta-brid 5MP Value/1080P Mini 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 12 channels
- AI Video Quality Analytics by Recorder 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 2.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <16 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 257.1 mm × 55.0 mm
- Weight: 1.17 kg (2.58 lb)

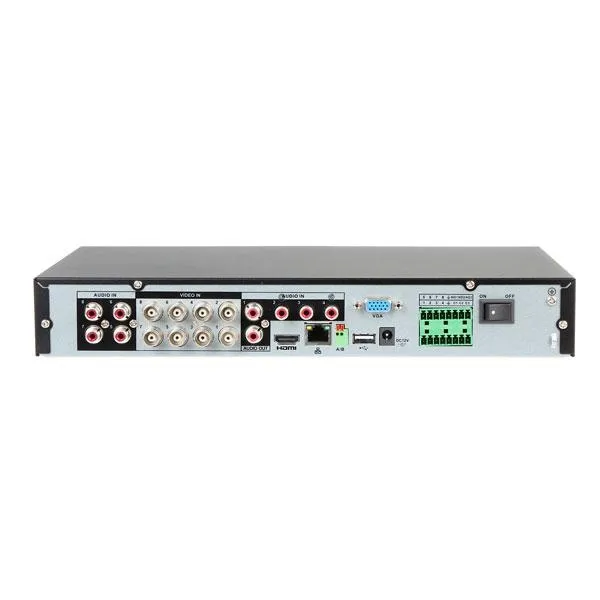

Dahua XVR5108HEI3 8 Channel Penta brid 5MP Value 1080P Mini 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
8-channel SMD Plus for analog channels or 12-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5108HE-I3 8CH Penta-brid 5MP Value/1080P Mini 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 12 channels
- AI Video Quality Analytics by Recorder 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 8-channel RCA; 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Alarm Input: 8 channels
- Alarm Output: 3 channels
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 2.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <16 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 289.6 mm × 53.0 mm
- Weight: 1.21 kg (2.67 lb)

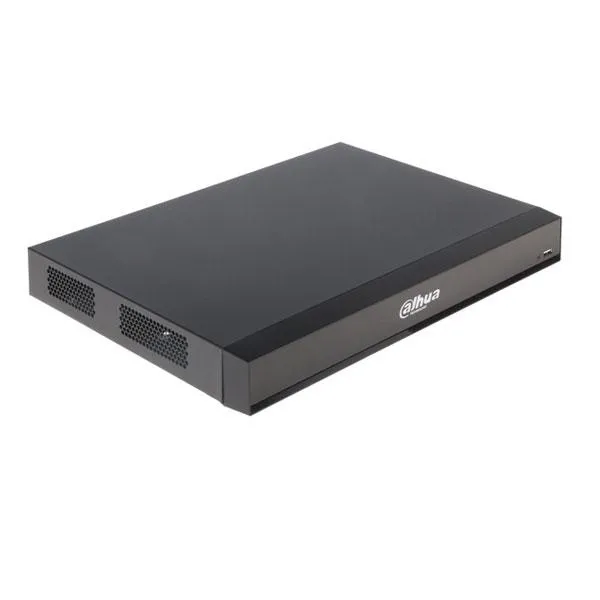

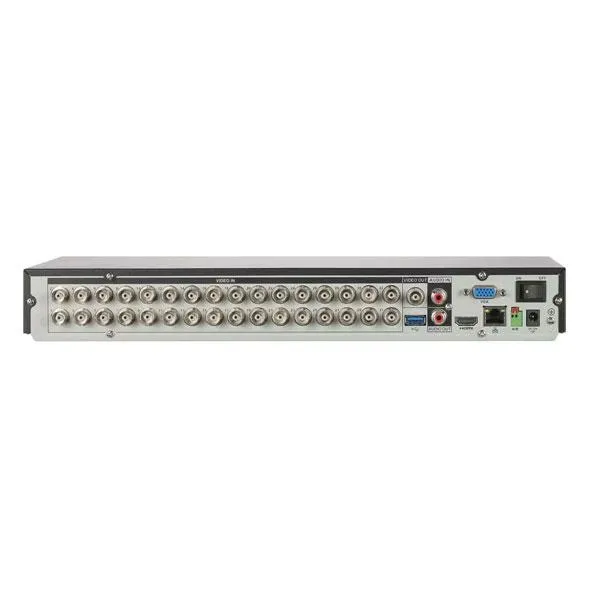

Dauha XVR5232ANI3 32 Channel Penta brid 5MP Value 1080P 1U 2HDDs WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
32-channel SMD Plus for analog channels or 48-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 48-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 192 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5232AN-I3 32CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video Recorder
- SMD Plus by Recorder: 32 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 48 channels
- AI Video Quality Analytics by Recorder 32 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 32-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <16 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 289.6 mm × 53.0 mm
- Weight: 1.90 kg (4.20 lb)
Dahua XVR5104H4KLI34P 4 Channel Penta brid 4K Value 5MP Mini 1U 1HDD WizSense Digital Video Recorder
4-channel SMD Plus for analog channels or 8-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 8-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
All the channels support PoC AT and PoC AF cameras, and the XVR auto recognizes PoC cameras that have different power consumption levels.
- Brand: Dahua
- Product: XVR5104H-4KL-I3-4P 4CH Penta-brid 4K Value/5MP Mini 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 8 channels
- AI Video Quality Analytics by Recorder 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <7 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 257.1 mm × 55.0 mm
- Weight: 1.10 kg (2.43 lb)
Dahua XVR5108H4KLI38P 8 Channel Penta brid 4K Value 5MP Mini 1U 1HDD WizSense Digital Video Recorder
8-channel SMD Plus for analog channels or 16-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 16-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
All the channels support PoC AT and PoC AF cameras, and the XVR auto recognizes PoC cameras that have different power consumption levels.
- Brand: Dahua
- Product: XVR5108H-4KL-I3-8P 8CH Penta-brid 4K Value/5MP Mini 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 16 channels
- AI Video Quality Analytics by Recorder 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <10 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 334.4 mm × 53.0 mm
- Weight: 1.60 kg (3.53 lb)

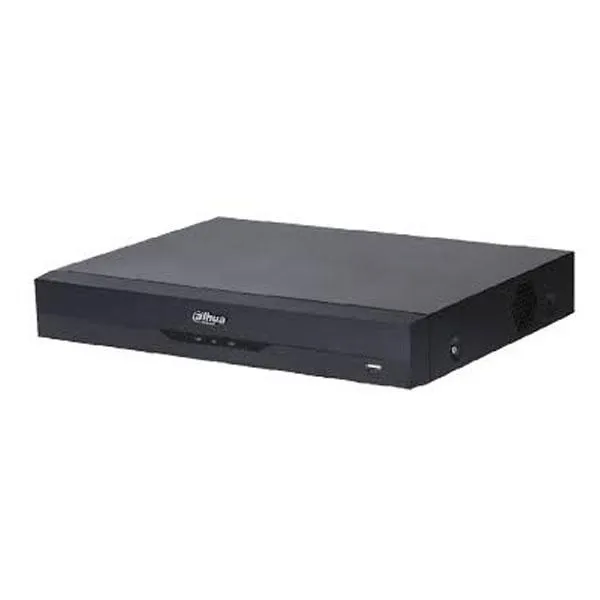

Dahua XVR5208AN4KLI38P 8 Channel Penta brid 4K Value 5MP 1U 2HDDs WizSense Digital Video Recorder
8-channel SMD Plus for analog channels or 16-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 16-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
All the channels support PoC AT and PoC AF cameras, and the XVR auto recognizes PoC cameras that have different power consumption levels.
- Brand: Dahua
- Product: XVR5208AN-4KL-I3-8P 8CH Penta-brid 4K Value/5MP 1U 2HDDs WizSense Digital Video Recorder
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 16 channels
- AI Video Quality Analytics by Recorder 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <10 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 334.4 mm × 53.0 mm
- Weight: 1.60 kg (3.53 lb)
Dahua XVR5216AN4KLI316P 16 Channel Penta brid 4K Value 5MP 1U 2HDDs WizSense Digital Video Recorder
16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
All the channels support PoC AT and PoC AF cameras, and the XVR auto recognizes PoC cameras that have different power consumption levels.
- Brand: Dahua
- Product: XVR5216AN-4KL-I3-16P 16CH Penta-brid 4K Value/5MP 1U 2HDDs WizSense Digital Video Recorder
- SMD Plus by Recorder: 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 32 channels
- AI Video Quality Analytics by Recorder 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 16-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <15 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 334.4 mm × 53.0 mm
- Weight: 1.80 kg (3.97 lb)
Dahua XVR1B16HI 16 Channel Penta brid 5MP Value 1080P Compact 1U 1HDD WizSense Digital Video Recorder
16-channel SMD Plus for analog channels or 24-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 24-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR1B16H-I 16CH Penta-brid 5MP Value/1080P Compact 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 24 channels
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 16-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <12 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 260.0 mm × 231.4 mm × 47.6 mm
- Weight: 0.93 kg (2.05 lb)
Dahua XVR1B04I 4 Channel Penta brid 1080N 720P Cooper 1U 1HDD WizSense Digital Video Recorder
4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 5-channel IP camera input and each channel can be up to 2 MP. The incoming bandwidth reaches 20 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR1B04-I 4CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–4096 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <7 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 197.0 mm × 203.1 mm × 41.5 mm
- Weight: 0.55 kg (1.19 lb)
Dahua XVR1B08I 8 Channel Penta brid 1080N 720P Cooper 1U 1HDD WizSense Digital Video Recorder
4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 10-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 40 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR1B08-I 8CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–4096 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <7 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 197.0 mm × 203.1 mm × 41.5 mm
- Weight: 0.56 kg (1.24 lb)
Dahua XVR1B08HI 8 Channel Penta brid 5MP Value 1080P Cooper 1U 1HDD WizSense Digital Video Recorder
8-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR1B08H-I 8CH Penta-brid 5MP Value/1080P Cooper 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder:8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <7 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 197.0 mm × 203.1 mm × 41.5 mm
- Weight: 0.57 kg (1.26 lb)
Dahua XVR1B04HI 4 Channel Penta brid 5MP Value 1080P Cooper 1U 1HDD WizSense Digital Video Recorder
4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 6-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 32 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR1B04H-I 4CH Penta-brid 5MP Value/1080P Cooper 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder:4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–4096 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <4 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 197.0 mm × 203.1 mm × 41.5 mm
- Weight: 0.55 kg (1.21 lb)
Dahua XVR1B16I 16 Channel Penta brid 1080N 720P Compact 1U 1HDD WizSense Digital Video Recorder
8-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 18-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR1B16-I 16CH Penta-brid 1080N/720P Compact 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–4096 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 16-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <10 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 260.0 mm × 229.6 mm × 47.6 mm
- Weight: 0.89 kg (1.96 lb)
Dahua XVR4232ANI 32 Channel Penta brid 1080N 720P 1U 2HDDs WizSense Digital Video Recorder
32-channel SMD Plus for analog channels or 36-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 20-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR4232AN-I 32CH Penta-brid 1080N/720P 1U 2HDDs WizSense Digital Video Recorder
- SMD Plus by Recorder: 32 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 36 channels
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–4096 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 32-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <12 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 289.6 mm × 53.0 mm
- Weight: 1.92 kg (4.23 lb)
Dahua XVR4216ANI 16 Channel Penta brid 1080N 720P 1U 2HDDs WizSense Digital Video Recorder
8-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 18-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR4216AN-I 16CH Penta-brid 1080N/720P 1U 2HDDs WizSense Digital Video Recorder
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–4096 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 16-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 2.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <10 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 204.6 mm × 210.9 mm × 45.6 mm
- Weight: 1.61 kg (3.55 lb)
Dahua XVR4116HSI 16 Channel Penta brid 1080N 720P Compact 1U 1HDD WizSense Digital Video Recorder
8-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 18-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR4116HS-I 16CH Penta-brid 1080N/720P Compact 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–4096 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 16-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 2.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <10 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 204.6 mm × 210.9 mm × 45.6 mm
- Weight: 1.04 kg (3.00 lb)
Dahua XVR4108HSI 8 Channel Penta brid 1080N 720P Compact 1U 1HDD WizSense Digital Video Recorder
8-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 10-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 32 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR4108HSI 8CH Penta brid 1080N 720P Compact 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- AI Video Quality Analytics by Recorder: 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–4096 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 2.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <7 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 204.6 mm × 210.9 mm × 45.6 mm
- Weight: 0.89 kg (1.96 lb)
Dahua XVR4108CI 8 Channel Penta brid 1080N 720P Smart 1U 1HDD WizSense Digital Video Recorder
8-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 10-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 32 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR4108C-I 8CH Penta-brid 1080N/720P Smart 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- AI Video Quality Analytics by Recorder: 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–4096 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <7 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 204.6 mm × 210.9 mm × 45.6 mm
- Weight: 0.50 kg (1.10 lb)
Dahua XVR4104HSI 4 Channel Penta-brid 1080N 720P Compact 1U 1HDD WizSense Digital Video Recorder
4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 5-channel IP camera input and each channel can be up to 2 MP. The incoming bandwidth reaches 32 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR4104HS-I 4CH Penta-brid 1080N/720P Compact 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- AI Video Quality Analytics by Recorder: 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–4096 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 2.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <4 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 260.0 mm × 237.8 mm × 47.6 mm
- Weight: 0.86 kg (1.90 lb)
Dahua XVR4104CI 4 Channel Penta brid 1080N 720P Smart 1U 1HDD WizSense Digital Video Recorder
4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 5-channel IP camera input and each channel can be up to 2 MP. The incoming bandwidth reaches 32 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR4104C-I 4CH Penta-brid 1080N/720P Smart 1U 1HDD WizSense Digital Video Recorder
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- AI Video Quality Analytics by Recorder: 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–4096 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: <4 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 204.6 mm × 210.9 mm × 45.6 mm
- Weight: 0.47 kg (1.03 lb)
Dahua XVR5104HS5MI3 4 Channel Penta brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
8-channel SMD Plus for analog channels or 12-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5108HS-5M-I3 8CH Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 6 channels
- AI Video Quality Analytics by Recorder: 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 260.0 mm × 237.8 mm × 47.6 mm
- Weight: 0.84 kg (1.85 lb)
Dahua XVR5108HS5MI3 8 Channel Penta brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
8-channel SMD Plus for analog channels or 12-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5108HS-5M-I3 8CH Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 12 channels
- AI Video Quality Analytics by Recorder: 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 8-channel BNC (Coaxial Audio
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 260.0 mm × 237.8 mm × 47.6 mm
- Weight: 0.97 kg (2.14 lb)
Dahua XVR5116HS5MI3 16 Channel Penta brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
16-channel SMD Plus for analog channels or 24-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 24-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5116HS-5M-I3 16CH Penta brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 24 channels
- AI Video Quality Analytics by Recorder: 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 16-channel BNC (Coaxial Audio
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 289.6 mm × 53.0 mm
- Weight: 1.80 kg (3.97 lb)
Dahua XVR5216AN5MI3 16 Channel Penta brid 5MP 1U 2HDDs WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
16-channel SMD Plus for analog channels or 24-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 24-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5216AN-5M-I3 16CH Penta brid 5MP 1U 2HDDs WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 24 channels
- AI Video Quality Analytics by Recorder: 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 16-channel BNC (Coaxial Audio
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 289.6 mm × 53.0 mm
- Weight: 1.80 kg (3.97 lb)
Dahua XVR5232AN5MI3 32 Channel Penta brid 5MP 1U 2HDDs WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
32-channel SMD Plus for analog channels or 48-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 48-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 192 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
IoT and POS capabilities.
- Brand: Dahua
- Product: XVR5232AN-5M-I3 32CH Penta brid 5MP 1U 2HDDs WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 32channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 48 channels
- AI Video Quality Analytics by Recorder: 32 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 32-channel BNC (Coaxial Audio
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 289.6 mm × 53.0 mm
- Weight: 1.90 kg (4.20 lb)
Dahua XVR5104HE4KLI3 4 Channel Penta brid 4K Value 5MP Mini 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
4-channel SMD Plus for analog channels or 8-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 8-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR5104HE-4KL-I3 4CH Penta-brid 4K Value/5MP Mini 1U 1HDD WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 4 channels
- AI Video Quality Analytics by Recorder: 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 4-channel RCA; 4-channel BNC (Coaxial Audio
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Alarm Input: 8 channels
- Alarm Output: 3 channels
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 289.6 mm × 53.0 mm
- Weight: 1.20 kg (2.65 lb)
Dahua XVR5208A4KLI3 8 Channel Penta brid 4K Value 5MP 1U 2HDDs WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
8-channel SMD Plus for analog channels or 16-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 16-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR5208A-4KL-I3 8CH Penta-brid 4K Value/5MP 1U 2HDDs WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 16 channels
- AI Video Quality Analytics by Recorder: 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 4-channel RCA; 8-channel BNC (Coaxial Audio
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Alarm Input: 8 channels
- Alarm Output: 3 channels
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 289.6 mm × 53.0 mm
- Weight: 1.60 kg (3.53 lb)
Dahua XVR5208AN4KLI3 8 Channel Penta brid 4K Value 5MP 1U 2HDDs WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
8-channel SMD Plus for analog channels or 16-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 16-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
- Brand: Dahua
- Product: XVR5208AN-4KL-I3 8CH Penta-brid 4K Value/5MP 1U 2HDDs WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 16 channels
- AI Video Quality Analytics by Recorder: 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 8-channel BNC (Coaxial Audio
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 289.6 mm × 53.0 mm
- Weight: 1.60 kg (3.53 lb)
Dahua XVR5216AN4KLI3 16 Channel Penta brid 4K Value 5MP 1U 2HDDs WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
- Brand: Dahua
- Product: XVR5216AN-4KL-I3 16CH Penta-brid 4K Value/5MP 1U 2HDDs WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 32 channels
- AI Video Quality Analytics by Recorder: 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 16-channel BNC (Coaxial Audio
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 289.6 mm × 53.0 mm
- Weight: 1.80 kg (3.97 lb)
Dahua XVR5116H4KLI3 16 Channel Penta brid 4K Value 5MP Mini 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
- Brand: Dahua
- Product: XVR5116H-4KL-I3 16CH Penta-brid 4K Value/5MP Mini 1U 1HDD WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 32 channels
- AI Video Quality Analytics by Recorder: 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 16-channel BNC (Coaxial Audio
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Alarm Input: 16 channels
- Alarm Output: 3 channels
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 257.1 mm × 55.0 mm
- Weight: 1.30 kg (2.87 lb)
Dahua XVR5116HE4KLI3 16 Channel Penta brid 4K Value 5MP Mini 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR5116HE-4KL-I3 16CH Penta-brid 4K Value/5MP Mini 1U 1HDD WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 32 channels
- AI Video Quality Analytics by Recorder: 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 16-channel RCA; 16-channel BNC (Coaxial Audio
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Alarm Input: 16 channels
- Alarm Output: 3 channels
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 257.1 mm × 55.0 mm
- Weight: 1.50 kg (3.31 lb)
Dahua XVR5104H4KLI3 4 Channel Penta brid 4K Value 5MP Mini 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
4-channel SMD Plus for analog channels or 8-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 8-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR5104H-4KL-I3 4CH Penta-brid 4K Value/5MP Mini 1U 1HDD WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 8 channels
- AI Video Quality Analytics by Recorder: 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 257.1 mm × 55.0 mm
- Weight: 1.16 kg (2.56 lb)
Dahua XVR5108H4KLI3 8 Channel Penta brid 4K Value 5MP Mini 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
8-channel SMD Plus for analog channels or 16-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 16-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR5108H-4KL-I3 8CH Penta-brid 4K Value/5MP Mini 1U 1HDD WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 16 channels
- AI Video Quality Analytics by Recorder: 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 8-channel BNC (Coaxial Audio
- Audio Output: 1-channel RCA
- Two-way Talk: 1-channel
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 257.1 mm × 55.0 mm
- Weight: 1.20 kg (2.65 lb)
Dahua XVR5108HE4KLI3 8 Channel Penta brid 4K Value 5MP Mini 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
8-channel SMD Plus for analog channels or 16-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 16-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR5108HE-4KL-I3 8CH Penta-brid 4K Value/5MP Mini 1U 1HDD WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 16 channels
- AI Video Quality Analytics by Recorder: 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 8-channel RCA; 8-channel BNC (Coaxial Audio
- Audio Output: 1-channel BNC
- Two-way Talk: 1-channel BNC
- Alarm Input: 8 channels
- Alarm Output: 3 channels
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 3.0 port) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 257.1 mm × 55.0 mm
- Weight: 1.20 kg (2.65 lb)
Dahua XVR5216A4KLI3 16 Channel Penta brid 4K Value 5MP 1U 2HDDs WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR5216A-4KL-I3 16CH Penta-brid 4K Value/5MP 1U 2HDDs WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 32 channels
- AI Video Quality Analytics by Recorder: 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio
- Audio Output: 1-channel BNC
- Two-way Talk: 1-channel BNC
- Alarm Input: 16 channels
- Alarm Output: 6 channels
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 204.6 mm × 210.9 mm × 45.6 mm
- Weight: 0.56 kg (1.24 lb)
Dahua XVR5104C4KLI3 4 Channel Penta brid 4K Value 5MP Smart 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
4-channel SMD Plus for analog channels or 8-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 8-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 64 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR5104C-4KL-I3 4CH Penta-brid 4K Value 5MP Smart 1U 1HDD WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 8 channels
- AI Video Quality Analytics by Recorder: 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 4-channel RCA;16-channel BNC (Coaxial Audio
- Audio Output: 1-channel BNC
- Two-way Talk: 1-channel BNC
- Alarm Input: 16 channels
- Alarm Output: 3 channels
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (2 rear USB 2.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 204.6 mm × 210.9 mm × 45.6 mm
- Weight: 0.56 kg (1.24 lb)
Dahua XVR7104H4KI3 4 Channel Penta brid 4K Mini 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
4-channel SMD Plus for analog channels or 8-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 8-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR7104H-4K-I3 4CH Penta-brid 4K Mini 1U 1HDD WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 8 channels
- AI Video Quality Analytics by Recorder: 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–8192 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 4-channel BNC (Coaxial Audio
- Audio Output: 1-channel BNC
- Two-way Talk: 1-channel BNC
- Alarm Input: 16 channels
- Alarm Output: 6 channels
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 2 rear USB 3.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 254.3 mm × 55.0 mm
- Weight: 1.00 kg (2.21 lb)
Dahua XVR7416L4KI3 16 Channel Penta brid 4K 4HDDs WizSense Digital Video Recorder
6-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
12-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
6-channel face recognition for analog channels which supports face comparison.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 32-channel IP camera input and each channel can be up to 12 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and Smart H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR7416L-4K-I3 16CH Penta-brid 4K 1.5U 4HDDs WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 6 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 32 channels
- AI Video Quality Analytics by Recorder: 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–8192 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 4-channel RCA; 16-channel BNC (Coaxial Audio
- Audio Output: 1-channel BNC
- Two-way Talk: 1-channel BNC
- Alarm Input: 16 channels
- Alarm Output: 6 channels
- Disk Interface: 4 SATA ports. Each disk can contain up to 16 TB
- USB Port: 3 X (1 front USB 2.0 port, 2 rear USB 3.0 ports) 2 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 440.0 mm × 415.7 mm × 76.0 mm
- Weight: 4.9 kg (10.80 lb)
Dahua XVR7816S4KI3 16 Channel Penta brid 4K 2U 8HDDs WizSense Digital Video Recorder
6-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
12-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
6-channel face recognition for analog channels which supports face comparison.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 32-channel IP camera input and each channel can be up to 12 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and Smart H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR7816S-4K-I3 16CH Penta-brid 4K 2U 8HDDs WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 6 channels(up to 12 face images/s each channel)
- SMD Plus by Recorder: 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 32 channels
- AI Video Quality Analytics by Recorder: 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–8192 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 16-channel RCA; 16-channel BNC (Coaxial Audio
- Audio Output: 1-channel BNC
- Two-way Talk: 1-channel BNC
- Alarm Input: 16 channels
- Alarm Output: 6 channels
- Disk Interface: 8 SATA ports. Each disk can contain up to 16 TB
- USB Port: 4 X (1 front USB 2.0 port, 2 rear USB 3.0 ports) 2 x HDMI; 1 X VGA
- Network Port: 2 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 100–240 VAC, 50±2% Hz
- Power Consumption: 30 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 440.0 mm × 455.6 mm × 94.9 mm
- Weight: 6.9 kg (15.21 lb)
Dahua XVR7104HE4KI3 4 Channel Penta brid 4K Mini 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
4-channel SMD Plus for analog channels or 8-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 8-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR7104HE-4K-I3 4CH Penta-brid 4K Mini 1U 1HDD WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- Face Database Capacity: Up to 10 face databases with 20,000 images.
- Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels
- SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera:8 channels
- AI Video Quality Analytics by Recorder: 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–8192 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 4-channel RCA; 4-channel BNC (Coaxial Audio
- Audio Output: 1-channel BNC
- Two-way Talk: 1-channel BNC
- Alarm Input: 8 channels
- Alarm Output: 3 channels
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 2 rear USB 3.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 12 VDC, 2 A
- Power Consumption: 10 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 254.3 mm × 55.0 mm
- Weight: 1.20 kg (2.65 lb)
Dahua XVR7108HE4KI3 8 Channel Penta brid 4K Mini 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
8-channel SMD Plus for analog channels or 16-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 16-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR7108HE-4K-I3 8CH Penta-brid 4K Mini 1U 1HDD WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- Face Database Capacity: Up to 10 face databases with 20,000 images.
- Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera:16 channels
- AI Video Quality Analytics by Recorder: 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–8192 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 8-channel RCA; 8-channel BNC (Coaxial Audio
- Audio Output: 1-channel BNC
- Two-way Talk: 1-channel BNC
- Alarm Input: 8 channels
- Alarm Output: 3 channels
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 2 rear USB 3.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 12 VDC, 3 A
- Power Consumption: 32 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 254.3 mm × 55.0 mm
- Weight: 1.40 kg (3.09 lb)
Dahua XVR7108H4KI3 8 Channel Penta brid 4K Mini 1U 1HDD WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
8-channel SMD Plus for analog channels or 16-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 16-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR7108H-4K-I3 8CH Penta brid 4K Mini 1U 1HDD WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- Face Database Capacity: Up to 10 face databases with 20,000 images.
- Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera:16 channels
- AI Video Quality Analytics by Recorder: 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–8192 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 8-channel BNC (Coaxial Audio
- Audio Output: 1-channel BNC
- Two-way Talk: 1-channel BNC
- Alarm Input: 8 channels
- Alarm Output: 3 channels
- Disk Interface: 1 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 2 rear USB 3.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 12 VDC, 3 A
- Power Consumption: 32 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 325.0 mm × 254.3 mm × 55.0 mm
- Weight: 1.00 kg (2.21 lb)
Dahua XVR7208A4KI3 8 Channel Penta brid 4K 1U 2HDDs WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
8-channel SMD Plus for analog channels or 16-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 16-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR7208A-4K-I3 8CH Penta-brid 4K 1U 2HDDs WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- Face Database Capacity: Up to 10 face databases with 20,000 images.
- Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels
- SMD Plus by Recorder: 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 32 channels
- AI Video Quality Analytics by Recorder: 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–8192 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 4-channel RCA; 8-channel BNC (Coaxial Audio
- Audio Output: 1-channel BNC
- Two-way Talk: 1-channel BNC
- Alarm Input: 8 channels
- Alarm Output: 3 channels (5-channel relay output, 1-channel 12 V 1 A output?
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 2 rear USB 3.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 12 VDC, 5 A
- Power Consumption: 32 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 332.0 mm × 53.0 mm
- Weight: 2.40 kg (5.30 lb)
Dahua XVR7216AN4KI3 16 Channel Penta brid 4K 1U 2HDDs WizSense Digital Video Recorder
6-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
12-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
6-channel face recognition for analog channels which supports face comparison.
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and Smart H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR7216AN-4K-I3 16CH Penta-brid 4K 1U 2HDDs WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- Face Database Capacity: Up to 10 face databases with 20,000 images.
- Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels
- SMD Plus by Recorder: 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 32 channels
- AI Video Quality Analytics by Recorder: 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–8192 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 1-channel RCA; 16-channel BNC (Coaxial Audio
- Audio Output: 1-channel BNC
- Two-way Talk: 1-channel BNC
- Alarm Input: 16 channels
- Alarm Output: 6 channels (5-channel relay output, 1-channel 12 V 1 A output?
- Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB
- USB Port: 2 X (1 front USB 2.0 port, 2 rear USB 3.0 ports) 1 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: 12 VDC, 5 A
- Power Consumption: 32 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 375.0 mm × 332.0 mm × 53.0 mm
- Weight: 2.40 kg (5.30 lb)
Dahua XVR7408L4KI3 8 Channel Penta brid 4K 4HDDs WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
8-channel SMD Plus for analog channels or 16-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 16-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR7408L-4K-I3 8CH Penta-brid 4K 1.5U 4HDDs WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- Face Database Capacity: Up to 10 face databases with 20,000 images.
- Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 16 channels
- AI Video Quality Analytics by Recorder: 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Bit Rate: 32 kbps–8192 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 2 HDMI, 1 VGA, 1 CVBS; HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multiscreen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 4-channel BNC; 8-channel BNC (Coaxial Audio
- Audio Output: 1-channel BNC
- Two-way Talk: 1-channel BNC
- Alarm Input: 16 channels
- Alarm Output: 6 channels (5-channel relay output, 1-channel 12 V 1 A output?
- Disk Interface: 4 SATA ports. Each disk can contain up to 16 TB
- USB Port: 3 X (1 front USB 2.0 port, 2 rear USB 3.0 ports) 2 x HDMI; 1 X VGA
- Network Port: 1 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: AC100V?AC240V 50±2%Hz
- Power Consumption: 20 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 440.0 mm × 415.7 mm × 76.0 mm
- Weight: 4.70 kg (10.37 lb)
Dahua XVR7808S4KI3 8 Channel Penta brid 4K 2U 8HDDs WizSense Digital Video Recorder
2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
8-channel SMD Plus for analog channels or 16-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
2-channel face recognition for analog channels which supports face comparison.
8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
Supports HDCVI, AHD, TVI, CVBS and IP video input.
Supports up to 16-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
Smart H.265+ and H.265 dual-stream video compression.
- Brand: Dahua
- Product: XVR7808S-4K-I3 8CH Penta-brid 4K 2U 8HDDs WizSense Digital Video Recorder
- Face Attributes: 6 attributes
- Face Detection Performance of AI by Recorder : 2 channels(up to 12 face images/s each channel)
- Face Database Capacity: Up to 10 face databases with 20,000 images.
- Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels
- SMD Plus by Recorder: 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: 16 channels
- AI Video Quality Analytics by Recorder: 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Video Input: Supports HDCVI, AHD, TVI, CVBS and IP video input
- Audio Compression: G.711a; G.711u; PCM
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access: iOS; Android
- Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
- Browser: Chrome; IE; Safari; Edge; Firefox
- CVBS Output: 1 channel
- Audio Input: 8-channel BNC; 8-channel BNC (Coaxial Audio
- Audio Output: 1-channel BNC
- Two-way Talk: 1-channel BNC
- Alarm Input: 16 channels
- Alarm Output: 6 channels (5-channel relay output, 1-channel 12 V 1 A output?
- Disk Interface: 8 SATA ports. Each disk can contain up to 16 TB
- USB Port: 4 X (1 front USB 2.0 port, 2 rear USB 3.0 ports) 2 x HDMI; 1 X VGA
- Network Port: 2 X (10/100/1000 Mbps Ethernet port, RJ-45
- Power Supply: AC100V?AC240V 50±2%Hz
- Power Consumption: 20 W (without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions(W × D × H): 440.0 mm × 455.6 mm × 94.9 mm
- Weight: 6.80 kg (15.00 lb)
