what is the Purpose of Firewall?
Firewalls are essential components in the world of network security, serving as a protective barrier between trusted internal networks and untrusted external entities. They play a critical role in safeguarding sensitive data and ensuring the integrity of system operations. Here are some key uses of firewalls:
Traffic Monitoring: They analyze incoming and outgoing network traffic, ensuring that only legitimate requests are granted access.Threat Prevention: Firewalls block unauthorized access attempts and prevent various cyber threats such as malware and hacking.Policy Enforcement: They enforce security policies by allowing or denying specific types of traffic based on predetermined security rules.Logging and Reporting: Firewalls maintain detailed logs of activity, which are invaluable for auditing and identifying potential security incidents.
By utilizing firewalls effectively, professionals can significantly enhance their organization’s security posture and protect critical information from potential breaches. How does your organization currently utilize firewalls to contribute to your overall cybersecurity strategy?
Most searchable keywords
fortinet firewall ,fortigate firewall, fortinet fortigate, fortigate 60f, fortinet firewall models, fortigate 100f, fortinet firewall price, next generation firewall, fortigate 200f, fortigate 60e, fortigate 40f, fortigate 70f, fortinet fortigate 60f, fortinet sd wan, fortigate 80f, next gen firewall, sd wan fortinet, fortigate models, sonicwall firewall, best firewall for small business, fortigate ngfw, fortigate 30e, network firewall, fortinet fortigate 40f, fortinet cloud, small business firewall, fortigate sdwan, fortinet small business firewall, firewall solutions, enterprise firewall, fortinet ztna, firewall price, fortinet ngfw, firewall security, virtual firewall, firewall as a service, ngfw firewall, fortinet fortigate 30e, fortinet zero trust, best firewall, business firewall, ng firewall, fortinet products, fortigate 60f price, hardware firewall, fortigate 100f price, sd wan fortigate, fortigate 40f price, fortigate 100e, best firewall for business, fortigate 600f, network firewall security, fortigate 60d, fortinet home firewall, firewall protection, fortinet pricing, firewall appliance, fortinet vpn, fortigate 400f, fortinet fortigate 100f, fortinet security fabric, cloud firewall, cisco firewall, forticlient vpn, firewall device, fire wall, fortigate 200e, virtual firewall appliance, fortinet firewall datasheet, fortigate next generation firewall, fortigate 50e, sonicwall nsa, fortigate sd wan configuration, fortiwifi 40f, utm firewall, fortigate virtual firewall, home firewall, fortigate 200f price, network firewall protection, firewall cost, fortigate 80e, firewall products, firewall software, zero trust fortinet, watchguard firewall, fortinet firewall configuration, fortinet 70f, sonicwall firewall models, firewall software for business, sonicwall tz400, network firewall security price, fortinet support, fortinet download, fortinet switches, fortinet 60e, fortinet cyber security, fortigate sd wan setup, cisco firewall models, cloud based firewall, internet firewall
Fortinet FortiGate 70F Entry Level Firewall
- Brand: Fortinet
- Device Type: Next Generation Firewall (NGFW) and Secure SD-WAN
- Form Factor: Desktop
- Product Description: The FortiGate 70F Series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. It features integrated WiFi-6 (802.11ax) for high-speed wireless connectivity and is designed to provide robust security and networking capabilities.
- Processor: FortiASIC SP5 Security Processing Unit
- Threat protection: 800 Mbps
- Hard Drive: No
- Data Link Protocol: 10 GE RJ45 ports (including 2 WAN ports and 2 FortiLink ports), 2 GE SFP ports (shared with 2 WAN ports)
- Included Accessories: Not specified
- Power Supply: External Power Supply Unit
- Power Redundancy: yes
- Performance:Firewall Throughput: 10.0 Gbps, Threat Protection Throughput: 800 Mbps, IPS Throughput: 1.4 Gbps, Application Control Throughput: 1.8 Gbps, SSL Inspection Throughput: 700 Mbps, VPN Throughput: 6.1 Gbps
- Dimensions (WxDxH): 8.50 x 6.30 x 1.52 inches
- Weight: 1.01 kg
- Bundled Services: FortiGuard Bundles (Advanced Threat Protection, Unified Threat Protection, Enterprise Protection) and FortiCare Premium Support,The FortiGate 70F delivers robust security and networking capabilities for enterprise branch offices and mid-sized businesses, leveraging Fortinet's patented SoC processors and AI/ML-powered FortiGuard services
Fortinet FortiGate 80F Entry Level Firewall
- Brand: Fortinet
- Device Type: Next Generation Firewall (NGFW) and Secure SD-WAN
- Form Factor: Desktop
- Product Description: The FortiGate 80F Series provides an application-centric, scalable, and secure SD-WAN solution in a compact, fanless, desktop form factor for enterprise branch offices and midsized businesses. It features integrated WiFi-6 (802.11ax) for high-speed wireless connectivity.
- Processor: FortiASIC SP5 Security Processing Unit
- Threat protection: 900 Mbps
- Hard Drive: 1x 128 GB SSD
- Data Link Protocol: 10 GE RJ45 ports (including 2 WAN ports and 2 FortiLink ports), 2 GE SFP ports (shared with 2 WAN ports)
- Included Accessories: Not specified
- Power Supply: External Power Supply Unit
- Power Redundancy: Not specified
- Performance: IPS Throughput: 1.4 Gbps, NGFW Throughput: 1 Gbps, Threat Protection Throughput: 900 Mbps
- Dimensions (WxDxH): 8.50 x 7.01 x 2.36 inches
- Weight: 1.40 kg
- Bundled Services: FortiCare Premium Support and FortiGuard Unified Threat Protection (UTP) or Enterprise Protection (EP) bundles with AI-powered security services,The FortiGate 80F delivers robust security and networking capabilities for enterprise branch offices and midsized businesses, with integrated WiFi-6 and a co
Fortinet FortiGate 90G Entry Level Firewall
- Brand: Fortinet
- Device Type: Next Generation Firewall (NGFW) and Secure SD-WAN
- Form Factor: Desktop
- Product Description: The FortiGate 90G Series combines next-generation firewall and SD-WAN capabilities for distributed enterprises. It delivers consolidated security and networking functionality with various connectivity options and industry-leading performance in a compact form factor.
- Processor: FortiASIC SP5 Security Processing Unit
- Threat protection: 2.2 Gbps
- Hard Drive: Not specified
- Data Link Protocol: 4 x GE RJ45 ports, 2 x GE SFP slots, 2 x 10GE SFP+ slots, 2.5GE and 5GE ports
- Included Accessories: Not specified
- Power Supply: Internal Power Supply Unit
- Power Redundancy: Not specified
- Performance: Firewall Throughput: 20 Gbps, NGFW Throughput: 2.6 Gbps, Threat Protection Throughput: 1.6 Gbps, IPS Throughput: 1 Gbps, SSL-VPN Throughput: 750 Mbps, SSL Inspection Throughput: 500 Mbps, Application Control Throughput: 135,000, CAPWAP Throughput: 15 Gbps
- Dimensions (WxDxH): 1.65 x 8.5 x 7.0
- Weight: 2.72 kg
- Bundled Services: FortiCare Premium Support and FortiGuard Unified Threat Protection (UTP) Bundle with AI-powered security services, The FortiGate 90G delivers robust security and networking capabilities for distributed enterprises, leveraging Fortinet's patented SP5 ASIC and AI-powered FortiGuard services
Fortinet FortiGate 120G Mid Range Firewall
- Brand: Fortinet
- Device Type: Next Generation Firewall (NGFW) and Secure SD-WAN
- Form Factor: 1U rack-mountable
- Product Description: The FortiGate 120G Series is a high-performance security appliance designed for modern campus environments, providing comprehensive security and networking capabilities with AI-powered FortiGuard Security Services and 5GE ports for Wi-Fi 7 wireless standard.
- Processor: SP5 Security Processing Unit
- Threat protection: 2.8 Gbps
- Hard Drive: 1x 480 GB SSD
- Data Link Protocol: 18 GE RJ45 ports (including 1 management port and 1 HA port, alongside 16 switch ports), 8 GE SFP slots, 4 10GE SFP+ slots
- Included Accessories: CD
- Power Supply: Dual non-hot swappable AC power supplies
- Power Redundancy: Yes
- Performance: Firewall Throughput: 39 Gbps, NGFW Throughput: 3.1 Gbps, Threat Protection Throughput: 2.8 Gbps, IPS Throughput: 5.3 Gbps, VPN Throughput: 35 Gbps, SSL-VPN Throughput: 6.1 Gbps, SSL Inspection Throughput: 3 Gbps, Application Control Throughput: 2.13 Gbps, CAPWAP Throughput: 20 Gbps
- Dimensions (WxDxH): 1.73 x 17 x 10 inches
- Weight: 5.52 kg
- Bundled Services: FortiCare Premium and FortiGuard Unified Threat Protection (UTP), The FortiGate 120G is designed to provide robust security and networking capabilities for modern campus environments, leveraging Fortinet's patented SP5 processor and AI-powered FortiGuard services
Fortinet FortiGate 200F Mid Range Firewall
- Brand: Fortinet
- Device Type: Next Generation Firewall (NGFW)
- Form Factor: 1U rack-mountable
- Product Description: The FortiGate 200F Series is a high-performance security appliance designed for modern campus environments, providing comprehensive security and networking capabilities with AI-powered FortiGuard Security Services and 5GE ports for Wi-Fi 7 wireless standard.
- Processor: SP5 Security Processing Unit
- Threat protection: 3 Gbps
- Hard Drive: 1x 480 GB SSD
- Data Link Protocol: 2 x GE RJ45 HA/MGMT Ports, 16 x GE RJ45 Ports, 2 x 10 GE SFP+ Slots, 2 x 10 GE SFP+ FortiLink Slots, 8 x GE SFP Slots
- Included Accessories: Not specified
- Power Supply: Dual non-hot swappable AC Power Supplies
- Power Redundancy: Yes
- Performance: Firewall Throughput: 27 Gbps, NGFW Throughput: 3.5 Gbps, Threat Protection Throughput: 3 Gbps, IPS Throughput: 5 Gbps, IPsec VPN Throughput: 13 Gbps, SSL-VPN Throughput: 2 Gbps, SSL Inspection Throughput: 3.4 Gbps, Application Control Throughput: 2.13 Gbps, CAPWAP Throughput: 20 Gbps
- Dimensions (WxDxH): 1.73 x 17.01 x 13.47 inches
- Weight:4.6 kg
- Bundled Services: FortiGuard AI-Powered Security Services, including inline advanced malware prevention, DNS filtering, data loss prevention, and attack surface management
Fortinet FortiGate 200G Mid Range Firewall
- Brand: Fortinet
- Device Type: Next Generation Firewall (NGFW)
- Form Factor: 1U rack-mountable
- Product Description: The FortiGate 200G Series combines AI-powered security and machine learning to deliver Threat Protection at any scale, providing deep visibility into networks and securing applications, users, and devices with advanced edge protection and secure SD-WAN capabilities.
- Processor: NP7Lite (SP5) Security Processing Unit
- Threat protection: 6.4 Gbps
- Hard Drive: No onboard storage; supports external storage
- Data Link Protocol: 10 x GE RJ45 ports, 4 x GE SFP slots, 8 x 5/2.5/GE RJ45 ports, 8 x 10/GE SFP+/SFP slots
- Included Accessories: Not specified
- Power Supply: Dual non-swappable AC Power Supplies
- Power Redundancy: Yes
- Performance: Firewall Throughput: 39 Gbps, NGFW Throughput: 7 Gbps, Threat Protection Throughput: 6.4 Gbps, IPS Throughput: 8 Gbps, VPN Throughput: 35 Gbps
- Dimensions (WxDxH): 1.73 x 17.01 x 13.47 inches
- Weight: 4.6 kg
- Bundled Services: AI-powered FortiGuard Services, deep visibility into applications, users, and devices, and integrated Fortinet Security Fabric platform for secure networking at any scale
Fortinet FortiGate 400F Mid Range Firewall
- Brand: Fortinet
- Device Type: Next Generation Firewall (NGFW), Secure SD-WAN
- Form Factor: 1 RU rack-mountable
- Product Description: A high-performance security appliance designed for mid-sized to large enterprises, providing comprehensive security and networking capabilities with AI/ML-powered FortiGuard services.
- Threat protection: 9 Gbps
- Processor: SPU /vSPU processors
- Hard Drive: No onboard storage; supports external storage
- Data Link Protocol: 16 x GE RJ45 ports, 8 x GE SFP slots, 4 x 10GE SFP+ slots, 4 x 10GE SFP+ Ultra Low Latency slots
- Included Accessories: 2x SFP transceivers
- Power Supply: Dual hot-swappable power supplies (AC, 100–240VAC, 50/60 Hz)
- Power Redundancy: Yes
- Performance: IPS Throughput: 12 Gbps, NGFW Throughput: 10 Gbps, Threat Protection Throughput: 9 Gbps, IPv4 Firewall Throughput: 79.5 Gbps, IPv6 Firewall Throughput: 79.5 Gbps, Firewall Latency: 4.19 ?s / 2.5 ?s*, Firewall Throughput (Packet per Second): 105 Mpps, Concurrent Sessions (TCP): 7.8 Million, New Sessions/Second (TCP): 500 000, Firewall Policies: 10 000, IPsec VPN Throughput: 55 Gbps, SSL-VPN Throughput: 3.6 Gbps, SSL Inspection Throughput: 8 Gbps, Application Control Throughput: 28 Gbps, CAPWAP Throughput: 65 Gbps
- Dimensions (WxDxH): 1.75 x 17.0 x 15.0 inches
- Weight: 6.5 kg
- Bundled Services: FortiCare Essentials, FortiCare Premium, FortiCare Elite, FortiGuard Security Services, and FortiConverter Service, The FortiGate 400F is designed to provide robust security and networking capabilities for mid-sized to large enterprise deployments, leveraging Fortinet's patented /SPU / vSPU processors and AI/ML-powered FortiGuard services
Fortinet FortiGate 600F Mid Range Firewall
- Brand: Fortinet
- Device Type: Next Generation Firewall (NGFW)
- Form Factor: 1RU rack-mountable
- Product Description: A high-performance security appliance designed for large enterprises and data centers, providing comprehensive security and networking capabilities.
- Processor: SPU vSPU processors
- Threat protection: 20 Gbps
- Hard Drive: No onboard storage; supports external storage
- Data Link Protocol: 25 GE SFP28, 10 GE SFP+, GE SFP, and GE RJ45
- Included Accessories: 2x SFP transceivers
- Power Supply: Dual hot-swappable power supplies (AC, 100–240VAC, 50/60 Hz)
- Power Redundancy: Yes
- Performance: IPS throughput: 26 Gbps, NGFW throughput: 22 Gbps, Threat Protection throughput: 20 Gbps
- Dimensions (WxDxH): 1.5 x 17.0 x 15.0 inches
- Weight: 7.5 kg
- Bundled Services: FortiGuard AI/ML-powered security services,The FortiGate 900G is designed to provide robust security and networking capabilities for large-scale enterprise and data center deployments, leveraging Fortinet's patented /SPU / vSPU processors and AI/ML-powered FortiGuard services
Fortinet FortiGate 900G Mid Range Firewall
- Brand: Fortinet
- Device Type: Next Generation Firewall (NGFW)
- Form Factor: 1RU rack-mountable
- Product Description: A high-performance security appliance designed for large enterprises and data centers, providing comprehensive security and networking capabilities.
- Processor: SPU vSPU processors
- Threat protection: 20 Gbps
- Hard Drive: No onboard storage; supports external storage
- Data Link Protocol: 25 GE SFP28, 10 GE SFP+, GE SFP, and GE RJ45
- Included Accessories: 2x SFP transceivers
- Power Supply: Dual hot-swappable power supplies (AC, 100–240VAC, 50/60 Hz)
- Power Redundancy: Yes
- Performance: IPS throughput: 26 Gbps, NGFW throughput: 22 Gbps, Threat Protection throughput: 20 Gbps
- Dimensions (WxDxH): 1.5 x 17.0 x 15.0 inches
- Weight: 7.5 kg
- Bundled Services: FortiGuard AI/ML-powered security services,The FortiGate 900G is designed to provide robust security and networking capabilities for large-scale enterprise and data center deployments, leveraging Fortinet's patented /SPU / vSPU processors and AI/ML-powered FortiGuard services
Fortinet FortiGate 1000F High End Firewall
- Brand: Fortinet
- Device Type: Security appliance, Next Generation Firewall (NGFW)
- Form Factor: 2RU Rackmount 8-slot chassis
- Product Description: Enables building security-driven networks with deep integration into data centers and hybrid IT architectures. Powered by AI/ML-based FortiGuard services and the Fortinet Security Fabric platform for automated threat protection.
- Processor: Dedicated security processors (SPU)
- Threat protection: 13 Gbps
- Hard Drive: 2x 480 GB SSD (FG-1001F model only)
- Data Link Protocol: 100 Gigabit Ethernet, 40 GE, 25 GE, 10 GE, 5 GE, 2.5 GE, GE
- Included Accessories: 2x SFP transceivers
- Power Supply: Dual hot-swappable power supplies
- Power Redundancy: Yes
- Performance: Firewall throughput: 20 Gbps, IPS throughput: 19 Gbps, NGFW throughput: 15 Gbps, Threat Protection throughput: 13 Gbps
- Dimensions (WxDxH): 17.4 x 17.6 x 3.5 inches
- Weight: 9.95 Kg
- Bundled Services: FortiGuard AI/ML-powered security services, The FortiGate 1000F delivers high-performance security with flexible 100 GE connectivity options and hardware acceleration for demanding data center and enterprise edge deployments
Fortinet FortiGate 1800F High End Firewall
- Brand: Fortinet
- Device Type: Next Generation Firewall (NGFW)
- Form Factor: 2RU Rackmount 8-slot chassis
- Product Description: High-performance NGFW for large enterprises and service providers, delivering advanced threat protection and SSL inspection capabilities.
- Processor: SPU NP7 and CP9 accelerated
- Threat protection: 15 Gbps
- Hard Drive: 2x 1TB on board SSD storage (for FortiGate 1801F models)
- Data Link Protocol: Multiple GE RJ45, 25 GE SFP28 / 10 GE SFP+ / GE SFP, and 40 GE QSFP+ slots
- Included Accessories: None specified
- Power Supply: Dual AC power supplies (for FG-1800F models), dual DC power supplies (for FG-1800F-DC and FG-1801F-DC models)
- Power Redundancy: Yes, for all models
- Performance: IPsec VPN performance: up to 198 Gbps, IPS performance: up to 17 Gbps, SSL Inspection performance: up to 11 Gbps, NGFW performance: up to 9.1 Gbps
- Dimensions (WxDxH): 3.5 in x 17.25 in x 21.1 inches
- Weight: 13.7 kg
- Bundled Services: FortiCare Premium and FortiGuard Enterprise Protection (available with various term options)
Fortinet FortiGate 2600F High End Firewall
- Brand: Fortinet
- Device Type: Next Generation Firewall (NGFW)
- Form Factor: 2RU Rackmount 8-slot chassis
- Product Description: The FortiGate 2600F is a high-performance next-generation firewall designed to provide best-in-class security and performance for large enterprises and service providers. It is powered by AI/ML-based FortiGuard Services and an integrated security fabric platform, enabling coordinated, automated, end-to-end threat protection across all use cases.
- Processor: SPU NP7 and CP9 hardware accelerated
- Threat protection: 25 Gbps
- Hard Drive: 2TB onboard storage (for the FG-2601F model)
- Data Link Protocol: Multiple GE RJ45, 25 GE SFP28 / 10 GE SFP+ / GE SFP, and 100 GE QSFP28 / 40 GE QSFP+ slots
- Included Accessories: None specified
- Power Supply: Dual AC power supplies
- Power Redundancy: Yes, dual AC power supplies provide redundancy
- Performance: Firewall: 31 Gbps, NGFW: 27 Gbps, Threat Protection: 25 Gbps
- Dimensions (WxDxH): 3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm)
- Weight: 14.0 kg
- Bundled Services: FortiCare Premium, FortiGuard Enterprise Protection, FortiGuard Unified Threat Protection (UTP),These specifications are based on the data sheets from AVFirewalls.com and Fortinet
Fortinet FortiGate 3000F High End Firewall
- Brand:: Fortinet
- Device Type:: Firewall
- Form Factor: 2RU Rackmount 8-slot chassis
- Product Description: High-performance next generation firewall (NGFW) for large enterprises and service providers
- Processor: SPU NP7 and CP9 hardware accelerated processors
- Threat protection: 33 Gbps
- Hard Drive: FG-3001F model includes 2x 1TB SSD
- Data Link Protocol: Supports various data link protocols including 100 GE, 40 GE, 25 GE, 10 GE, and GE
- Included Accessories: 2x SFP+ (SR 10 GE) transceivers included
- Power Supply: Dual AC power supplies
- Power Redundancy: Yes, with dual redundant power supplies
- Performance: Firewall Throughput: 397 Gbps IPS Throughput: 236 Gbps, NGFW Throughput: 234 Gbps Threat Protection Throughput: 233 Gbps
- Dimensions (WxDxH): 17.44 x 21.89 x 3.5 inches
- Weight: 16.9 kg
- Bundled Services: FortiGuard security subscription services available, FortiCare premium support services available
Fortinet FortiGate 3200F High End Firewall
- Brand: Fortinet
- Device Type: Firewall
- Form Factor: 2RU Rackmount 8-slot chassis
- Product Description: High-performance security appliance for data centers and hybrid IT environments
- Processor: Two NP7 processors (NP#0 and NP#1)
- Threat protection: 45 Gbps
- Hard Drive: No specific details on hard drive capacity or type
- Data Link Protocol: Supports various data link protocols, including advanced threat protection, intrusion prevention, application control, web filtering, and more
- Power Supply: 2 AC power supplies
- Power Redundancy: Yes, with dual power supplies for redundancy
- Performance: Threat Protection: 45 Gbps, IPS Throughput: 63 Gbps, NGFW Throughput: 47 Gbps
- Dimensions (WxDxH): 3.5 x 17.44 x 23.9 inche
- Weight:20 kg
- Bundled Services: FortiGuard Security Services for real-time threat intelligence updates, Integrated security fabric architecture for seamless integration with other Fortinet security solutions
Fortinet FortiGate 3500F High End Firewall
- Brand: Fortinet
- Device Type: Network Firewall
- Form Factor: 2RU Rackmount 8-slot chassis
- Product Description: The FortiGate 3500F series delivers high performance next generation firewall (NGFW) capabilities for large enterprises and service providers. With multiple high-speed interfaces, high-port density, and high-throughput, ideal deployments are at the enterprise edge, hybrid data center core, and across internal segments.
- Processor: SPU NP7 and CP9 hardware accelerated
- Threat protection: 63 Gbps
- Hard Drive: Not specified
- Data Link Protocol: 6x 100GE/40GE QSFP28 slots, 32x 25GE/10GE SFP28 slots
- Included Accessories: 2x 10GE RJ45 Management Ports
- Power Supply: 2 AC power supplies
- Power Redundancy: Not specified
- Performance: Firewall Throughput: Up to 600 Gbps
- Dimensions (WxDxH): 17.4 x 21.9 X 3.5
- Weight: 21.30 kg
- Bundled Services:
- Fortinet's Security-Driven Networking approach provides tight integration of the network to security, including application control, SSL inspection, and advanced threat protection
- Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
- Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
- Prevent and detect against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services
Fortinet FortiGate 3700F High End Firewall
- Brand: Fortinet
- Device Type: Network Firewall
- Form Factor: 2RU Rackmount 8-slot chassis
- Product Description: Fortinet FortiGate 3700F - security appliance
- Processor: Fortinet FortiASIC CP9/NP7
- Threat protection: 75 Gbps
- Data Link Protocol:Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet
- Performance: IPS throughput (enterprise traffic mix): 86 Gbps ¦ NGFW throughput (enterprise traffic mix): 80 Gbps ¦ Threat protection throughput (enterprise traffic mix): 75 Gbps ¦ Firewall throughput (1518-byte UDP): 589Gbps ¦ Firewall throughput (512-byte UDP): 589Gbps ¦ Firewall throughput (64-byte UDP): 420 Gbps ¦ IPv6 firewall throughput (1518-byte UDP): 589Gbps ¦ IPv6 firewall throughput (512-byte UDP): 589Gbps ¦ IPv6 firewall throughput (64-byte UDP): 420 Gbps ¦ Firewall latency (64-byte UDP): 3.56µs ¦ Firewall throughput: 630 Mpps ¦ VPN throughput (512-bit IPSec): 160 Gbps ¦ VPN throughput (SSL): 16 Gbps ¦ SSL inspection throughput: 55 Gbps ¦ Application control throughput: 190Gbps ¦ CAPWAP throughput: 65 Gbps
- Capacity: Concurrent TCP sessions: 140000000 ¦ New TCP sessions per second: 930000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSec VPN Tunnels: 40000 ¦ Client to gateway IPSec VPN tunnels: 200000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL inspection CPS: 57000 ¦ SSL inspection concurrent sessions: 15000000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 500 ¦ Number of FortiSwitches: 300 ¦ Number of FortiAP devices: 4096 ¦ Number of FortiAP devices (tunnel): 2048 ¦ Number of FortiToken devices: 20000
- Included Accessories: 2 x SR 10Gbps SFP+ transceivers
- Power:AC 100-240 V (50/60 Hz)
- Power Redundancy: Yes
- Dimensions (WxDxH): 17.4 in x 23.9 in x 3.5 in
- Weight: 21.40 Kg
- Bundled Services: Fortinet's Security-Driven Networking approach provides tight integration of the network to security, including application control, SSL inspection, and advanced threat protection
Fortinet FortiGate 4200F High End Firewall
- Brand: Fortinet
- Device Type: Network Firewall
- Form Factor: 3RU Rackmount 8-slot chassis
- Product Description: The FortiGate 4200F series delivers high performance next generation firewall (NGFW) capabilities with multiple high-speed interfaces, high-port density, and high throughput. It is ideal for deployments at the enterprise edge, hybrid data center core, and across internal segments.
- Processor: SPU NP7 and CP9 hardware accelerated
- Threat protection: 45 Gbps
- Hard Drive: 2x 2TB SSD (included in FG-4201F model)
- Data Link Protocol: Supports multiple GE RJ45, 25 GE SFP28 / 10 GE SFP+ / GE SFP, and 100 GE QSFP28 / 40 GE QSFP+ slots
- Included Accessories: 2 x GE RJ45 Management Ports, USB Port, Console Port
- Power Supply: Internal AC or DC power supplies (2 included)
- Power Redundancy: Supports redundant power supplies
- Performance: Firewall Throughput: 800 Gbps, IPS Throughput: 52 Gbps, NGFW Throughput: 47 Gbps, Threat Protection Throughput: 45 Gbps
- Dimensions (WxDxH): 17.20 x 26.17 x 5.22 inches
- Weight: 59.74 lbs (27.1 kg)
- Bundled Services: Fortinet's Security-Driven Networking approach provides tight integration of the network to security, including application control, SSL inspection, and advanced threat protection
Fortinet FortiGate 4400F High End Firewall
- Brand: Fortinet
- Device Type: Network Security Appliance
- Form Factor: 4 RU Rackmount 8-slot chassis
- Product Description: The FortiGate 4400F Series is a high-performance network firewall designed for security-driven networking and SD-WAN. It features a dedicated module for generating, storing, and authenticating cryptographic keys, and hardware-based security mechanisms to protect against malicious software and phishing attacks.
- Processor: SPU NP7 and CP9 processors
- Threat protection: 75 Gbps
- Hard Drive: 2x 2TB SSD (included)
- Data Link Protocol: Supports multiple GE RJ45, 25 GE SFP28 / 10 GE SFP+ / GE SFP, and 100 GE QSFP28 / 40 GE QSFP+ slots
- Included Accessories: USB Management and Console Port, 2 x GE RJ45 Management Ports, 2 x 25 GE SFP28 / 10 GE SFP+ / GE SFP High Availability Slots, 2 x 25 GE SFP28 / 10 GE SFP+ / GE SFP AUX Slots, 16 x 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots, 12 x 100 GE QSFP28 / 40 GE QSFP+ Slots
- Power Supply: AC Power Supply (2000W) and DC Power Supply (optional)
- Power Redundancy: Supports high availability configurations, including active-active and active-passive clustering
- Performance:IPsec VPN Performance: 1,310 Gbps (512 byte), NGFW Performance: 94 Gbps, Threat Protection Performance: 75 Gbps, SSL Inspection Performance: 3,86 Gbps
- Application Control Performance: 2,140 Gbps, CAPWAP Performance: 63 Gbps
- Concurrent Sessions: 210 Million (TCP), 700 Million * New Sessions/Second (TCP)
- Dimensions (WxDxH): 6.97 x 17.20 x 26.17 inches (177 x 437 x 665 mm)
- Weight: 37.1 kg
- Bundled Services: FortiGuard Services, including AI/ML-based threat protection and Zero Trust Network Access (ZTNA) enforcement.
Fortinet FortiGate 4800F High End Firewall
- Brand: Fortinet
- Device Type: Network Security Appliance
- Form Factor: 2U Rackmount 8-slot chassis
- Product Description: High-performance NGFW with 12x 100GE/40GE QSFP28 slots and 18x 25GE/10GE SFP28 slots
- Processor: SPU NP7 and CP9 processors
- Threat Protection throughput: 70 Gbps
- Hard Drive: N/A
- Data Link Protocol: 100GE, 40GE, 25GE, 10GE
- Included Accessories: N/A
- Power Supply: 4 AC power supplies
- Power Redundancy: N/A
- Performance: Firewall Throughput: Up to 320 Gbps, IPS Throughput: Up to 80 Gbps, VPN Throughput: Up to 140 Gbps
- New Sessions/Second (TCP): Up to 25 Million, SSL-VPN Throughput: 18 Gbps, SSL Inspection Throughput (IPS, avg. HTTPS): 63 Gbps, Application Control Throughput (HTTP 64K): 180 Gbps, Virtual Domains (Default / Maximum): 10 / 500
- Dimensions (WxDxH):6.89 x 17.13 x 26.10
- Weight: 41.2 kg
- Bundled Services: 5 years FortiCare 24X7 Service + 5 years FortiGuard
Fortinet FortiGate 6001F High End Firewall
- Brand: Fortinet
- Device Type: Network Security Appliance
- Form Factor: 3U Rackmount 8-slot chassis
- Product Description: The FortiGate 6001F is a high-performance NGFW designed for large enterprises and service providers. It provides advanced threat protection, SSL inspection, and high-throughput for deployments at the network edge, data center, and internal segments.
- Processor: Fortinet FortiASIC CP9/NP6
- Threat Protection Throughput: 30/10/100 Gbps (default/per FPC/max)
- Hard Drive: No internal storage specified
- Data Link Protocol: Supports multiple 40/100 GE QSFP28, 1/10/25 GE SFP28, 1/10 GE SFP+, and GE RJ45 interfaces
- Included Accessories: 2x SFP+ (SR 10 GE) transceivers included
- Power Supply: 2 x DC power supplies
- Power Redundancy: Not specified
- Performance: IPS Throughput: 51/17/170 Gbps (default/per FPC/max), NGFW Throughput: 45/15/150 Gbps (default/per FPC/max)
- Dimensions (WxDxH): 5.10 x 17.25 x 26.21 inches
- Weight: 35.5 kg
- Bundled Services: The FortiGate 6001F can be purchased with various service bundles, including FortiCare Premium and FortiGuard Enterprise Protection, Unified Threat Protection (UTP), and Advanced Threat Protection
Fortinet FortiGate 7081F High End Firewall
- Brand: Fortinet
- Device Type: Network Security Appliance
- Form Factor: 12U Rack-mountable 8-slot chassis
- Product Description: High-performance security-driven network for large enterprises and service providers.
- Processor: Fortinet FortiASIC CP9/NP7
- Threat protection: 312 Gbps
- Hard Drive: 4x 4 TB SSD (onboard storage)
- Data Link Protocol: 400 GE QSFP-DD, 100 GE QSFP28, 40 GE QSFP+, 25 GE SFP28, 10 GE SFP+
- Included Accessories: 2x Management Module, 6x hot swappable redundant PSU (2500WAC), 3x FG-7081F FAN module (for FG-7081F-DC)
- Power Supply: 2500WAC (redundant)
- Power Redundancy: Hot swappable redundant PSU
- Performance: IPv4 Firewall Throughput: 1.89 / 1.88 / 1.129 Tbps, IPv6 Firewall Throughput: 1.89 / 1.88 / 1.129 Tbps, Firewall Latency: 7.5 ?s, Firewall Throughput (Packet per Second): 1680 Mpps
- Dimensions (WxDxH): 543.9 x 440 x 675.5 mm
- Weight: 165.68 kg
- Bundled Services: FortiCare Premium and FortiGuard Enterprise Protection (or Unified Threat Protection) for various durations (1, 3, or 5 years)
Fortinet FortiGate 7121F High End Firewall
- Brand: FortiGate
- Device Type: Network Security Appliance
- Form Factor: 16U Rack-mountable 8-slot chassis
- Product Description: Fortinet FortiGate 7121F-2 - security appliance - with 5 years FortiCare 24X7 Service + 5 years FortiGuard
- Processor: Fortinet FortiASIC CP9/NP7
- Threat protection: 520 Gbps
- Hard Drive: 4 TB x 4
- Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 400 Gigabit Ethernet
- Included Accessories: 4 x SR 10Gbps SFP+ transceivers
- Power Supply : AC 200-240 V (50/60 Hz)
- Power Redundancy: Yes
- Performance: IPS throughput (enterprise traffic mix): 675 Gbps ¦ NGFW throughput (enterprise traffic mix): 550 Gbps ¦ Threat protection throughput (enterprise traffic mix): 520 Gbps ¦ Firewall throughput (1518-byte UDP): 1.89 Tbps ¦ Firewall throughput (512-byte UDP): 1.88 Tbps ¦ Firewall throughput (64-byte UDP): 1.129 Tbps ¦ Firewall latency (64-byte UDP): 7.5 µs ¦ Firewall throughput: 1680 Mpps ¦ VPN throughput (512-bit IPSec): 630 Gbps ¦ VPN throughput (SSL): 13.7 Gbps ¦ SSL inspection throughput: 540 Gbps ¦ Application control throughput: 1.5 Tbps
- Capacity: Concurrent TCP sessions: 1000000000 ¦ New TCP sessions per second: 9000000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSec VPN Tunnels: 40000 ¦ Client to gateway IPSec VPN tunnels: 260000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL inspection CPS: 480000 ¦ SSL inspection concurrent sessions: 100000000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 500 ¦ Number of FortiToken devices: 20000 ¦ Number of FortiSwitches: 300
- Dimensions (WxDxH): 17.3 x 26.6 x 28.6 inches
- Weight: 203.09 kg
- Bundled Services: 5 years FortiCare 24X7 Service + 5 years FortiGuard
SonicWall TZ600 Firewall
- Security Processor: 4x 1.4 GHz
- Memory (RAM): 1 GB
- 1 GbE Copper interfaces : 10
- Expansion : Expansion Slot (Rear), 2 USB
- Firewall inspection throughput: 1.5 Gbps
- Full DPI throughput: 500 Mbps
- Application inspection throughput:1.1 Gbps
- IPS throughput : 1.1 Gbps
- Anti-malware inspection throughput : 500 Mbps
- IMIX throughput : 900 Mbps
- SSL Inspection and Decryption (DPI SSL) :200 Mbps
- VPN throughput : 1.1 Gbps
- Connections per second : 12,000
- Maximum connections (SPI) : 150,000
- Maximum connections (DPI) : 125,000
- Single Sign-On (SSO) Users : 500
- VLAN interfaces : 50
- SonicPoints supported (Maximum) : 24
- Site-to-Site VPN Tunnels : 50
- IPSec VPN clients (Maximum) : 2 (25)
- SSL VPN licenses (Maximum) : 2 (200)
- Virtual assist bundled (Maximum) : 1 (30-day trial)
- Encryption/Authentication : DES, 3DES, AES (128, 192, 256-bit), MD5, SHA-1, Suite B Cryptography
- Key exchange : Diffie Hellman Groups 1, 2, 5, 14
- Route-based VPN : RIP, OSPF
- Certificate support : Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
- VPN features : Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
- Global VPN client platforms supported : Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit
- NetExtender : Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
- Mobile Connect : Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Windows 8.1 (Embedded)
- Deep Packet Inspection services : Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
- Content Filtering Service (CFS) : HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
- Enforced Client Anti-Virus and Anti-Spyware : McAfee®
- Comprehensive Anti-Spam Service : Supported
- Application Intelligence and Control : Yes
- Application Visualization : Yes
- IP address assignment : Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
- NAT modes : 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
- Routing protocols : BGP, OSPF, RIPv1/v2, static routes, policy-based routing, multicast
- QoS : Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
- Authentication : XAUTH/RADIUS, Active Directory, SSO, LDAP, Novell, internal user database, Terminal Services, Citrix
- Local user database : 150
- VoIP : Full H.323v1-5, SIP
- Standards : TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
- Certifications : VPNC, IPv6 (Phase 2)
- Certifications pending : Common Criteria NDPP, FIPS 140-2 (with Suite B) Level 2, ICSA Firewall, ICSA Anti-virus, UC APL
- Common Access Card (CAC) : Supported
- High Availability : Active/Standby with stateful synchronization
- Form factor : Desktop
- Power Supply (W) : 36W external
- Maximum power consumption (W) : 13.4 / 17.7
- Input power : 100 to 240 VAC, 50-60 Hz, 1 A
- Total heat dissipation : 45.9 / 60.5 BTU
- Dimensions : 3.5x15x22.5cm
- Weight : 0.92 Kg / 2.03 lbs & 1.05 Kg / 2.31 lbs
- WEEE weight : 1.34 Kg / 2.95 lbs & 1.48 Kg / 3.26 lbs
- Shipping weight : 1.93 Kg / 4.25 lbs & 2.07 Kg / 4.56 lbs
- MTBF (Years) : 20 / 12
- Environment : 40-105° F, 0-40° C
- Humidity : 5-95% non-condensing
SonicWall TZ500 Firewall
- Security Processor: 4x 1 GHz
- Memory (RAM): 1 GB
- 1 GbE Copper interfaces : 8
- Expansion : USB
- Firewall inspection throughput: 1.4 Gbps
- Full DPI throughput: 400 Mbps
- Application inspection throughput:1.0 Gbps
- IPS throughput : 1.0 Gbps
- Anti-malware inspection throughput : 400 Mbps
- IMIX throughput : 700 Mbps
- SSL Inspection and Decryption (DPI SSL) :150 Mbps
- VPN throughput : 1.0 Gbps
- Connections per second : 8,000
- Maximum connections (SPI) : 125,000
- Maximum connections (DPI) : 100,000
- Single Sign-On (SSO) Users : 500
- VLAN interfaces : 50
- SonicPoints supported (Maximum) : 16
- Site-to-Site VPN Tunnels : 25
- IPSec VPN clients (Maximum) : 2 (25)
- SSL VPN licenses (Maximum) : 2 (150)
- Virtual assist bundled (Maximum) : 1 (30-day trial)
- Encryption/Authentication : DES, 3DES, AES (128, 192, 256-bit), MD5, SHA-1, Suite B Cryptography
- Key exchange : Diffie Hellman Groups 1, 2, 5, 14
- Route-based VPN : RIP, OSPF
- Certificate support : Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
- VPN features : Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
- Global VPN client platforms supported : Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit
- NetExtender : Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
- Mobile Connect : Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Windows 8.1 (Embedded)
- Deep Packet Inspection services : Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
- Content Filtering Service (CFS) : HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
- Enforced Client Anti-Virus and Anti-Spyware : McAfee®
- Comprehensive Anti-Spam Service : Supported
- Application Intelligence and Control : Yes
- Application Visualization : Yes
- IP address assignment : Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
- NAT modes : 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
- Routing protocols : BGP, OSPF, RIPv1/v2, static routes, policy-based routing, multicast
- QoS : Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
- Authentication : XAUTH/RADIUS, Active Directory, SSO, LDAP, Novell, internal user database, Terminal Services, Citrix
- Local user database : 150
- VoIP : Full H.323v1-5, SIP
- Standards : TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
- Certifications : VPNC, IPv6 (Phase 2)
- Certifications pending : Common Criteria NDPP, FIPS 140-2 (with Suite B) Level 2, ICSA Firewall, ICSA Anti-virus, UC APL
- Common Access Card (CAC) : Supported
- High Availability : Active/Standby with stateful synchronization
- Form factor : Desktop
- Power Supply (W) : 36W external
- Maximum power consumption (W) : 13.4 / 17.7
- Input power : 100 to 240 VAC, 50-60 Hz, 1 A
- Total heat dissipation : 45.9 / 60.5 BTU
- Dimensions : 3.5x15x22.5cm
- Weight : 0.92 Kg / 2.03 lbs & 1.05 Kg / 2.31 lbs
- WEEE weight : 1.34 Kg / 2.95 lbs & 1.48 Kg / 3.26 lbs
- Shipping weight : 1.93 Kg / 4.25 lbs & 2.07 Kg / 4.56 lbs
- MTBF (Years) : 20 / 12
- Environment : 40-105° F, 0-40° C
- Humidity : 5-95% non-condensing
SonicWall TZ400 Firewall
- Security Processor: 4x 800 MHz
- Memory (RAM): 1 GB
- 1 GbE Copper interfaces : 7
- Expansion : USB
- Firewall inspection throughput: 1.3 Gbps
- Full DPI throughput:300Mbps
- Application inspection throughput:900Mbps
- IPS throughput : 900Mbps
- Anti-malware inspection throughput : 300Mbps
- IMIX throughput : 500Mbps
- SSL Inspection and Decryption (DPI SSL) : 100Mbps
- VPN throughput : 900 Mbps
- Connections per second : 6,000
- Maximum connections (SPI) : 100,000
- Maximum connections (DPI) : 90,000
- Single Sign-On (SSO) Users :500
- VLAN interfaces : 50
- SonicPoints supported (Maximum) : 16
- Site-to-Site VPN Tunnels : 20
- IPSec VPN clients (Maximum) : 2 (25)
- SSL VPN licenses (Maximum) : 2 (100)
- Virtual assist bundled (Maximum) : 1 (30-day trial)
- Encryption/Authentication : DES, 3DES, AES (128, 192, 256-bit), MD5, SHA-1, Suite B Cryptography
- Key exchange : Diffie Hellman Groups 1, 2, 5, 14
- Route-based VPN : RIP, OSPF
- Certificate support : Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
- VPN features : Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
- Global VPN client platforms supported : Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit
- NetExtender : Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
- Mobile Connect : Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Windows 8.1 (Embedded)
- Deep Packet Inspection services : Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
- Content Filtering Service (CFS) : HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
- Enforced Client Anti-Virus and Anti-Spyware : McAfee®
- Comprehensive Anti-Spam Service : Supported
- Application Intelligence and Control : Yes
- Application Visualization : Yes
- IP address assignment : Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
- NAT modes : 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
- Routing protocols : BGP, OSPF, RIPv1/v2, static routes, policy-based routing, multicast
- QoS : Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
- Authentication : XAUTH/RADIUS, Active Directory, SSO, LDAP, Novell, internal user database, Terminal Services, Citrix
- Local user database : 250
- VoIP : Full H.323v1-5, SIP
- Standards : TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
- Certifications : VPNC, IPv6 (Phase 2)
- Certifications pending : Common Criteria NDPP, FIPS 140-2 (with Suite B) Level 2, ICSA Firewall, ICSA Anti-virus, UC APL
- Common Access Card (CAC) : Supported
- High Availability : Active/Standby
- Form factor : Desktop
- Power Supply (W) : 24W external
- Maximum power consumption (W) : 9.2 / 13.8
- Input power : 100 to 240 VAC, 50-60 Hz, 1 A
- Total heat dissipation : 31.3 / 47.1 BTU
- Dimensions : 3.6x14.1x19cm
- Weight : 0.73 Kg / 1.61 lbs & 0.84 Kg / 1.85 lbs
- WEEE weight : 1.15 Kg / 2.53 lbs & 1.26 Kg / 2.78 lbs
- Shipping weight : 1.37 Kg / 3.02 lbs & 1.48 Kg / 3.26 lbs
- MTBF (Years) : 27 / 13
- Environment : 40-105° F, 0-40° C
- Humidity : 5-95% non-condensing
SonicWall TZ300 Firewall
- Operating system : SonicOS 6.2.x
- Security Processor: 2x 800 MHz
- Memory (RAM): 1 GB
- 1 GbE Copper interfaces : 5
- Expansion : USB
- Firewall inspection throughput: 750 Mbps
- Full DPI throughput:100 Mbps
- Application inspection throughput:300 Mbps
- IPS throughput : 300 Mbps
- Anti-malware inspection throughput : 100 Mbps
- IMIX throughput : 200 Mbps
- SSL Inspection and Decryption (DPI SSL) :45 Mbps
- VPN throughput : 300 Mbps
- Connections per second : 5,000
- Maximum connections (SPI) : 50,000
- Maximum connections (DPI) : 50,000
- Single Sign-On (SSO) Users :500
- VLAN interfaces : 25
- SonicPoints supported (Maximum) : 8
- Site-to-Site VPN Tunnels : 10
- IPSec VPN clients (Maximum) : 1 (10)
- SSL VPN licenses (Maximum) : 1 (50)
- Virtual assist bundled (Maximum) : 1 (30-day trial)
- Encryption/Authentication : DES, 3DES, AES (128, 192, 256-bit), MD5, SHA-1, Suite B Cryptography
- Key exchange : Diffie Hellman Groups 1, 2, 5, 14
- Route-based VPN : RIP, OSPF
- Certificate support : Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
- VPN features : Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
- Global VPN client platforms supported : Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit
- NetExtender : Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
- Mobile Connect : Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Windows 8.1 (Embedded)
- Deep Packet Inspection services : Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
- Content Filtering Service (CFS) : HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
- Enforced Client Anti-Virus and Anti-Spyware : McAfee®
- Comprehensive Anti-Spam Service : Supported
- Application Intelligence and Control : Yes
- Application Visualization : Yes
- IP address assignment : Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
- NAT modes : 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
- Routing protocols : OSPF, RIPv1/v2, static routes, policy-based routing, multicast
- QoS : Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
- Authentication : XAUTH/RADIUS, Active Directory, SSO, LDAP, Novell, internal user database, Terminal Services, Citrix
- Local user database : 150
- VoIP : Full H.323v1-5, SIP
- Standards : TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
- Certifications : VPNC, IPv6 (Phase 2)
- Certifications pending : Common Criteria NDPP, FIPS 140-2 (with Suite B) Level 2, ICSA Firewall, ICSA Anti-virus, UC APL
- Common Access Card (CAC) : Supported
- High Availability : Active/Standby
- Form factor : Desktop
- Power Supply (W) : 24W external
- Maximum power consumption (W) : 6.9 / 12.0
- Input power : 100 to 240 VAC, 50-60 Hz, 1 A
- Total heat dissipation : 23.5 / 40.9 BTU
- Dimensions : 3.5x13.4x19cm
- Weight : 0.73 Kg / 1.61 lbs & 0.84 Kg / 1.85 lbs
- WEEE weight : 1.15 Kg / 2.53 lbs & 1.26 Kg / 2.78 lbs
- Shipping weight : 1.37 Kg / 3.02 lbs & 1.48 Kg / 3.26 lbs
- MTBF (Years) : 28 / 14
- Environment : 40-105° F, 0-40° C
- Humidity : 5-95% non-condensing
SonicWall TZ SOHO Firewall
- Operating system : SonicOS 5.9.x – Wired / SonicOS 6.2.x – Wireless
- Security Processor: 2x400 MHz (Wired) / 2x800 MHz (Wireless)
- Memory (RAM): 512 MB (Wired) /1 GB (Wireless)
- 1 GbE Copper interfaces : 5
- Expansion : USB
- Firewall inspection throughput: 300 Mbps
- Full DPI throughput:50 Mbps
- Application inspection throughput:0
- IPS throughput : 100 Mbps
- Anti-malware inspection throughput : 50 Mbps
- IMIX throughput : 60 Mbps
- SSL Inspection and Decryption (DPI SSL) :15 Mbps
- VPN throughput : 100 Mbps
- Connections per second : 1,800
- Maximum connections (SPI) : 10,000
- Maximum connections (DPI) : 10,000
- Single Sign-On (SSO) Users :250
- VLAN interfaces : 25
- SonicPoints supported (Maximum) : 2
- Site-to-Site VPN Tunnels : 10
- IPSec VPN clients (Maximum) : 1 (5)
- SSL VPN licenses (Maximum) : 1 (10)
- Virtual assist bundled (Maximum) : No
- Encryption/Authentication : DES, 3DES, AES (128, 192, 256-bit), MD5, SHA-1, Suite B Cryptography
- Key exchange : Diffie Hellman Groups 1, 2, 5, 14
- Route-based VPN : RIP, OSPF
- Certificate support : Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
- VPN features : Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
- Global VPN client platforms supported : Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit
- NetExtender : Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
- Mobile Connect : Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Windows 8.1 (Embedded)
- Deep Packet Inspection services : Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
- Content Filtering Service (CFS) : HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
- Enforced Client Anti-Virus and Anti-Spyware : McAfee®
- Comprehensive Anti-Spam Service : Supported
- Application Intelligence and Control : Yes
- Application Visualization : No
- IP address assignment : Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
- NAT modes : 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
- Routing protocols : OSPF, RIPv1/v2, static routes, policy-based routing, multicast
- QoS : Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
- Authentication : XAUTH/RADIUS, Active Directory, SSO, LDAP, Novell, internal user database, Terminal Services, Citrix
- Local user database : 150
- VoIP : Full H.323v1-5, SIP
- Standards : TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
- Certifications : VPNC, IPv6 (Phase 2)
- Certifications pending : Common Criteria NDPP, FIPS 140-2 (with Suite B) Level 2, ICSA Firewall, ICSA Anti-virus, UC APL
- Common Access Card (CAC) : Supported
- High Availability : No
- Form factor : Desktop
- Power Supply (W) : 24W external
- Maximum power consumption (W) : 6.4 / 11.3
- Input power : 100 to 240 VAC, 50-60 Hz, 1 A
- Total heat dissipation : 21.8 / 38.7 BTU
- Dimensions : 3.6x14.1x19cm
- Weight : 0.34 Kg / 0.75 lbs & 0.48 Kg / 1.06 lbs
- WEEE weight : 0.80 Kg / 1.76 lbs & 0.94 Kg / 2.07 lbs
- Shipping weight : 1.20 Kg / 2.64 lbs & 1.34 Kg / 2.95 lbs
- MTBF (Years) : 30 / 15
- Environment : 40-105° F, 0-40° C
- Humidity : 5-95% non-condensing

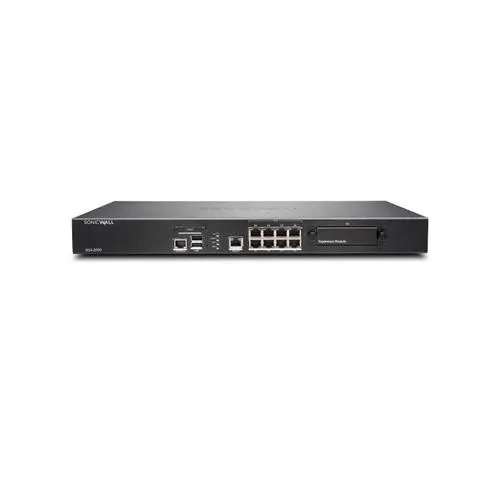

SonicWall NSA 2600 Series
- Operating system : SonicOS 6.5.1
- Security processing cores : 4
- Interfaces :
- 8 x 1-GbE,
- 1 GbE Management,
- 1 Console
- Expansion:1 Expansion Slot (Rear)*, SD Card*
- Management : CLI, SSH, Web UI, Capture Security Center, GMS, REST APIs
- SSO users : 30,000
- Maximum access points supported : 32
- Logging : Analyzer, Local Log, Syslog
- Firewall inspection throughput : 1.9 Gbps
- Full DPI throughput : 300 Mbps
- Application inspection throughput : 700 Mbps
- IPS throughput : 700 Mbps
- Anti-malware inspection throughput : 400 Mbps
- IMIX throughput : 600 Mbps
- TLS/SSL decryption and inspection (DPI SSL) : 200 Mbps
- VPN throughput : 1.1 Gbps
- Connections per second : 15,000/sec
- Maximum connections (SPI) : 500,000
- Maximum connections (DPI) : 250,000
- Default/Maximum connections (DPI SSL) : 1,000/1,000
- Site-to-site VPN tunnels : 250
- IPSec VPN clients (max) : 10 (250)
- SSL VPN NetExtender clients (max) : 2 (250)
- Encryption/Authentication :DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
- Key exchange : Diffie Hellman Groups 1, 2, 5, 14v
- Route-based VPN : RIP, OSPF, BGP
- IP address assignment : Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP Relay
- NAT modes : 1:1, many:1, 1:many, flexible NAT (overlapping IPS), PAT, transparent mode
- VLAN interfaces : 256
- Routing protocols : BGP, OSPF, RIPv1/v2, static routes, policy-based routing
- QoS : Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
- Authentication : LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
- VoIP : Full H323-v1-5, SIP
- Standards : TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
- Certifications : ICSA Firewall, ICSA Anti-Virus, FIPS 140-2, Common Criteria NDPP (Firewall and IPS), UC APL
- High availability : Active/Passive with State Sync
- Power supply : Single, Fixed 200W
- Fans : Dual, Fixed
- Input power : 100-240 VAC, 60-50 Hz
- Maximum power consumption (W) : 49.4
- MTBF @25ºC in hours : 176,540
- MTBF @25ºC in years : 20.15
- Form factor : 1U Rack Mountable
- Dimensions : 1.75 x 10.25 x 17 in(4.5 x 26 x 43 cm)
- Weight : 10.1 lb (4.6 kg)
- WEEE weight : 11.0 lb (5.0 kg)
- Shipping weight : 14.3 lb (6.5 kg)
- Major regulatory : FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI, CU
- Environment (Operating/Storage) : 32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
- Humidity : 10-90% non-condensing

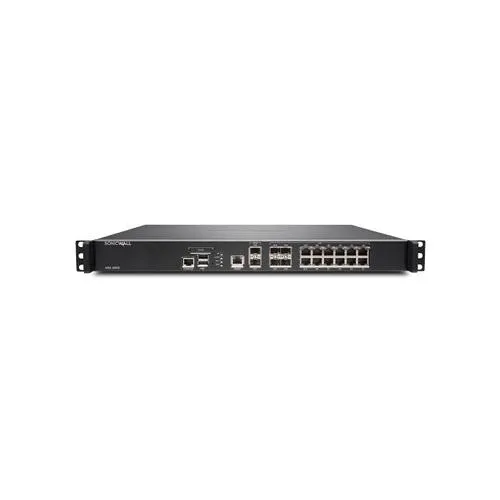

SonicWall NSA 3600 Series
- Operating system : SonicOS 6.5.1
- Security processing cores : 6
- Interfaces :
- 2 x 10-GbE SFP+,
- 4 x 1-GbE SFP,
- 12 x 1-GbE,
- 1 GbE Management,
- 1 Console
- Expansion:1 Expansion Slot (Rear)*, SD Card*
- Management : CLI, SSH, Web UI, Capture Security Center, GMS, REST APIs
- SSO users : 40,000
- Maximum access points supported : 48
- Logging : Analyzer, Local Log, Syslog
- Firewall inspection throughput : 3.4 Gbps
- Full DPI throughput : 500 Mbps
- Application inspection throughput : 1.1 Gbps
- IPS throughput : 1.1 Gbps
- Anti-malware inspection throughput : 600 Mbps
- IMIX throughput : 900 Mbps
- TLS/SSL decryption and inspection (DPI SSL) : 300 Mbps
- VPN throughput : 1.5 Gbps
- Connections per second : 20,000/sec
- Maximum connections (SPI) : 750,000
- Maximum connections (DPI) : 375,000
- Default/Maximum connections (DPI SSL) : 2,000/2,750
- Site-to-site VPN tunnels : 1,000
- IPSec VPN clients (max) : 50 (1,000)
- SSL VPN NetExtender clients (max) : 2 (350)
- Encryption/Authentication :DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
- Key exchange : Diffie Hellman Groups 1, 2, 5, 14v
- Route-based VPN : RIP, OSPF, BGP
- Power supply : Single, Fixed 250W
- Fans : Dual, Fixed
- Input power : 100-240 VAC, 60-50 Hz
- Maximum power consumption (W) : 74.3
- MTBF @25ºC in hours : 146,789
- MTBF @25ºC in years : 16.76
- Form factor : 1U Rack Mountable
- Dimensions : 1.75 x 19.1 x 17 in (4.5 x 48.5 x 43 cm)
- Weight : 13.56 lb (6.15 kg)
- WEEE weight : 14.24 lb (6.46 kg)
- Shipping weight : 20.79lb (9.43 kg)
- Major regulatory : FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI, CU
- Environment (Operating/Storage) : 32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
- Humidity : 10-90% non-condensing
SonicWall NSA 4600 Series
- Operating system : SonicOS 6.5.1
- Security processing cores : 8
- Interfaces :
- 2 x 10-GbE SFP+,
- 4 x 1-GbE SFP,
- 12 x 1-GbE,
- 1 GbE Management,
- 1 Console
- Expansion:1 Expansion Slot (Rear)*, SD Card*
- Management : CLI, SSH, Web UI, Capture Security Center, GMS, REST APIs
- SSO users : 50,000
- Maximum access points supported : 64
- Logging : Analyzer, Local Log, Syslog
- Firewall inspection throughput : 6.0 Gbps
- Full DPI throughput : 800 Mbps
- Application inspection throughput : 2.0 Gbps
- IPS throughput : 2.0 Gbps
- Anti-malware inspection throughput : 1.1 Gbps
- IMIX throughput : 1.6 Gbps
- TLS/SSL decryption and inspection (DPI SSL) : 500 Mbps
- VPN throughput : 3.0 Gbps
- Connections per second : 40,000/sec
- Maximum connections (SPI) : 1,000,000
- Maximum connections (DPI) : 500,000
- Default/Maximum connections (DPI SSL) : 3,000/4,500
- Site-to-site VPN tunnels : 3,000
- IPSec VPN clients (max) : 500 (3,000)
- SSL VPN NetExtender clients (max) : 2 (500)
- Encryption/Authentication :DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
- Key exchange : Diffie Hellman Groups 1, 2, 5, 14v
- Route-based VPN : RIP, OSPF, BGP
- IP address assignment : Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP Relay
- NAT modes : 1:1, many:1, 1:many, flexible NAT (overlapping IPS), PAT, transparent mode
- VLAN interfaces : 256
- Routing protocols : BGP, OSPF, RIPv1/v2, static routes, policy-based routing
- QoS : Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
- Authentication : LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
- VoIP : Full H323-v1-5, SIP
- Standards : TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
- Certifications : ICSA Firewall, ICSA Anti-Virus, FIPS 140-2, Common Criteria NDPP (Firewall and IPS), UC APL
- High availability : Active/Passive with State Sync, Active/Active Clustering
- Power supply : Single, Fixed 250W
- Fans : Dual, Fixed
- Input power : 100-240 VAC, 60-50 Hz
- Maximum power consumption (W) : 86.7
- MTBF @25ºC in hours : 139,783
- MTBF @25ºC in years : 15.96
- Form factor : 1U Rack Mountable
- Dimensions : 1.75 x 19.1 x 17 in (4.5 x 48.5 x 43 cm)
- Weight : 13.56 lb (6.15 kg)
- WEEE weight : 14.24 lb (6.46 kg)
- Shipping weight : 20.79lb (9.43 kg)
- Major regulatory : FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI, CU
- Environment (Operating/Storage) : 32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
- Humidity : 10-90% non-condensing

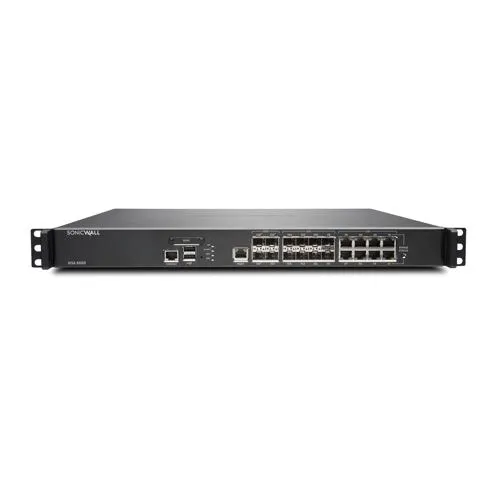

SonicWall NSA 5600 Series
- Operating system : SonicOS 6.5.1
- Security processing cores : 10
- Interfaces :
- 2 x 10-GbE SFP+,
- 4 x 1-GbE SFP,
- 12 x 1-GbE,
- 1 GbE Management,
- 1 Console
- Expansion:1 Expansion Slot (Rear)*, SD Card*
- Management : CLI, SSH, Web UI, Capture Security Center, GMS, REST APIs
- SSO users : 60,000
- Maximum access points supported : 96
- Logging : Analyzer, Local Log, Syslog
- Firewall inspection throughput : 9.0 Gbps
- Full DPI throughput : 1.6 Gbps
- Application inspection throughput : 3.0 Gbps
- IPS throughput : 3.0 Gbps
- Anti-malware inspection throughput : 1.7 Gbps
- IMIX throughput : 2.4 Gbps
- TLS/SSL decryption and inspection (DPI SSL) : 800 Mbps
- VPN throughput : 4.5 Gbps
- Connections per second : 60,000/sec
- Maximum connections (SPI) : 1,500,000
- Maximum connections (DPI) : 1,000,000
- Default/Maximum connections (DPI SSL) : 4,000/8,500
- Site-to-site VPN tunnels : 4,000
- IPSec VPN clients (max) : 2,000 (4,000)
- SSL VPN NetExtender clients (max) : 2 (1,000)
- Encryption/Authentication :DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
- Key exchange : Diffie Hellman Groups 1, 2, 5, 14v
- Route-based VPN : RIP, OSPF, BGP
- IP address assignment : Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP Relay
- NAT modes : 1:1, many:1, 1:many, flexible NAT (overlapping IPS), PAT, transparent mode
- VLAN interfaces : 400
- Routing protocols : BGP, OSPF, RIPv1/v2, static routes, policy-based routing
- QoS : Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
- Authentication : LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
- VoIP : Full H323-v1-5, SIP
- Standards : TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
- Certifications : ICSA Firewall, ICSA Anti-Virus, FIPS 140-2, Common Criteria NDPP (Firewall and IPS), UC APL
- High availability : Active/Passive with State Sync, Active/Active DPI with State Sync, Active/Active Clustering
- Power supply : Single, Fixed 250W
- Fans : Dual, Fixed
- Input power : 100-240 VAC, 60-50 Hz
- Maximum power consumption (W) : 90.9
- MTBF @25ºC in hours : 134,900
- MTBF @25ºC in years : 15.40
- Form factor : 1U Rack Mountable
- Dimensions : 1.75 x 19.1 x 17 in (4.5 x 48.5 x 43 cm)
- Weight : 13.56 lb (6.15 kg)
- WEEE weight : 14.24 lb (6.46 kg)
- Shipping weight : 20.79lb (9.43 kg)
- Major regulatory : FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI, CU
- Environment (Operating/Storage) : 32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
- Humidity : 10-90% non-condensing

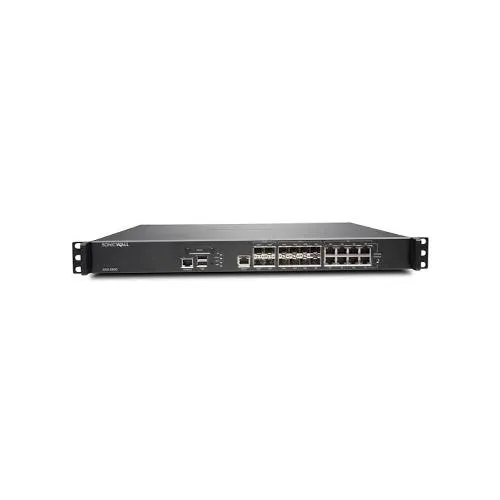

SonicWall NSA 6600 Series
- Operating system : SonicOS 6.5.1
- Security processing cores : 24
- Interfaces :
- 4 x 10-GbE SFP+,
- 8 x 1-GbE SFP,
- 8 x 1-GbE,
- 1 GbE Management,
- 1 Console
- Expansion:1 Expansion Slot (Rear)*, SD Card*
- Management :CLI, SSH, Web UI, Capture Security Center, GMS, REST APIs
- SSO users:70,000
- Maximum access points supported : 128
- Logging : Analyzer, Local Log, Syslog
- Firewall inspection throughput : 12.0 Gbps
- Full DPI throughput : 3.0 Gbps
- Application inspection throughput : 4.5 Gbps
- IPS throughput : 4.5 Gbps
- Anti-malware inspection throughput : 3.0 Gbps
- IMIX throughput : 3.5 Gbps
- TLS/SSL decryption and inspection (DPI SSL) : 1.3 Gbps
- VPN throughput : 5.0 Gbps
- Connections per second : 90,000/sec
- Maximum connections (SPI) : 1,500,000
- Maximum connections (DPI) : 1,000,000
- Default/Maximum connections (DPI SSL) : 6,000/10,500
- Site-to-site VPN tunnels : 6,000
- IPSec VPN clients (max) : 2,000 (6,000)
- SSL VPN NetExtender clients (max) : 2 (1,500)
- Encryption/Authentication :DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
- Key exchange : Diffie Hellman Groups 1, 2, 5, 14v
- Route-based VPN : RIP, OSPF, BGP
- IP address assignment : Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP Relay
- NAT modes : 1:1, many:1, 1:many, flexible NAT (overlapping IPS), PAT, transparent mode
- VLAN interfaces : 256
- Routing protocols : BGP, OSPF, RIPv1/v2, static routes, policy-based routing
- QoS : Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
- Authentication : LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
- VoIP : Full H323-v1-5, SIP
- Standards : TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
- Certifications : ICSA Firewall, ICSA Anti-Virus, FIPS 140-2, Common Criteria NDPP (Firewall and IPS), UC APL
- High availability : Active/Passive with State Sync, Active/Active DPI with State Sync, Active/Active Clustering
- Power supply : Single, Fixed 250W
- Fans : Dual, redundant, hot swappable
- Input power : 100-240 VAC, 60-50 Hz
- Maximum power consumption (W) : 113.1
- MTBF @25ºC in hours : 116,477
- MTBF @25ºC in years : 13.30
- Form factor : 1U Rack Mountable
- Dimensions : 1.75 x 19.1 x 17 in (4.5 x 48.5 x 43 cm)
- Weight : 14.93 lb (6.77 kg)
- WEEE weight : 19.78 lb (8.97 kg)
- Shipping weight : 26.12 lb (11.85 kg)
- Major regulatory : FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI, CU
- Environment (Operating/Storage) : 32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
- Humidity : 10-90% non-condensing
FortiGate 6500F Firewall
- Brand: Fortinet
- Device Type: Network Security Appliance
- Product: Fortinet FortiGate 6500F High End Firewall
- Form Factor: 12U Rackmount 8-slot chassis
- Product Description: The FortiGate 6500F is a high-performance NGFW designed for large enterprises and service providers. It provides advanced threat protection, SSL inspection, and high-throughput for deployments at the network edge, data center, and internal segments.
- Processor: Fortinet FortiASIC CP9/NP6
- Threat Protection: 100 Gbps
- Hard Drive: 2 TB NVMe (for 6301F and 6501F only)
- Data Link Protocol: Supports multiple 40/100 GE QSFP28, 1/10/25 GE SFP28, 1/10 GE SFP+, and GE RJ45 interfaces
- Included Accessories: 2x SFP+ (SR 10 GE) transceivers
- Power Supply: 2 x DC power supplies
- Power Redundancy: Not specified
- Performance:IPS Throughput: 170 Gbps, NGFW Throughput: 150 Gbps,SSL Inspection Throughput (IPS, HTTP): 170 Gbps
- Dimensions (WxDxH): 5.20 x 17.20 x 26.18 inches
- Weight: 35.5 kg
- Bundled Services: Various service bundles are available, including FortiCare Premium and FortiGuard Enterprise Protection, Unified Threat Protection (UTP), and Advanced Threat Protection.
FortiGate 6300F Firewall
- Brand: Fortinet
- Device Type: Network Security Appliance
- Product: Fortinet FortiGate 6300F High End Firewall
- Form Factor: 3U Rackmount 8-slot chassis
- Product Description: High-performance NGFW and ISFW with high port density, industry-leading security efficacy, and high throughput
- Processor: Purpose-built security processor (SPU) for best threat protection performance and ultra-low latency
- Threat Protection throughput: 60 Gbps
- Hard Drive: 2x 1 TB NVMe (for 6301F and 6501F models only)
- Data Link Protocol: 1/10/25/40/100 GE
- Included Accessories: 2x SFP+ (SR 10 GE) transceivers
- Power Supply: 3x AC power supplies
- Power Redundancy: Yes
- Performance:, Firewall throughput: 239 Gbps, IPS throughput: 110 Gbps, NGFW throughput: 90 Gbps
- Dimensions (WxDxH): 12 × 12 × 6 inches
- Weight: 30.7 kg
- Bundled Services: FortiGuard security services for threat protection
- The FortiGate 6300F offers multiple high-speed interfaces including 4x 40/100 GE QSFP28 slots and 24x 1/10/25 GE SFP28 slots. It delivers high performance threat protection and SSL inspection for large enterprises and service providers
FortiGate 100E Firewall
- FORTIGATE 100E
- GE RJ45 Ports : 14
- GE RJ45 Management/HA/DMZ Ports : 1 / 2
- GE SFP Slots : 0
- GE RJ45 PoE/+ Ports : 0
- GE RJ45 WAN Ports : 2
- GE RJ45 or SFP Shared Ports : 2
- USB Port : 1
- Console Port : 1
- Internal Storage : 0
- Included Transceivers : 0
- IPS Throughput : 500 Mbps
- NGFW Throughput : 360 Mbps
- Threat Protection Throughput : 250 Mbps
- Firewall Throughput (1518 / 512 / 64 byte UDP packets) : 7.4 / 7.4 / 4.4 Gbps
- Firewall Latency (64 byte UDP packets) : 3 ?s
- Firewall Throughput (Packets Per Second) : 6.6 Mpps
- Concurrent Sessions (TCP) : 2 Million
- New Sessions/Second (TCP) : 30,000
- Firewall Policies : 10,000
- IPsec VPN Throughput (512 byte) : 4 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels : 2,000
- Client-to-Gateway IPsec VPN Tunnels : 10,000
- SSL-VPN Throughput : 250 Mbps
- Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 500
- SSL Inspection Throughput (IPS, avg. HTTPS) : 130 Mbps
- SSL Inspection CPS (IPS, avg. HTTPS) : 130
- SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 125,000
- Application Control Throughput (HTTP 64K) : 1 Gbps
- CAPWAP Throughput (1444 byte, UDP) : 1.5 Gbps
- Virtual Domains (Default / Maximum) : 10 / 10
- Maximum Number of FortiSwitches Supported : 24
- Maximum Number of FortiAPs (Total / Tunnel Mode) : 64 / 32
- Maximum Number of FortiTokens : 5,000
- High Availability Configurations : Active / Active, Active / Passive, Clustering
- Height x Width x Length (inches) : 1.75 x 17 x 10 1.75 x 17 x 10 1.75 x 17 x 10 1.75 x 17 x 15.5
- Height x Width x Length (mm) : 44.45 x 432 x 254 44.45 x 432 x 254 44.45 x 432 x 254 44.45 x 432 x 394
- Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU Rack Mount, 1 RU Rack Mount, 1 RU Rack Mount, 1 RU
- Weight : 7.28 lbs (3.3 kg) 7.28 lbs (3.3 kg) 7.28 lbs (3.3 kg) 12.4 lbs (5.6 kg)
- Power Input : 100–240V AC, 50–60 Hz
- Maximum Current : 100V / 0.52A, 240V / 0.22A 100V / 0.59A, 240V / 0.25A 100V / 0.52A, 240V / 0.22A 100V / 5A
- Total Available PoE Power Budget* — — — 400 W
- Power Consumption (Average / Maximum) : 23.0 W / 28.6 W; 51.9 VA 24.8 W / 33.8 W; 59.2 VA 24.4 W / 28.6 W; 51.9 VA 477.1 W / 500.0 W
- Heat Dissipation : 97.6 BTU/h 115.3 BTU/h 97.6 BTU/h 1706.07 BTU/h
FortiGate 100F Firewall
- Brand: Fortinet
- Device Type: Next Generation Firewall (NGFW) and Secure SD-WAN
- Product: Fortinet FortiGate 100F Mid Range Firewall
- Form Factor: 1U 19-inch rack mount
- Product Description: The FortiGate 100F Series combines next-generation firewall and SD-WAN capabilities for mid-sized to large enterprise distributed locations. Powered by purpose-built Secure SD-WAN ASIC, FortiGate 100F delivers optimal performance for business-critical applications along with the best security effectiveness.
- Processor: SP5 Security Processing Unit
- Threat protection: 1 Gbps
- Hard Drive: 1x 480 GB SSD
- Data Link Protocol: Multiple GE RJ45, GE SFP, and 10 GE SFP+ slots
- Included Accessories: Not specified
- Power Supply: Internal Power Supply Unit
- Power Redundancy: Yes
- Performance: Firewall Throughput: 20 Gbps, NGFW Throughput: 2.6 Gbps, Threat Protection Throughput: 1.6 Gbps, IPS Throughput: 1 Gbps,SSL-VPN Throughput: 750 Mbps,SSL Inspection Throughput: 500 Mbps
- Application Control Throughput: 135,000, CAPWAP Throughput: 15 Gbps
- Dimensions (WxDxH): 1.73 x 17 x 10 inches
- Weight: 3.29 kg
- Bundled Services: FortiGuard Unified Threat Protection (UTP) Bundle, Advanced Threat Protection Bundle (ATP), Enterprise Protection Bundle, and other FortiGuard services
- The FortiGate 100F is designed to provide robust security and networking capabilities for mid-sized to large enterprise deployments, leveraging Fortinet's patented Secure SD-WAN ASIC and AI-powered FortiGuard services
FortiGate 200E Firewall
- GE RJ45 WAN Interfaces : 2
- GE RJ45 Management/HA Ports : 2
- GE RJ45 Ports : 14
- GE SFP Slots : 4
- USB port : 1
- Console (RJ45): 1
- Local Storage : 1x 480 GB SSD
- Included Transceivers : 0
- IPS Throughput : 2.2 Gbps
- NGFW Throughput : 1.8 Gbps
- Threat Protection Throughput : 1.2 Gbps
- Firewall Throughput(1518 / 512 / 64 byte UDP packets) : 20 / 20 / 9 Gbps
- Firewall Latency (64 byte UDP packets) : 3 ?s
- Firewall Throughput (Packets Per Second) : 13.5 Mpps
- Concurrent Sessions (TCP) : 2 Million
- New Sessions/Second (TCP) : 135,000
- Firewall Policies : 10,000
- IPsec VPN Throughput (512 byte) : 7.2 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels : 2,000
- Client-to-Gateway IPsec VPN Tunnels : 10,000
- SSL-VPN Throughput : 900 Mbps
- Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 500
- SSL Inspection Throughput (IPS, avg. HTTPS) : 820 Mbps
- SSL Inspection CPS (IPS, avg. HTTPS) : 1,000
- SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 240,000
- Application Control Throughput (HTTP 64K) : 3.5 Gbps
- CAPWAP Throughput (1444 byte, UDP) : 1.5 Gbps
- Virtual Domains (Default / Maximum) : 10 / 10
- Maximum Number of FortiSwitches Supported : 64
- Maximum Number of FortiAPs (Total / Tunnel Mode) : 256 / 128
- Maximum Number of FortiTokens : 5,000
- High Availability Configurations : Active / Active, Active / Passive, Clustering
- Height x Width x Length (inches) : 1.75 x 17.0 x 11.9
- Height x Width x Length (mm) : 44.45 x 432 x 301
- Weight : 11.9 lbs (5.4 kg) 12.12 lbs (5.5 kg)
- Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
- Power Input :100–240V AC, 50–60 Hz
- Maximum Current : 110 V / 3 A, 220 V / 0.42 A
- Power Consumption (Average / Maximum) : 70.98 / 109.9 W
- Heat Dissipation : 374.9 BTU/h
- Operating Temperature : 32–104°F (0–40°C)
- Storage Temperature : -31–158°F (-35–70°C)
- Humidity : 10–90% non-condensing
- Noise Level : 31.1 dBA
- Operating Altitude Up to : 7,400 ft (2,250 m)
- Compliance : FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
- Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6
FortiGate 300E Firewall
- GE RJ45 Interfaces : 16
- GE SFP Slots : 16
- GE RJ45 Management Ports : 2
- USB Ports : 2
- RJ45 Console Port : 1
- Local Storage : 2x 240 GB SSD
- Included Transceivers : 2x SFP (SX 1 GE)
- IPS Throughput : 5 Gbps
- NGFW Throughput : 3.5 Gbps
- Threat Protection Throughput : 3 Gbps
- IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 32 / 32 / 20 Gbps
- IPv6 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 32 / 32 / 20 Gbps
- Firewall Latency (64 byte, UDP) : 3 ?s
- Firewall Throughput (Packet per Second) : 30 Mpps
- Concurrent Sessions (TCP) : 4 Million
- New Sessions/Second (TCP) : 300,000
- Firewall Policies : 10,000
- IPsec VPN Throughput (512 byte) : 20 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels : 2,000
- Client-to-Gateway IPsec VPN Tunnels : 50,000
- SSL-VPN Throughput : 2.5 Gbps
- Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode):5,000
- SSL Inspection Throughput (IPS, avg. HTTPS) : 3.9 Gbps
- SSL Inspection CPS (IPS, avg. HTTPS) : 2,500
- SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 340,000
- Application Control Throughput (HTTP 64K) : 7 Gbps
- CAPWAP Throughput (1444 byte, UDP) : 5 Gbps
- Virtual Domains (Default / Maximum) : 10 / 10
- Maximum Number of FortiSwitches Supported : 72
- Maximum Number of FortiAPs (Total / Tunnel) : 512 / 256
- Maximum Number of FortiTokens : 5,000
- High Availability Configurations : Active-Active, Active-Passive, Clustering
- Height x Width x Length (inches) : 1.75 x 17.0 x 15.0
- Height x Width x Length (mm) : 44.45 x 432 x 380
- Weight : 16.1 lbs (7.3 kg) 16.6 lbs (7.6 kg)
- Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
- Power Consumption (Average / Maximum) : 90 W / 173 W 95 W / 180 W
- Power Input : 100V–240V AC, 50–60Hz
- Current (Maximum) : 6A
- Heat Dissipation : 570 BTU/h 614 BTU/h
- Redundant Power Supplies (Hot Swappable) : optional
- Operating Temperature : 32–104°F (0–40°C)
- Storage Temperature : -31–158°F (-35–70°C)
- Humidity : 10–90% non-condensing
- Noise Level : 48 dBA
- Operating Altitude Up to : 7,400 ft (2,250 m)
- Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
- Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
FortiGate 400E Firewall
- GE RJ45 Interfaces : 16
- GE SFP Slots : 16
- GE RJ45 Management Ports : 2
- USB Ports : 2
- RJ45 Console Port : 1
- Local Storage : 2x 240 GB SSD
- Included Transceivers : 2x SFP (SX 1 GE)
- IPS Throughput : 7.8 Gbps
- NGFW Throughput : 6 Gbps
- Threat Protection Throughput : 5 Gbps
- IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 32 / 32 / 24 Gbps
- IPv6 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 32 / 32 / 24 Gbps
- Firewall Latency (64 byte, UDP) : 3 ?s
- Firewall Throughput (Packet per Second) : 36 Mpps
- Concurrent Sessions (TCP) : 4 Million
- New Sessions/Second (TCP) : 450,000
- Firewall Policies : 10,000
- IPsec VPN Throughput (512 byte) : 20 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels : 2,000
- Client-to-Gateway IPsec VPN Tunnels : 50,000
- SSL-VPN Throughput : 4.5 Gbps
- Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 5,000
- SSL Inspection Throughput (IPS, avg. HTTPS) : 4.8 Gbps
- SSL Inspection CPS (IPS, avg. HTTPS) : 4,000
- SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 300,000
- Application Control Throughput (HTTP 64K) : 12 Gbps
- CAPWAP Throughput (1444 byte, UDP) : 14.8 Gbps
- Virtual Domains (Default / Maximum) : 10 / 10
- Maximum Number of FortiSwitches Supported : 72
- Maximum Number of FortiAPs (Total / Tunnel) : 512 / 256
- Maximum Number of FortiTokens : 5,000
- High Availability Configurations : Active-Active, Active-Passive, Clustering
- Height x Width x Length (inches) : 1.75 x 17.0 x 15.0
- Height x Width x Length (mm) : 44.45 x 432 x 380
- Weight : 16.4 lbs (7.4 kg) 16.9 lbs (7.9 kg)
- Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
- Power Consumption (Average / Maximum) : 109 W / 214 W 115 W / 221 W
- Power Input : 100–240V, 50–60Hz
- Current (Maximum) : 6A
- Heat Dissipation : 730 BTU/h 754 BTU/h
- Redundant Power Supplies (Hot Swappable) : optional
- Operating Temperature : 32–104°F (0–40°C)
- Storage Temperature : -31–158°F (-35–70°C)
- Humidity : 10–90% non-condensing
- Noise Level : 48 dBA
- Operating Altitude Up to : 7,400 ft (2,250 m)
- Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
- Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
FortiGate 500E Firewall
- 10 GE SFP+ Slots : 2
- GE RJ45 Interfaces : 8
- GE SFP Slots : 8
- GE RJ45 Management Ports : 2
- USB Ports : 2
- RJ45 Console Port : 1
- Local Storage : 2x 240 GB SSD
- Included Transceivers : 2x SFP (SX 1 GE)
- IPS Throughput : 7.9 Gbps
- NGFW Throughput : 5 Gbps
- Threat Protection Throughput : 4.7 Gbps
- IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 36 / 36 / 22 Gbps
- IPv6 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 36 / 36 / 22 Gbps
- Firewall Latency (64 byte, UDP) : 2 ?s
- Firewall Throughput (Packet per Second) : 33 Mpps
- Concurrent Sessions (TCP) : 8 Million
- New Sessions/Second (TCP) : 300,000
- Firewall Policies : 10,000
- IPsec VPN Throughput (512 byte) : 20 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels : 2,000
- Client-to-Gateway IPsec VPN Tunnels : 50,000
- SSL-VPN Throughput : 5 Gbps
- Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode):10,000
- SSL Inspection Throughput (IPS, avg. HTTPS) : 5.7 Gbps
- SSL Inspection CPS (IPS, avg. HTTPS) : 3,500
- SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 800,000
- Application Control Throughput (HTTP 64K) : 14 Gbps
- CAPWAP Throughput (1444 byte, UDP) : 18 Gbps
- Virtual Domains (Default / Maximum) : 10 / 10
- Maximum Number of FortiSwitches Supported : 72
- Maximum Number of FortiAPs (Total / Tunnel) : 512 / 256
- Maximum Number of FortiTokens : 5,000
- Maximum Number of Registered Endpoints : 2,000
- High Availability Configurations : Active-Active, Active-Passive, Clustering
- FORTIGATE 500E FORTIGATE 501E
- Dimensions and Power :
- Height x Width x Length (inches) : 1.75 x 17.0 x 15.0
- Height x Width x Length (mm) : 44.45 x 432 x 380
- Weight : 16.1 lbs (7.3 kg)
- Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
- Power Consumption (Average / Maximum) : 95 W / 193 W 105 W / 200 W
- Power Input : 100–240V, 50–60Hz
- Current (Maximum) : 6A
- Heat Dissipation : 613 BTU/h
- Redundant Power Supplies (Hot Swappable) : optional
- Operating Temperature : 32–104°F (0–40°C)
- Storage Temperature : -31–158°F (-35–70°C)
- Humidity : 10–90% non-condensing
- Noise Level : 43 dBA
- Operating Altitude Up to : 7,400 ft (2,250 m)
- Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
- Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
FortiGate 600E Firewall
- 10 GE SFP+ Slots : 2
- GE RJ45 Interfaces : 8
- GE SFP Slots : 8
- GE RJ45 Management Ports : 2
- USB Ports : 2
- RJ45 Console Port : 1
- Local Storage : 2x 240 GB SSD
- Included Transceivers : 2x SFP (SX 1 GE)
- IPS Throughput : 10 Gbps
- NGFW Throughput : 9.5 Gbps
- Threat Protection Throughput : 7 Gbps
- IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP):36 / 36 / 27 Gbps
- IPv6 Firewall Throughput(1518 / 512 / 64 byte, UDP):36 / 36 / 27 Gbps
- Firewall Latency (64 byte, UDP) : 2 ?s
- Firewall Throughput (Packet per Second) : 40.5 Mpps
- Concurrent Sessions (TCP) : 8 Million
- New Sessions/Second (TCP) : 450,000
- Firewall Policies : 10,000
- IPsec VPN Throughput (512 byte) : 20 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels : 2,000
- Client-to-Gateway IPsec VPN Tunnels : 50,000
- SSL-VPN Throughput : 7 Gbps
- Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) :10,000
- SSL Inspection Throughput (IPS, avg. HTTPS) : 8 Gbps
- SSL Inspection CPS (IPS, avg. HTTPS) : 5,500
- SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 800,000
- Application Control Throughput (HTTP 64K) : 15 Gbps
- CAPWAP Throughput (HTTP 64K) : 18 Gbps
- Virtual Domains (Default / Maximum) : 10 / 10
- Maximum Number of FortiSwitches Supported : 96
- Maximum Number of FortiAPs (Total / Tunnel) : 1,024 / 512
- Maximum Number of FortiTokens : 5,000
- High Availability Configurations : Active-Active, Active-Passive, Clustering
- Height x Width x Length (inches) : 1.75 x 17.0 x 15.0
- Height x Width x Length (mm) : 44.45 x 432 x 380
- Weight : 16.1 lbs (7.3 kg)
- Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
- Power Consumption (Average / Maximum) : 129 W / 244 W
- Power Source : 100–240V 50–60Hz
- Current (Maximum) : 6A @ 100V
- Heat Dissipation : 832 BTU/h
- Redundant Power Supplies (Hot Swappable) : optional
- Operating Temperature : 32–104°F (0–40°C)
- Storage Temperature : -31–158°F (-35–70°C)
- Humidity : 10–90% non-condensing
- Noise Level : 59 dBA
- Operating Altitude Up to : 9,843 ft (3,000 m)
- Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
- Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
Fortinet FortiGate 60D Rugged Firewall
- FORTIGATE 60E
- Hardware Specifications :
- GE RJ45 WAN / DMZ Ports : 2 / 1
- GE RJ45 Internal Ports : 7
- GE RJ45 PoE/+ Ports : 0
- Wireless Interface : 0
- USB Ports : 1
- Console (RJ45 ) : 1
- Internal Storage : 0
- FORTIGATE 60E-POE
- Hardware Specifications :
- GE RJ45 WAN / DMZ Ports : 2
- GE RJ45 Internal Ports : 0
- GE RJ45 PoE/+ Ports : 8
- Wireless Interface : 0
- USB Ports : 1
- Console (RJ45) : 1
- Internal Storage : 0
- FORTIWIFI 60E
- Hardware Specifications :
- GE RJ45 WAN / DMZ Ports :2 / 1
- GE RJ45 Internal Ports : 7
- GE RJ45 PoE/+ Ports : 0
- Wireless Interface : 802.11 a/b/g/n/ac
- USB Ports : 1
- Console (RJ45) : 1
- Internal Storage : 0
- FORTIGATE 61E
- Hardware Specifications :
- GE RJ45 WAN / DMZ Ports : 2 / 1
- GE RJ45 Internal Ports : 7
- GE RJ45 PoE/+ Ports : 0
- Wireless Interface : 0
- USB Ports : 1
- Console (RJ45) : 1
- Internal Storage : 1x 128 GB SSD
- FORTIWIFI 61E
- Hardware Specifications :
- GE RJ45 WAN / DMZ Ports : 2 / 1
- GE RJ45 Internal Ports : 7
- GE RJ45 PoE/+ Ports : 0
- Wireless Interface : 802.11 a/b/g/n/ac
- USB Ports : 1
- Console (RJ45) : 1
- Internal Storage : 1x 128 GB SSD
- System Performance — Enterprise Traffic Mix :
- IPS Throughput : 400 Mbps
- NGFW Throughput : 250 Mbps
- Threat Protection Throughput : 200 Mbps
- System Performance:
- Firewall Throughput (1518 / 512 / 64 byte UDP packets) : 3 / 3 / 3 Gbps
- Firewall Latency (64 byte UDP packets) : 3 ?s
- Firewall Throughput (Packets Per Second) : 4.5 Mpps
- Concurrent Sessions (TCP) : 1.3 Million
- New Sessions/Second (TCP) : 30,000
- Firewall Policies : 5,000
- IPsec VPN Throughput (512 byte) : 2 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels : 200
- Client-to-Gateway IPsec VPN Tunnels : 500
- SSL-VPN Throughput : 150 Mbps
- Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200
- SSL Inspection Throughput (IPS, avg. HTTPS) : 135 Mbps
- SSL Inspection CPS (IPS, avg. HTTPS) : 135
- SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 75,000
- Application Control Throughput (HTTP 64K) : 650 Mbps
- CAPWAP Throughput (HTTP 64K) : 890 Mbps
- Virtual Domains (Default / Maximum) : 10 / 10
- Maximum Number of FortiSwitches Supported : 16
- Maximum Number of FortiAPs (Total / Tunnel Mode) : 30 / 10
- Maximum Number of FortiTokens : 500
- High Availability Configurations : Active / Active, Active / Passive, Clustering
- Dimensions
- Height x Width x Length (inches) 1.5 x 8.5 x 6.3
- Height x Width x Length (mm) 38 x 216 x 160
- Weight 1.9 lbs (0.9 kg)
- Form Factor : Desktop
Fortinet FortiGate 50E Next Generation Firewall
- Hardware Specifications
- GE RJ45 Switch Ports : 5
- GE RJ45 WAN Ports : 2
- USB Ports : 1
- Console (RJ45) : 1
- System Performance — Enterprise Traffic Mix :
- IPS Throughput : 350 Mbps
- NGFW Throughput : 220 Mbps
- Threat Protection Throughput : 160 Mbps
- System Performance :
- Firewall Throughput : 2.5 Gbps
- Firewall Latency (64 byte UDP packets) : 180 ?s
- Firewall Throughput (Packets Per Second): 375 Kpps
- Concurrent Sessions (TCP) : 1.8 Million
- New Sessions/Second (TCP) : 21,000
- Firewall Policies : 5,000
- IPsec VPN Throughput (512 byte) : 90 Mbps
- Gateway-to-Gateway IPsec VPN Tunnels : 200
- Client-to-Gateway IPsec VPN Tunnels : 250
- SSL-VPN Throughput : 100 Mbps
- Concurrent SS-VPN Users (Recommended Maximum, Tunnel Mode) : 200
- SSL Inspection Throughput (IPS, avg. HTTPS) : 150 Mbps
- SSL Inspection CPS (IPS, avg. HTTPS) : 140
- SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 75,000
- Application CoLntrol Throughput (HTTP 64K) : 450 Mbps
- CAPWAP Throughput (HTTP 64K) : 1.2 Gbps
- Virtual Domains (Default / Maximum) : 5 / 5
- Maximum Number of FortiSwitches Supported : 8
- Maximum Number of FortiAPs (Total / Tunnel Mode) : 10 / 5
- Maximum Number of FortiTokens : 500
- High Availability Configurations : Active/Active, Active/Passive, Clustering
- Dimensions :
- Height x Width x Length (inches) : 1.44 x 8.52 x 5.5
- Height x Width x Length (mm) : 36.5 x 216 x 140
- Weight : 2.015 lbs(0.914 kg)
- Form Factor : Desktop
Fortinet FortiGate 60F Next Generation Firewall
- Brand: Fortinet
- Device Type: Next Generation Firewall (NGFW) and Secure SD-WAN
- Product: Fortinet FortiGate 60F Entry Level Firewall
- Form Factor: Desktop
- Product Description: The FortiGate 60F Series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. It protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution.
- Processor: Fortinet’s patented SoC processors for high-performance security and networking capabilities
- Threat protection: 700 Mbps
- Hard Drive: No
- Data Link Protocol: 10x 1-GbE-RJ45 ports (including 2x WAN, 1x DMZ, 2x FortiLink)
- Included Accessories: Not specified
- Power Supply: External Power Supply Unit
- Power Redundancy: Not specified
- Performance: Firewall Throughput: 10.0 Gbps, IPS Throughput: 1.4 Gbps, NGFW Throughput: 1 Gbps, Threat Protection Throughput: 700 Mbps, Application Control Throughput: 1.8 Gbps, SSL Inspection Throughput: 750 Mbps, VPN Throughput: 6.5 Gbps (IPSec) and 900 Mbps (SSL)
- Dimensions (WxDxH): 8.50 x 6.30 x 1.50 inches
- Weight: 0.90 kg
- Bundled Services:
- FortiCare Premium Support
- FortiGuard Unified Threat Protection (UTP) Bundle
- Enterprise Protection Bundle
- Advanced Threat Protection Bundle (ATP)
- Unified Threat Protection Bundle (UTP)
- Enterprise Protection Bundle
- FortiConverter Service
- FortiCare Elite (15-minute SLA)
- Premium RMA Services (Next-Day Delivery, 4-Hour-Delivery, 4-Hour Delivery, Onsite Engineer, Secure RMA)
- The FortiGate 60F delivers robust security and networking capabilities for enterprise branch offices and mid-sized businesses, leveraging Fortinet's patented SoC processors and AI/ML-powered FortiGuard services
FortiGate 800D Firewall
- Hardware Accelerated 10 GE SFP+ Slots : 2
- Hardware Accelerated GE SFP Slots : 8
- Hardware Accelerated GE RJ45 Ports : 20
- Accelerated GE RJ45 Bypass Interfaces : 4
- GE RJ45 Management / HA Ports : 2
- USB Ports (Client / Server) : 1 / 2
- Console Port : 1
- Onboard Storage : 1x 240 GB SSD
- Included Transceivers : 2x SFP (SX 1 GE)
- IPS Throughput : 4.2 Gbps
- NGFW Throughput : 4 Gbps
- Threat Protection Throughput : 3 Gbps
- IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP):36 / 36 / 22 Gbps
- IPv6 Firewall Throughput(1518 / 512 / 86 byte, UDP):36 / 36 / 22 Gbps
- Firewall Latency (64 byte, UDP) : 3 ?s
- Firewall Throughput (Packet per Second) : 33 Mpps
- Concurrent Sessions (TCP) : 5 Million
- New Sessions/Second (TCP) : 280,000
- Firewall Policies : 10,000
- IPsec VPN Throughput (512 byte) : 20 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels: 2,000
- Client-to-Gateway IPsec VPN Tunnels : 50,000
- SSL-VPN Throughput : 2.2 Gbps
- Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 5,000
- SSL Inspection Throughput (IPS, avg. HTTPS) : 3.9 Gbps
- SSL Inspection CPS (IPS, avg. HTTPS) : 2,400
- SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 380,000
- Application Control Throughput (HTTP 64K) : 9 Gbps
- CAPWAP Throughput (1444 byte, UDP) : 5.5 Gbps
- Virtual Domains (Default / Maximum) : 10 / 10
- Maximum Number of FortiSwitches Supported : 64
- Maximum Number of FortiAPs (Total / Tunnel) : 1024 / 512
- Maximum Number of FortiTokens : 5,000
- High Availability Configurations : Active-Active, Active-Passive, Clustering
- Height x Width x Length (inches) : 1.75 x 17.0 x 16.4
- Height x Width x Length (mm): 44.45 x 432 x 416
- Weight : 19.0 lbs (8.6 kg)
- Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
- Wall Mountable : No
- Power Input : 100–240V AC, 50–60 Hz
- Power Consumption (Average / Maximum) : 128 W / 187 W
- Current (Maximum) : 110V/7A, 220V/3.5A
- Heat Dissipation : 636 BTU/h
- Redundant Power Supplies (Hot Swappable) optional
- Operating Temperature : 32–104°F (0–40°C)
- Storage Temperature : -31–158°F (-35–70°C)
- Humidity : 10–90% non-condensing
- Noise Level : 55 dBA
- Operating Altitude Up to : 7,400 ft (2,250 m)
- Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
- Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
FortiGate 900D Firewall
- Hardware Accelerated : 10 GE SFP+ Slots 2
- Hardware Accelerated GE SFP Slots : 16
- Hardware Accelerated GE RJ45 Ports : 16
- GE RJ45 Management / HA Ports : 2
- USB Ports (Client / Server) : 1 / 2
- Console Port : 1
- Onboard Storage : 1x 256 GB SSD
- Included Transceivers : 0
- IPS Throughput : 4.2 Gbps
- NGFW Throughput : 4 Gbps
- Threat Protection Throughput : 3 Gbps
- IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 52 / 52 / 33 Gbps
- IPv6 Firewall Throughput(1518 / 512 / 86 byte, UDP) : 52 / 52 / 33 Gbps
- Firewall Latency (64 byte, UDP) : 3 ?s
- Firewall Throughput (Packet per Second) : 49.5 Mpps
- Concurrent Sessions (TCP) : 11 Million
- New Sessions/Second (TCP) : 280,000
- Firewall Policies : 10,000
- IPsec VPN Throughput (512 byte) : 25 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels : 2,000
- Client-to-Gateway IPsec VPN Tunnels : 50,000
- SSL-VPN Throughput : 3.6 Gbps
- Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 10,000
- SSL Inspection Throughput (IPS, avg. HTTPS) : 3.9 Gbps
- SSL Inspection CPS (IPS, avg. HTTPS) : 2,400
- SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 800,000
- Application Control Throughput (HTTP 64K) : 10 Gbps
- CAPWAP Throughput (1444 byte, UDP) : 11 Gbps
- Virtual Domains (Default / Maximum) : 10 / 10
- Maximum Number of FortiSwitches Supported : 64
- Maximum Number of FortiAPs (Total / Tunnel) : 1024 / 512
- Maximum Number of FortiTokens : 5,000
- High Availability Configurations : Active-Active, Active-Passive, Clustering
- Height x Width x Length (inches): 1.75 x 17.22 x 18.24
- Height x Width x Length (mm) : 44.45 x 437.5 x 463.2
- Weight : 20.24 lbs (9.18 kg)
- Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
- Power Input : 100–240V AC, 50–60 Hz, 300 W Redundant
- Power Consumption (Average / Maximum): 135 W / 187.2 W
- Current (Maximum): 100V/5A, 240V/3A
- Heat Dissipation:638.75 BTU/h
- Redundant Power Supplies: Yes (Hot Swappable)
- Operating Temperature : 32–104°F (0–40°C)
- Storage Temperature : -31–158°F (-35–70°C)
- Humidity : 10–90% non-condensing
- Noise Level : 49.9 dBA
- Operating Altitude Up to : 7,400 ft (2,250 m)
- Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
- Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
Fortinet FortiGate 60E Series
- Brand: Fortinet
- Model: FortiGate-60E
- Item Weight: 1.74 Kg
- Package Dimensions: 30.5 x 21.1 x 12.2 cm
- Item model number: FortiGate 60E
- Batteries Included: No
- Batteries Required: No
Fortinet FortiGate 80E Series
- Brand: Fortinet
- Model: FG-80E-BDL
- Item Weight: 1.2 Kg
- Product Dimensions: 17.8 x 21.6 x 4.2 cm
- Item model number: FG-80E-BDL
- Operating System: None
- Colour Screen: No
- Wattage: 20 Watts
- Batteries Included: No
- Batteries Required: No
- Wireless Type: 802.11abg
Fortinet FortiGate 40F Firewall
- Brand: Fortinet
- Device Type: Firewall
- Product: Fortinet FortiGate 40F Entry Level Firewall
- Form Factor: Compact fanless desktop
- Product Description: The FortiGate 40F is a high-performance SMB firewall offering superior security features and SD-WAN capabilities.
- Processor: Fortinet's purpose-built security processor technology
- Threat protection: 600 Mbps
- Hard Drive: Not specified in the provided information
- Data Link Protocol: Gigabit Ethernet
- Included Accessories: Rackmount kit available for mounting in a 19 inch rack
- Power Supply: Powered by an external DC power adapter
- Power Redundancy: Not specified in the provided information
- Performance: Up to 1 Gbps IPS throughput and 600 Mbps threat protection throughput
- Dimensions (WxDxH): 1.44 x 5.5 x 8.52 inches
- Weight: 1 kg
- Bundled Services: FortiCare Premium, FortiGuard Enterprise Protection, Unified Threat Protection (UTP), and AI-powered FortiGuard security services for comprehensive cybersecurity.The FortiGate 40F firewall by Fortinet is designed for small to mid-sized businesses and enterprise branch offices, providing robust security features, high-performance throughput, and integrated SD-WAN capabilities in a compact and efficient design.
Fortinet FortiGate 30E Firewall
- Firewall Throughput (1518/512/64 byte UDP): 0.95 Gbps
- IPsec VPN Throughput (512 byte) 1: 75 Mbps
- IPS Throughput (Enterprise Mix) 2: 300 Mbps
- NGFW Throughput (Enterprise Mix) 2, 4: 200 Mbps
- Threat Protection Throughput (Ent. Mix) 2, 5: 150 Mbps
- Firewall Latency: 130 µs
- Concurrent Sessions: 900,000
- New Sessions/Sec: 15000
- Firewall Policies: 5000
- Max G/W to G/W IPSEC Tunnels: 200
- Max Client to G/W IPSEC Tunnels: 250
- SSL VPN Throughput: 35 Mbps
- Concurrent SSL VPN Users (Recommended Maximum, Tunnel Mode): 100
- SSL Inspection Throughput (IPS, avg. HTTPS) 3: 125 Mbps
- Application Control Throughput (HTTP 64K) 2: 400 Mbps
- Max FortiAPs (Total / Tunnel): 2 / 2
- Max FortiSwitches: 8
- Max FortiTokens: 500
- Virtual Domains ( Default/Max): 5 / 5
- Interfaces: 5x GE RJ45
- Power Supplies: Single AC PS
- Form Factor: Desktop
- Variants: WiFi, 3G4G, LENC
SonicWall NSv 50 Firewall
- Interfaces: 4 x 2.5-GbE SFP, 4 x 2.5-GbE, 12 x 1-GbE, 1 GbE Management Console
- Management : CLI, SSH, GUI, GMS
- Nodes Supported : Unrestricted
- RAM : 2 GB
- Site-to-Site VPN Tunnels : 1,000
- Global VPN Clients (Maximum) : 50 (1,000)
- SSL VPN NetExtender Clients (Maximum) : 2 (350)
- VLAN Interfaces : 256
- SonicPoints Wireless Controller : Standard
- WWAN Failover (4G/LTE) : Standard
- Network Switch Management : Standard
- Firewall Inspection Throughput : 3.0 Gbps
- Full DPI Throughput (GAV/GAS/IPS) : 600 Mbps
- Application Inspection Throughput : 1.4 Gbps
- IPS Throughput : 1.4 Gbps
- Anti-Malware Inspection Throughput : 600 Mbps
- IMIX Throughput : 700 Mbps
- SSL DPI Throughput : 300 Mbps
- VPN Throughput : 1.5 Gbps
- Latency : 38 ?s
- Maximum SPI Connections : 1M
- Maximum DPI Connections : 500K
- Default/Maximum Connections (DPI SSL) : 12,000/13,500
- New Connections/Sec : 15,000
- Logging and Reporting : Analyzer, Local Log, Syslog
- Network Traffic Visualization : Standard
- Netflow/IPFIX Reporting : Standard
- SNMP : Standard
- Authentication : LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, Terminal Services, Citrix
- Dynamic Routing : BGP, OSPF, RIP
SonicWall NSv 25 Firewall
- Firewall Throughput : 2.5Gbps
- UTM Throughput : 550Mbps
- IPS Throughput : 1.25Gbps
- AV Throughput : 550Mbps
- IMIX Throughput : 850Mbps
- VPN Throughput : 550Mbps
- Concurrent SPI Connections : 50,000
- Concurrent DPI Connections : 50,000
- New Connections per Second : 5,000
- SSL Inspection / Decryption : 750Mbps
WATCHGUARD FIREBOX M270 WIRELESS FIREWALL
WATCHGUARD FIREBOX T70 WIRELESS FIREWALL
- Get Industry-leading Performance with the Firebox T70
- Many organizations today are dependent on fast, reliable and secure Internet connectivity, but are struggling to find network security solutions that can keep up with their ever growing needs. While many rack-mount solutions can keep up with today’s fastest fiber-to-the-premises speeds, there are not currently any tabletop security appliances available that have this capability, especially when running with additional security services enabled. This makes it difficult for SMBs and distributed enterprises to harness these powerful Internet speeds with the complete UTM protection they require.
WATCHGUARD FIREBOX T55 WIRELESS FIREWALL
- Includes a one (1) year standard support licence subscription.
- Boosts five (5) Gigabit Ethernet RJ45 LAN interfaces.
- No need to compromise protection for strong performance or vice versa.
- Support high-speed LAN backbone infrastructures and Gigabit WAN connections.
- Best-of-breed security components into one platform for stronger security at big cost savings.
- Firewall throughput up to 1Gbps and VPN throughput upto 360Mbps to keep traffic moving.
- Brings enterprise-level network security to small offices and retail environments.
- Cloud-based RapidDeploy technology taking the delay out of the firewall deployment process.
- Allows small businesses to have access to enterprise-grade security.
WATCHGUARD FIREBOX T15 WIRELESS FIREWALL
- Wireless versions of the T35 and T55 use 802.11ac operating in the 2.4 GHz and 5GHz bands for high performance and superior reliability.
- All logging and reporting functions included with purchase, with over 100 dashboards and reports including PCI and HIPAA.
- 5 Gigabit Ethernet ports support high-speed LAN backbone infrastructures & gigabit WAN connections.
- PoE port to power a peripheral device such as a WatchGuard Secure Wi-Fi Access Point, allowing administrators to extend the reach of their networks without having to run costly AC power to the remote device.
WATCHGUARD FIREBOX T55 FIREWALL
- Wireless versions of the T35 and T55 use 802.11ac operating in the 2.4 GHz and 5GHz bands for high performance and superior reliability.
- All logging and reporting functions included with purchase, with over 100 dashboards and reports including PCI and HIPAA.
- 5 Gigabit Ethernet ports support high-speed LAN backbone infrastructures & gigabit WAN connections.
- PoE port to power a peripheral device such as a WatchGuard Secure Wi-Fi Access Point, allowing administrators to extend the reach of their networks without having to run costly AC power to the remote device.
WATCHGUARD FIREBOX T35 FIREWALL
- Wireless versions of the T35 and T55 use 802.11ac operating in the 2.4 GHz and 5GHz bands for high performance and superior reliability.
- All logging and reporting functions included with purchase, with over 100 dashboards and reports including PCI and HIPAA.
- 5 Gigabit Ethernet ports support high-speed LAN backbone infrastructures & gigabit WAN connections.
- PoE port to power a peripheral device such as a WatchGuard Secure Wi-Fi Access Point, allowing administrators to extend the reach of their networks without having to run costly AC power to the remote device.
WATCHGUARD FIREBOX T15 FIREWALL
- Ideal for Small office/home office and small retail environments
- Recommended User Count: 5
- Firewall Throughput: 400 Mbps
- VPN Throughput: 150 Mbps
- UTM Throughput: 90 Mbps
- Concurrent Sessions: 100,000
- 1 Year Standard Support
CRIV-2C SUPPORT UPTO 2 VCPU
- CRiV-2C (Support upto 2 vCPU)
- CRiV-4C (Support upto 4 vCPU)
- CRiV-8C (Support upto 8 vCPU)
- CRiV-12C (Support upto 12 vCPU)
- VMware ESX/ESXi
- VMware Workstation
- VMware Player
- Hyper-V
- KVM
- Citrix XenServer
CRIV 1C SUPPORT UPTO 1 VCPU
- CRiV-2C (Support upto 2 vCPU)
- CRiV-4C (Support upto 4 vCPU)
- CRiV-8C (Support upto 8 vCPU)
- CRiV-12C (Support upto 12 vCPU)
- VMware ESX/ESXi
- VMware Workstation
- VMware Player
- Hyper-V
- KVM
- Citrix XenServer
CYBEROAM 8 PORT 1 GBE FIBER MODULE FIREWALL
- Flexible network connectivity with I/O slots and Flexi Ports
- Supports Copper, Fiber 1GbE/10GbE connectivity options
- Easy, cost-effective upgrade to new technologies
- Consolidates number of network devices, offering reduced complexity, power efficiency, less operational costs
- Flexibility to choose network connectivity options ensures lower costs today and investment protection in future
CYBEROAM CR300ING-XP FIREWALL
CYBEROAM CR200ING-XP FIREWALL
CYBEROAM CR300ING FIREWALL
CYBEROAM CR200ING FIREWALL
CYBEROAM CR100ING FIREWALL
CYBEROAM CR50ING FIREWALL
CYBEROAM CR35WING FIREWALL
CYBEROAM CR35ING FIREWALL
CYBEROAM CR25WING FIREWALL
CYBEROAM CR25ING FIREWALL
CYBEROAM CR15WING FIREWALL
CYBEROAM CR15ING FIREWALL
CYBEROAM CR10WING FIREWALL
CYBEROAM CR10ING FIREWALL
- Flexible network connectivity with I/O slots and Flexi Ports
- Supports Copper, Fiber 1GbE/10GbE connectivity options
- Easy, cost-effective upgrade to new technologies
- Consolidates number of network devices, offering reduced complexity, power efficiency, less operational costs
- Flexibility to choose network connectivity options ensures lower costs today and investment protection in future
CYBEROAM CR2500ING FIREWALL
- 14x10/100/1000 Ethernet ports
- 4x1GbE SFP(Mini GBIC) Ports
- 2 x 10GbE SFP(Mini GBIC) Ports
- 36000 Mbps Firewall Throughput
- 4000 Mbps UTM Throughput
CYBEROAM 4 PORT 10 GBE FIBER MODULE FIREWALL
- Flexible network connectivity with I/O slots and Flexi Ports
- Supports Copper, Fiber 1GbE/10GbE connectivity options
- Easy, cost-effective upgrade to new technologies
- Consolidates number of network devices, offering reduced complexity, power efficiency, less operational costs
- Flexibility to choose network connectivity options ensures lower costs today and investment protection in future
CYBEROAM 4 PORT 1 GBE COPPER MODULE FIREWALL
- Flexible network connectivity with I/O slots and Flexi Ports
- Supports Copper, Fiber 1GbE/10GbE connectivity options
- Easy, cost-effective upgrade to new technologies
- Consolidates number of network devices, offering reduced complexity, power efficiency, less operational costs
- Flexibility to choose network connectivity options ensures lower costs today and investment protection in future
CYBEROAM 8-PORT 1 GBE COPPER MODULE FIREWALL
- Flexible network connectivity with I/O slots and Flexi Ports
- Supports Copper, Fiber 1GbE/10GbE connectivity options
- Easy, cost-effective upgrade to new technologies
- Consolidates number of network devices, offering reduced complexity, power efficiency, less operational costs
- Flexibility to choose network connectivity options ensures lower costs today and investment protection in future
CYBEROAM CR2500ING XP FIREWALL
CYBEROAM CR1500ING XP FIREWALL
CYBEROAM CR1000ING XP FIREWALL
CYBEROAM CR750ING XP FIREWALL
CYBEROAM CR500ING XP FIREWALL
SONICWALL SONICPOINT N2 FIREWALL
SONICWALL SONICPOINT ACI FIREWALL
SONICWALL SONICPOINT ACE FIREWALL
SONICWALL SONICWAVE 432O FIREWALL
SONICWALL SONICWAVE 432I FIREWALL
SONICWALL SONICWAVE 432E FIREWALL
SONICWALL NSV 100 FIREWALL
CISCO FIREPOWER 2110 SECURITY FIREWALL
CISCO ASA 5506-X WITH FIREPOWER FIREWALL
- Site-to-site and remote access VPN and advanced clustering provide highly secure, high-performance access and high availability to help ensure business continuity.
- Granular Application Visibility and Control (AVC) supports more than 3,000 application-layer and risk-based controls that can launch tailored intrusion prevention system (IPS) threat detection policies to optimize security effectiveness.
- The industry-leading Cisco ASA with FirePOWER next-generation IPS (NGIPS) provides highly effective threat prevention and full contextual awareness of users, infrastructure, applications, and content to detect multivector threats and automate defense response.
- Reputation- and category-based URL filtering offer comprehensive alerting and control over suspicious web traffic and enforce policies on hundreds of millions of URLs in more than 80 categories.
- AMP provides industry-leading breach detection effectiveness, a low total cost of ownership, and superior protection value that helps you discover, understand, and stop malware and emerging threats missed by other security layers.
CISCO ASA 5506W X WITH FIREPOWER FIREWALL
CISCO ASA 5506H-X WITH FIREPOWER FIREWALL
- Site-to-site and remote access VPN and advanced clustering provide highly secure, high-performance access and high availability to help ensure business continuity.
- Granular Application Visibility and Control (AVC) supports more than 3,000 application-layer and risk-based controls that can launch tailored intrusion prevention system (IPS) threat detection policies to optimize security effectiveness.
- The industry-leading Cisco ASA with FirePOWER next-generation IPS (NGIPS) provides highly effective threat prevention and full contextual awareness of users, infrastructure, applications, and content to detect multivector threats and automate defense response.
- Reputation- and category-based URL filtering offer comprehensive alerting and control over suspicious web traffic and enforce policies on hundreds of millions of URLs in more than 80 categories.
- AMP provides industry-leading breach detection effectiveness, a low total cost of ownership, and superior protection value that helps you discover, understand, and stop malware and emerging threats missed by other security layers.
CISCO ASA 5508-X WITH FIREPOWER FIREWALL
- Site-to-site and remote access VPN and advanced clustering provide highly secure, high-performance access and high availability to help ensure business continuity.
- Granular Application Visibility and Control (AVC) supports more than 3,000 application-layer and risk-based controls that can launch tailored intrusion prevention system (IPS) threat detection policies to optimize security effectiveness.
- The industry-leading Cisco ASA with FirePOWER next-generation IPS (NGIPS) provides highly effective threat prevention and full contextual awareness of users, infrastructure, applications, and content to detect multivector threats and automate defense response.
- Reputation- and category-based URL filtering offer comprehensive alerting and control over suspicious web traffic and enforce policies on hundreds of millions of URLs in more than 80 categories.
- AMP provides industry-leading breach detection effectiveness, a low total cost of ownership, and superior protection value that helps you discover, understand, and stop malware and emerging threats missed by other security layers.
CISCO ASA 5525-X WITH FIREPOWER FIREWALL
- Site-to-site and remote access VPN and advanced clustering provide highly secure, high-performance access and high availability to help ensure business continuity.
- Granular Application Visibility and Control (AVC) supports more than 3,000 application-layer and risk-based controls that can launch tailored intrusion prevention system (IPS) threat detection policies to optimize security effectiveness.
- The industry-leading Cisco ASA with FirePOWER next-generation IPS (NGIPS) provides highly effective threat prevention and full contextual awareness of users, infrastructure, applications, and content to detect multivector threats and automate defense response.
- Reputation- and category-based URL filtering offer comprehensive alerting and control over suspicious web traffic and enforce policies on hundreds of millions of URLs in more than 80 categories.
- AMP provides industry-leading breach detection effectiveness, a low total cost of ownership, and superior protection value that helps you discover, understand, and stop malware and emerging threats missed by other security layers.
CISCO ASA 5545 X WITH FIREPOWER FIREWALL
- Cisco ASA with FirePOWER Services is centrally managed by the Cisco FireSIGHT Management Center. Management Center provides security teams with comprehensive visibility into and control over activity within the network. Such visibility includes users, devices, communication between virtual machines, vulnerabilities, threats, client-side applications, files, and websites. Holistic, actionable indications of compromise (IoCs) correlate detailed network and endpoint event information and provide further visibility into malware infections.
- Management Center also provides content awareness with malware file trajectory that aids infection scoping and root cause determination to speed time to remediation.
- Cisco Security Manager provides scalable and centralized network operations workflow management. It integrates a powerful suite of capabilities; including policy and object management, event management, reporting, and troubleshooting for Cisco ASA firewall functions. For small-scale and simple deployments, the Cisco Adaptive Security Device Manager (ASDM) is available to provide on-device, GUI-based firewall network operations management.
- Cisco’s enterprise-class management tools help administrators reduce complexity with unmatched visibility and control across NGFW deployments.
- Cisco ASA with FirePOWER Services incorporates an integrated approach to threat defense, reducing capital and operating costs and administrative complexity. It smoothly integrates with the existing IT environment, work stream, and network fabric. The purpose-built appliance family is highly scalable, performs at up to multigigabit speeds, and provides consistent and robust security across branch, Internet edge, and data centers in both physical and virtual environments.
- With Cisco FireSIGHT Management Center, administrators can streamline operations to correlate threats, assess their impact, automatically tune security policy, and easily attribute user identities to security events. Management Center continually monitors how the network is changing over time. New threats are automatically assessed to determine which can affect your business. Response efforts are then focused on remediation, and network defenses are adapted to changing threat conditions. Critical security activities such as policy tuning are automated, saving time and effort, while protections and countermeasures are maintained in an optimal state.
- Cisco FireSIGHT Management Center integrates easily with third-party security solutions through the eStreamer API to streamline operation workflows and fit existing network fabrics.
CISCO ASA 5555-X WITH FIREPOWER FIREWALL
- Site-to-site and remote access VPN and advanced clustering provide highly secure, high-performance access and high availability to help ensure business continuity.
- Granular Application Visibility and Control (AVC) supports more than 3,000 application-layer and risk-based controls that can launch tailored intrusion prevention system (IPS) threat detection policies to optimize security effectiveness.
- The industry-leading Cisco ASA with FirePOWER next-generation IPS (NGIPS) provides highly effective threat prevention and full contextual awareness of users, infrastructure, applications, and content to detect multivector threats and automate defense response.
- Reputation- and category-based URL filtering offer comprehensive alerting and control over suspicious web traffic and enforce policies on hundreds of millions of URLs in more than 80 categories.
- AMP provides industry-leading breach detection effectiveness, a low total cost of ownership, and superior protection value that helps you discover, understand, and stop malware and emerging threats missed by other security layers.
CISCO FIREPOWER 9000 SERIES FIREWALL
CISCO FIREPOWER 4100 SERIES FIREWALL
CISCO FIREPOWER 2100 SERIES FIREWALL
CISCO ASA 5500 X WITH FIREPOWER SERVICES FIREWALL
SONICWALL TZ600 SERIES FIREWALL
SONICWALL TZ500 SERIES FIREWALL
SONICWALL TZ400 SERIES FIREWALL
SONICWALL TZ SOHO SERIES FIREWALL
SONICWALL TZ300 SERIES FIREWALL
- The SonicWALL TZ series of next generation firewalls (NGFW) is ideally suited for any organization that requires enterprise-grade network protection.
- SonicWALL TZ series firewalls provide broad protection with advanced security services consisting of onbox and cloud-based anti-malware, anti-spyware, application control, intrusion prevention system (IPS), and URL filtering. To counter the trend of encrypted attacks, the SonicWALL TZ series has the processing power to inspect encrypted SSL connections against the latest threats.
- Backed by the SonicWALL Global Response Intelligent Defense (GRID) network, the SonicWALL TZ series delivers continuous updates to maintain a strong network defense against cybercriminals. The SonicWALL TZ series is able to scan every byte of every packet on all ports and protocols with almost zero latency and no file size limitations.
- The SonicWALL TZ series features Gigabit Ethernet ports, optional integrated 802.11ac wireless, IPSec and SSL VPN, failover through integrated 3G/4G support, load balancing and network segmentation. The SonicWALL TZ series UTM firewalls also provide fast, secure mobile access over Apple iOS, Google Android, Amazon Kindle, Windows, MacOS and Linux platforms.
- The SonicWALL Global Management System (GMS) enables centralized deployment and management of SonicWALL TZ series firewalls from a single system.
FORTIGATE 60D RUGGED FIREWALL
FORTIGATE 30E FIREWALL
FORTIGATE 60E FIREWALL
FORTIGATE 80E FIREWALL
FORTIGATE 90E FIREWALL
SONICWALL NSA 9250 FIREWALL
SONICWALL NSA 6650 FIREWALL
SONICWALL NSA 5650 FIREWALL
SONICWALL NSA 4650 FIREWALL
SONICWALL NSA 3650 FIREWALL
- Block more attacks with patent-pending Real-Time Deep Memory Inspection (RTDMITM) & Patented Real-Free Deep Packet Inspection (RFDPI®) technology
- Combine cloud-based and on-box threat prevention featuring multi-engine sandboxing
- Industry-validated high security effectiveness
- Get high-speed performance with 40-Gigabit Ethernet ports
- Security that scales to protect millions of encrypted connections
- Decrypt and inspect TLS/SSL and SSH traffic in real time
- Leverage powerful SonicOS operating system
- Gain application intelligence and control
- Segment your network into zones
- Deploy at the network edge or data center core
SONICWALL NSA 2650 FIREWALL
- Block more attacks with patent-pending Real-Time Deep Memory Inspection (RTDMITM) & Patented Real-Free Deep Packet Inspection (RFDPI®) technology
- Combine cloud-based and on-box threat prevention featuring multi-engine sandboxing
- industry-validated high security effectiveness
- Get high-speed performance with 40-Gigabit Ethernet ports
- Security that scales to protect millions of encrypted connections
- Decrypt and inspect TLS/SSL and SSH traffic in real time
- Leverage powerful SonicOS operating system
- Gain application intelligence and control
- Segment your network into zones
- Deploy at the network edge or data center core
FORTIGATE 100E FIREWALL
FORTIGATE 200E FIREWALL
FORTIGATE 300E FIREWALL
FORTIGATE 600D FIREWALL
- This breakthrough threat prevention performance allows organizations to run NSS Labs Recommended intrusion prevention and application control and VB100 certified antimalware capabilities for deeper inspection. Rich console views and reports together with a flexible policy engine provide the visibility and control to empower employees yet secure your enterprise.
- Finally, these features of the FortiGate FortiOS Network Security Platform are routinely validated by independent real-world tests and are consistently getting superior ratings in security effectiveness.
FORTIGATE 800D FIREWALL
- This breakthrough threat prevention performance allows organizations to run NSS Labs Recommended intrusion prevention and application control and VB100 certified antimalware capabilities for deeper inspection. Rich console views and reports together with a flexible policy engine provide the visibility and control to empower employees yet secure your enterprise.
- Finally, these features of the FortiGate FortiOS Network Security Platform are routinely validated by independent real-world tests and are consistently getting superior ratings in security effectiveness.
FORTIGATE 900D FIREWALL
- 5 times faster hardware accelerated next generation firewall offers best-in-class price/performance ratio
- Integrated high port density delivers maximum flexibility and scalability
- NSS Labs Recommended NGFW and NGIPS with consolidated security delivers top-rated protection
- Application control plus identity and device-based policy enforcement provides more granular protection
- Intuitive management interface enables broad and deep visibility that scales from a single FortiGate to thousands
SONICWALL NSSP 12800 FIREWALL
- Stateful inspection firewall throughput :300 Mbps
- Stateful inspection firewall throughput (multiprotocol) :50 Gbps
- Concurrent firewall connections :55 million
- Firewall latency (UDP 64B microseconds):3.5
- New connections per second : 800,000
- IPsec VPN throughput (450B UDP L2L test) : 15 Gbps
- IPsec/Cisco AnyConnect/Apex site-to-site VPN peers :20,000
- Security contexts (included; maximum) :10; 250
- High availability: active/standby
SONICWALL NSSP 12400 FIREWALL
- Firewall throughput : 59 Gbps
- IPS throughput : 26 Gbps
- Anti-malware throughput : 16 Gbps
- Full DPI throughput : 17 Gbps
- IMIX throughput : 14 Gbps
- Maximum DPI connections : 6,000,000
- New connections/sec : 430,000/sec
- Storage module : 2 x 480 GB
FORTIGATE 1000D FIREWALL
FORTIGATE 1200D FIREWALL
- High Performance, Reliability and Security
- 10x data center and 5x next generation performance
- Top rated security capabilities
- Flexible firewall personalities for core or edge deployment
- Low latency and IPv6 parity
FORTIGATE 1500D FIREWALL
- Next Generation Visibility and Control
- Powerful application and threat inspection
- Breakthrough performance, and superior cost per gigabit protected
- User- and device-based views and policies
- Freedom to add more functions like Advanced Threat
- Protection and Secure Web Gateway
- FortiOS 5, the most complete, battletested set of security functions to protect your network and data
FORTIGATE 2000E FIREWALL
FORTIGATE 2500E FIREWALL
FORTIGATE 3000D FIREWALL
- Industry-leading 10x data center firewall offers exceptional throughput and ultra-low latency
- Highly available and Virtual Domain (VDOM) support for multi-tenant data center environment
- Integrated high-speed 10 GE+ port delivers maximum flexibility and scalability
- Intuitive management interface enables broad and deep visibility and control
- NSS Labs Recommended consolidated security delivers top-rated protection
FORTIGATE 3100D FIREWALL
- Industry-leading 10x data center firewall offers exceptional throughput and ultra-low latency
- Highly available and Virtual Domain (VDOM) support for multi-tenant data center environment
- Integrated high-speed 10 GE+ port delivers maximum flexibility and scalability
- Intuitive management interface enables broad and deep visibility and control
- NSS Labs Recommended consolidated security delivers top-rated protection
FORTIGATE 3700D FIREWALL
- Performance and Reliability for High Bandwidth Networks
- Breakthrough IPv4 to IPv6 firewall performance parity
- Flexible firewall personalities enable deployment at the Edge or Core
- Compact 3U footprint conserves rack space and minimizes energy consumption
- Freedom to add integrated security technologies (such as IPS, App Control, VPN)
- Cloud-ready multi-tenant support and APIs for rapid orchestration
- FortiOS 5 delivers the most complete, battle-tested set of security functions to protect your network and data
FORTIGATE 3800D FIREWALL
- Flexible Deployment
- The FortiGate 3800D Series give you the flexibility to choose the firewall personality that best fits your requirements at the Edge or Core. You can take advantage of the high port density for physical segmentation of your network, as well as the virtual domains (VDOMs) for virtual segmentation.
- Industry-leading 10x data center firewall offers exceptional throughput and ultra-low latency
- Highly available and Virtual Domain (VDOM) support for multi-tenant data center environment
- Integrated high-speed 10 GE+ port delivers maximum flexibility and scalability
- Intuitive management interface enables broad and deep visibility and control
- NSS Labs Recommended consolidated security delivers top-rated protection
FORTIGATE 3980E FIREWALL
- Powered by SPU
- Custom SPU processors deliver the power you need to detect malicious content at multi-Gigabit speeds
- Other security technologies cannot protect against today’s wide range of content- and connection-based
- threats because they rely on general-purpose CPUs, causing a dangerous performance gap SPU processors provide the performance needed to block emerging threats, meet rigorous third-party certifications, and ensure that your network security solution does not become a network bottleneck
FORTINET FORTIGATE 6500F FIREWALL
FORTIGATE 6300F FIREFALL
The new FortiGate 6000 NGFW appliances feature the latest Fortinet innovation, to deliver leading edge security, performance, and connectivity for the most demanding network needs. The 6000 series combines unprecedented threat protection and SSL inspection performance in an easy to manage, compact appliance.
FORTIGATE 3960E FIREWALL
- Delivers industry's best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
- Unprecedented 1 Terabit/second network firewall throughput in an appliance form factor for FortiGate 3980E
- Provides industry-leading performance and protection for SSL encrypted traffic
- Independently tested and validated best security effectiveness and performance
- Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin and AV Comparatives
- Delivers extensive routing, high-speed interfaces, and high performance VPN capabilities to address performance and connectivity needs of large-scale data center and cloud applications
- Enables flexible deployment such as Next Generation Firewall and Secure SD-WAN
FORTIGATE 5001E SECURITY SYSTEM GUIDE FIREFALL
FORTIGATE 7030E FIREFALL
FORTIGATE 7040E SYSTEM GUIDE FIREFALL
FORTIGATE 7060E CHASSIS FIREFALLS
- FIM modules are hot swappable interface modules that provide data and management interfaces, base
- backplane switching and fabric backplane session-aware load balancing for the chassis. The FIM modules
- include an integrated switch fabric and DP2 processors to load balance millions of data sessions over the chassis
- fabric backplane to FPM processor modules. The following FIM modules are available:
- The FIM-7901E includes thirty-two front panel 10GigE SFP+ fabric channel interfaces (A1 to A32). These interfaces are connected to 10Gbps networks. These interfaces can also be configured to operate as Gigabit Ethernet
- interfaces using SFP transceivers.
- The FIM-7904E includes eight front panel 40GigE QSFP+ fabric channel interfaces (B1 to B8). These interfaces are
- connected to 40Gbps networks. Using 40GBASE-SR4 multimode QSFP+ transceivers, each QSFP+ interface can
- also be split into four 10GBASE-SR interfaces and connected to 10Gbps networks.
- The FIM-7910E (shown in FIM modules on page 6) includes four front panel 100GigE CFP2 fabric channel
- interfaces (C1 to C4). These interfaces can be connected to 100Gbps networks. Using 100GBASE-SR10 multimode
- CFP2 transceivers, each CFP2 interface can also be split into ten 10GBASE-SR interfaces and connected to 10Gbps networks.
- The FIM-7920E includes four front panel 100GigE QSFP28 fabric channel interfaces (C1 to C4). These interfaces can be connected to 100Gbps networks. Using a 100GBASE-SR4 QSFP28 or 40GBASE-SR4 QSFP+ transceiver, each QSFP28 interface can also be split into four 10GBASE-SR interfaces and connected to 10Gbps networks
