Switches Dealers Chennai, Tamilnadu

DLINK DGS 1210 Smart Gigabit Switch

• Brand: DLINK
• Model: DGS-1210-52
• Product: DLINK DGS 1210 Smart Gigabit Switch
• Interfaces: 48 x 10/100/1000BASE-T 4 x 100/1000 Mbps GbE/SFP combo ports
• Cables: CAT 5 UTP, CAT. 5e (100 m max.)
• Port Standard: 10 BASE-T Ethernet (twisted-pair copper) according to IEEE 802.3
• Ethernet (twisted-pair copper) 100BASE-TX IEEE 802.3u, Flow control in IEEE 802.3x
• Duplex: For 10/100 Mbps, full- or half-duplex, 1000 Mbps full-duplex
• Media Interface: All Twisted pair auto MDI/MDIX adjustments
• Hardware : F2
• Certifications : EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
• Safety: CB, UL, BSMI, CCC
• MTBF: 400,667 hours
• Optical switching: Optical switching
• Transmission:  Store and Forward
• MAC Address Table: 16 k Entities
• Static MAC: 256 Entities
• Forwarding byte: 77.44 Mpps
• Memory: Buffer(12 Mbits); CPU(DDR3 128 MB);Flash(32 MB)
• Link/Active/Speed per Port: Yes

Cisco CBS350 08T 8 Port Managed Ethernet Switch

• Brand: Cisco
• Model no: BS350-08T-4G-IN
• Product: CBS350-08T-4G-IN 8 Port Managed Ethernet Switch
• Specifications: CBS350-8P-2G
• Capacity in millions of packets: 14.88 mpps
• Switching capacity: 20.0 Gbps
• Flash Memory: 256MB
• CPU: 800 MHz ARM
• DRAM: 256MB
• Packet Buffer: 1.5MB
• MAC addresses: 16K
• Head-of-line (HOL) blocking: HOL blocking prevention
• Operating temperature: 23° to 122°F (-5° to 50°C)
• Operating humidity: 10% to 90%, relative, noncondensing
• Certifications: UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
• Quality of Service (QoS): 8 hardware queues, Port based; 802.1p VLAN priority-based; Strict priority and Weighted Round-Robin (WRR)
• Loopback detection: Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP

Cisco CBS350 24T 24 Port Managed Ethernet Switch

• Brand: Cisco
• Product: CBS35024T4G 24 Port Managed Ethernet Switch
• Model Name/Number: CBS350-24T-4G
• Ports: 24 Port Managed Ethernet Switch
• Area Network Type: LAN Capable
• Operating Temperature: 23 to 122 DegreeF
• Switch Capacity: 56.0
• Buffer Size: 1.5MB
• Rj45 Ports: 24 x Gigabit Ethernet
• Fan Quantity: Fanless
• Temperature: 23 Degree to 122 DegreeF (-5 Degree to 50 DegreeC)
• Fan: Fanless
• Switching Capacity In Gbps: 56
• Product Dimension: 445 x 240 x 44 mm
• Weight: 2.63 kg (5.80 lb)
• Color: black

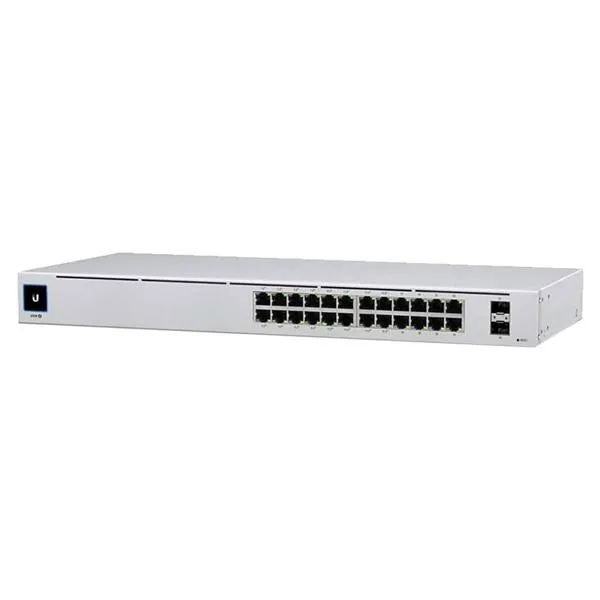

Ubiquiti UniFi Usw Pro 24 88 Gbps Network Switch

• Brand: Ubiquiti
• Product: UniFi Usw Pro 24 Network Switch
• Enclosure material: SGCC steel
• Ethernet: PoE Speed/link/activity
• Management interface: Ethernet In-Band
• Networking interface: (24) GbE RJ45 ports; (2) 1/10G SFP+ ports
• PoE interface: (16) PoE/PoE+ (Pins 1, 2+; 3, 6-); (8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
• Total non-blocking throughput: 44 Gbps
• Switching capacity: 88 Gbps
• Forwarding rate: 65.472 Mpps
• Power method: (1) Universal input, 100—240V AC, 50/60 Hz; (1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A
• Power supply: AC/DC, internal, 450W
• Supported voltage range: 100—240V AC
• Max. power consumption: 50W (Excluding PoE output)
• Total available PoE: 400W
• Max. PoE wattage per port by PSE: PoE+: 32W; PoE++: 64W
• Voltage range PoE mode PoE: 44—57V; PoE+: 50—57V
• ESD/EMP protection Air: ± 16kV, contact: ± 12kV
• LCM display: (1) 1.3" touchscreen
• Button: Factory reset
• Shock and vibration: ETSI300-019-1.4 Standard
• Ambient operating temperature: -5 to 40° C (23 to 104° F)
• Ambient operating humidity: 10 to 90% noncondensing
• Product Dimensions: 442 x 285 x 44 mm
• Certifications: CE, FCC, IC
• UniFi Network: Version 5.10.5 and later

D Link DGS 3000 28XS Managed Gigabit Switch

• Brand : D-Link
• Model : DGS-1210-12TS
• Color : Black
• 1000M SFP Interface : 24
• 10G SFP+ Interface : 4
• Auto MDI/MDIX : Yes (copper ports)
• Console Port : Yes
• Switching Capacity : 128 Gbps
• Max. Packet Forwarding Rate : 95.24 Mpps
• Dimension : 440 x 210 x 44mm
• Weight : 2.10 kg
• Operation Temperature : -5 -50°C
• Storage Temperature : -20-70°C
• Operation Humidity : 0 ~ 95% RH
• Storage Humidity : 0 ~ 95% RH
• Operating Altitude : 2000m
• Maximum Power Consumption : 53.4 W
• Power Input : 100 - 240 VAC
• CPU Speed : 400MHz
• DRAM Size : 256MB
• Flash Memory Size : 32MB
• Packet Buffer Size : 448K bits
• FAN : 2 DC Fan

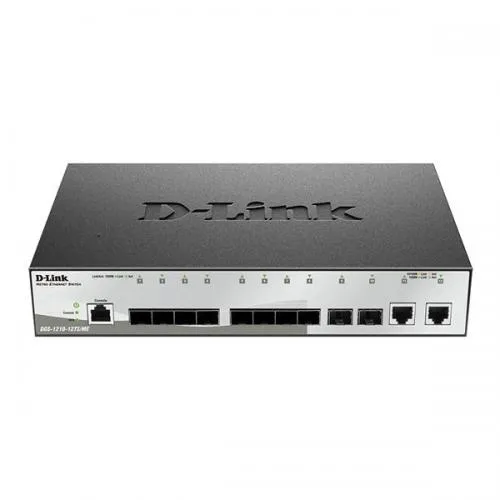

D Link DGS 1210 12TS Gigabit Fiber Metro Ethernet Switch

• Brand : D-Link
• Model : DGS-1210-12TS
• Color : Black
• SFP ports : 10
• 10/100/1000BASE-T ports : 2
• 1000Base-T Interface : 2
• 1000M SFP Interface : 10
• Console Port : Yes
• Switch Capacity : 24 Gbps
• Max. Packet Forwarding Rate : 17.86 Mpps
• Store & Forwarding Forwading : Yes
• Dimension : 280mm x 180mm x 44mm
• Weight : 1.17 kg
• Power Input : 100-240 VAC
• CPU Speed : 400MHz
• DRAM Size : 256MB
• Flash Memory Size : 32MB
• Packet Buffer Size : 1.5MB
• FAN : Fanless
• Operation Temperature : -5 - 50°C
• Storage Temperature : -20-70°C
• Operation Humidity : 0% - 95% RH
• Storage Humidity : 0% ~ 95% RH
• Operating Altitude : 1500 meters
• Maximum Power Consumption : 13.6 W/100 V<br> 13.85 W/240 V
• Standby Power Consumption : 7.28 W/100V / 7.49 W/240V
• Maximum Heat Dissipation : 47.25 BTU/hr
• MTBF : 405,083 hours
• MAC Address Table Size : 16K
• 802.3x Flow Control : Yes

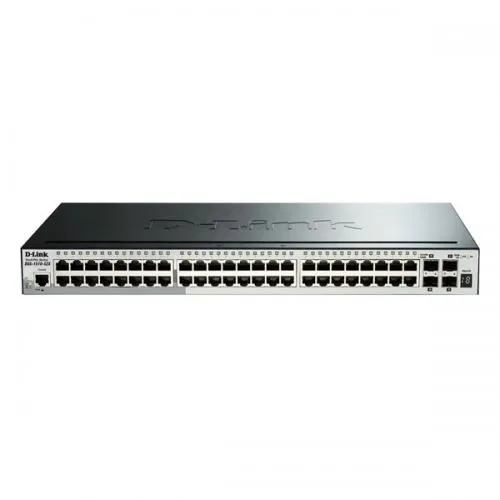

D Link DGS 1510 52X Smartpro Stackable Switch

• Brand : D-Link
• Model : DGS-1510-52X
• Color : Black
• 1000Base-T Interface : 48
• 10G SFP+ Interface : 4
• Auto MDI/MDIX : Yes
• Console Port : Yes
• 10/100/1000BASE-T ports : 48
• 10G SFP+ ports : 4
• Switch Capacity : 176 Gbps
• Max. Packet Forwarding Rate : 130.95 Mpps
• Dimension : 440mm x 210mm x 44mm
• Weight : 3.1Kg
• Operation Temperature : -5 -50°C
• Storage Temperature : -20-70°C
• Operation Humidity : 0% ~ 95% RH
• Storage Humidity : 0% ~ 95% RH
• Maximum Power Consumption : 48 W
• Standby Power Consumption : 30.4Watt/100V 30.3Watt/240V
• Maximum Heat Dissipation : 163.68 BTU/hr
• Power Input : 100 - 240 VAC
• CPU Speed : 400MHz
• DRAM Size : 256MB
• Flash Memory Size : 32MB
• Packet Buffer Size : 3MB

D Link DGS 1250 28X Gigabit Smart Switch

• Brand : D-Link
• Model : DGS-1250-28X
• 10/100/1000 BASE-T : 24
• 10G SFP + ports : 4
• Switch Capacity : 128 Gbps
• Max. Packet Forwarding Rate : 95.24 Mpps
• Dimension : 440mm x 140 mm x 44mm
• Maximum Heat Dissipation : 104.346 BTU/hr (100 V)100.936 BTU/hr (240 V)
• Weight : 1.75 kg
• Operation Temperature : -5 - 50°C
• Storage Temperature : -20-70°C
• Operation Humidity : 0% - 95% RH
• Storage Humidity : 0% ~ 95% RH
• Operating Altitude : 1500 meters
• Maximum Power Consumption : 30.6 W/100 V29.6 W/240 V
• 1000Base-T Interface : 24
• 10G SFP+ Interface : 4
• RJ-45 Management Port : No
• MTBF : 743,482.45 hours
• Power Input : 100-240 VAC
• CPU Speed : 800MHz
• DRAM Size : DDR3 2G
• Flash Memory Size : 64MB
• Packet Buffer Size : 12MBits
• FAN : Yes

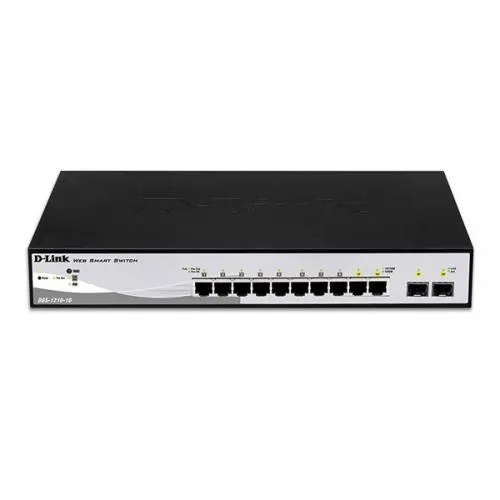

D link DGS 1210 10 8 Port Gigabit Smart Switch

• Brand : D-Link
• Model : DGS-1210-10
• Color : Grey
• 802.1Q VLAN Yes
• 802.1X : Yes
• Port based 802.1X Authentication : Yes
• 802.3x Flow Control : Yes
• 10/100/1000BASE-T ports : 8
• SFP ports : 2
• CPU Speed : 500MHz
• DRAM Size : DDR3 128MB
• Dimension : 280mm x 126 mm x 44mm
• Maximum Power Consumption : 6.31 W/100 V<br> 6.33 W/240 V
• MTBF : 1,380,058 hours
• Operating Altitude : 1500 meters
• Operation Humidity : 0% - 95% RH
• Operation Temperature : -5 - 50°C
• Standby Power Consumption : 2.03 W/100V / 2.07 W/240V
• Storage Humidity : 0% ~ 95% RH
• Storage Temperature : -20-70°C
• Weight : 0.98 kg
• Simple Network Time Protocol (SNTP) : Yes
• Flash Memory Size : 32MB
• Packet Buffer Size : 4.1MBits
• FAN : Fanless
• Jumbo Frame : 10,000 Bytes
• Switch Capacity : 20 Gbps
• Max. Packet Forwarding Rate : 14.88 Mpps
• Power Input : 100-240 VAC

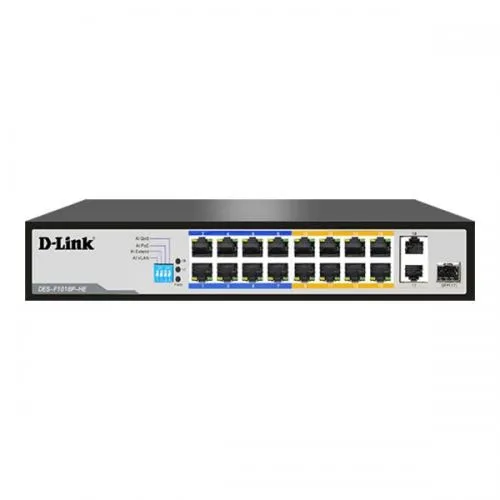

D link DES F1016P HE Unmanaged PoE switch

• Brand : D-Link
• Model : DES-F1016P-HE
• Network Interface : 16 10/100Mbps PoE RJ45 port?9-16 port can support ultra-long-distance transmission of 500 meters at 100Mbps (with a long-distance splitter)
• Transmission Rate : 2 10/100/1000Mbps RJ45 port
• Interface : 1 Gigabit SFP Combo port
• Performance : MAC address : Support 8K MAC address, Forwarding Mode : Storage forwarding, Bandwidth : 7.2Gbps, Packet Filtering / Forwarding Rates: 5.36Mpps
• LEDs Indicator : 18 Link/Act indicator light, 16 POE indicator light, 1 Power indicator light
• POE : Total power budget : 150W, Single port : 30W max. (per PoE port)
• Power : Input: 100-240V/50-60Hz
• Lightning protection : 6KV
• Physical specifications : Dimensions (LxWxH): 285mm×180mm×44mm
• Environmental norms : Operating Temperature: 0°~50° C, Storage Temperature: -40°C~70°C, Operating Humidity: 5% to 90% RH non-condensing, Storage Humidity: 5% to 90% RH non-condensing
• EMC : CE
• Warranty : 1 Years Warranty

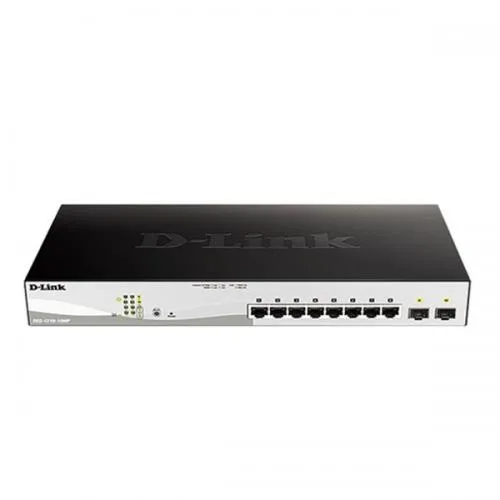

D link DGS 1210 10MP Web Smart PoE switch

• Brand : D-Link
• Model : DGS-1210-10MP
• 1000Base-T PoE Interface : 8
• 1000M SFP Interface : 2
• PoE Budget : 130W
• MAC Address Table Size : 8K
• 802.3x Flow Control : Yes
• Auto MDI/MDIX : Yes
• 10/100/1000BASE-T PoE ports : 8
• SFP ports : 2
• Switch Capacity : 20 Gbps
• Max. Packet Forwarding Rate : 14.88 Mpps
• Store & Forwarding Forwading : Yes
• Dimension : 330mm x 180 mm x 44mm
• Weight : 1.77 kg
• Power Input : 100-240 VAC
• CPU Speed : 500MHz
• DRAM Size : DDR3 128MB
• Flash Memory Size : 32MB
• Operation Temperature : -5 - 50°C
• Storage Temperature : -20-70°C
• Operation Humidity : 0% - 95% RH
• Storage Humidity : 0% ~ 95% RH
• Operating Altitude : 1500 meters
• Maximum Power Consumption : PoE on <br>152.3 W/100 V <br>148.7 W/240 V PoE off <br>8.5 W/100 V <br>9.4 W/240 V
• Standby Power Consumption : 4.3 W/100V / 5.2 W/240V
• Maximum Heat Dissipation : 519.51 BTU/hr (100 V) <br>507.23 BTU/hr (240 V)
• Warranty : 5 Years Warranty

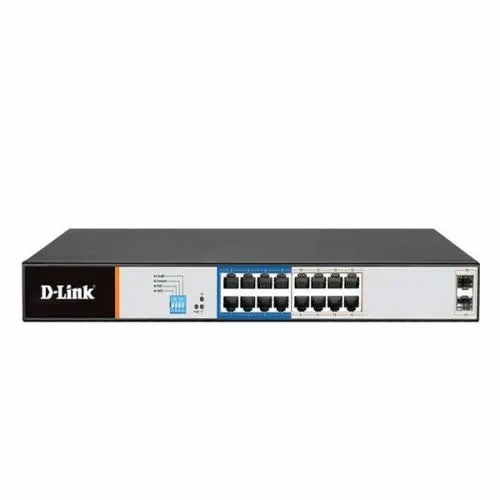

D link DGS F1018P E PoE Switch

• Brand : D-Link
• Model : DGS-F1018P E
• Size : Desktop (with Mounting Kit)
• Network Interface : 16 10/100/1000 BASE-T ports, 2 SFP
• Standards : Auto MDI/MDI-X adjustment on all ports
• Media Interface Exchange : CE Class B, FCC Part 15?Class B, VCCI Class B, C-Tick
• Lightning protection : 6KV
• Switching Fabric : 36 Gbps
• Transmission Method : Adopt Store-and-forward
• Data Transfer Rates : Gigabit Ethernet -1000 Mbps, Ethernet -100 Mbps
• Physical specifications : Dimensions (LxWxH): 440 x 180 x 44mm, Weight: 3kg
• POE Power Budget : 150W (30 W max. per PoE port)
• Total Power : 150W
• Humidity : Operating: 0% to 95% RH non-condensing, Storage: 0% to 95% RH non-condensing
• Warranty : 1 Years Warranty

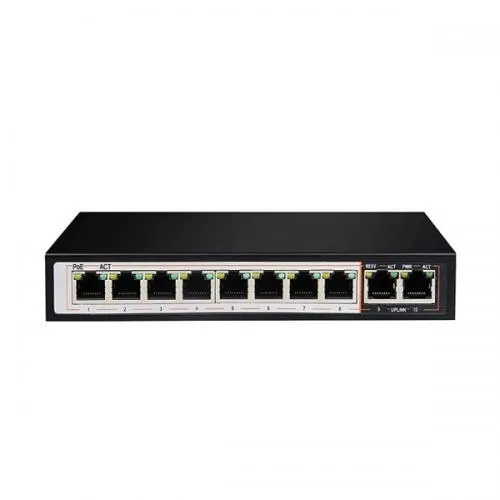

D link DGS F1010P E 8 Port PoE Switch

• Brand : D-Link
• Model : DGS-F1010P E 8 Port
• Network Interface : 8 10/100/1000Mbps PoE RJ45 port (port 1 ~port 8) , 2 10/100/1000Mbps uplink RJ45 port (port 9~port 10)
• Transmission Rate : 10/100/1000Mbps Each port supports MDI / MDIX auto-flip and auto, Network interface:10BASE-T or 100BASE-TX Ethernet RJ-45 port
• Protocols and Standards : IEEE802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, ANSI/IEEE 802.3 NWay auto-negotiation, IEEE802.3x Flow Control, IEEE 802.3af/at standard
• Performance : Bandwidth: 20 Gbps (no block), Network delay (100 to 100M bps): maximum 20 ?s (using 64byte packet), Frame filtering and transmission rate, 10M: 14,800pps, 100M: 148,800pps, 1000M: 1488,00pps
• LEDs Indicator : Power, LINK/ACT?POE
• POE Pin : 1/2(+) 3/6(-)
• Total Power : 120W
• Lightning protection : 6KV
• Physical specifications : Dimensions (LxWxH): 184 x 94 x 27mm, Weight: 1.05kg
• Environmental norms : Operating Temperature: 0°~40°C Storage Temperature: -10°C~70°C, Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
• EMC : CE Class B, FCC Part 15?Class B, VCCI Class B, C-Tick
• Warranty : 1 Years Warranty

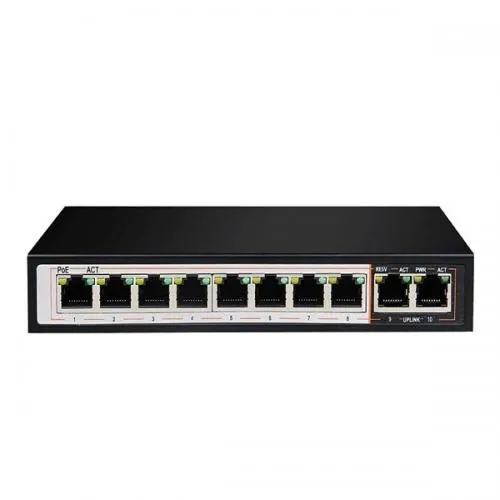

D link DES F1010P E PoE Switch

• Brand : D-Link
• Model : DES-F1010P-E
• Port Type : Fast Ethernet
• Product Series : Long Reach PoE Switches
• Number of Ports : 5 - 8
• PoE Type Required : PoE|250m Long Reach PoE
• Design : Metal|Fanless
• Ethernet Speed : 10/100
• LAN Ports : 10
• PoE ports : 8 Ports
• Housing : Metal
• Power Supply : External
• Fanless Design for Silent Operation : Yes
• Compact Design for Home and Office Use : Yes
• Quick, Simple Plug-and-Play Installation : Yes
• Dimensions (Size) : 184 x 75 x 27 mm
• Warranty : 1 Years Warranty

KVM SV231DD2DUA 2 Port USB DVI Switch

• Front panel push-buttons and Hot key functions for easy switching
• Supports resolutions up to 1920x1200 (DVI-Digital)
• USB 2.0 hub for peripheral sharing (Thumb drives, external hard drives, web cams, etc.)
• Audible tone confirms port switchingCombined or independent switching of audio ports
• EDID retention - eliminates hassle when switching between computers as the KVM "remembers" monitor settings
• Supports all USB capable operating systems (Windows 98e/SE/ME/2000/XP/Vista/7, Linux, Mac OS, etc.)
• Rugged, all-metal chassis for use in harsh environments
• TMDS compliant to support DDC2B emulation and HDCP for digital contents protection
• Status LED display for easy port status monitoring

KVM SV431 USBAEGB 4 Port USB VGA Switch

• This Rack Mountable USB KVM Switch supports high resolution video applications (up to 1920x1440 pixels supported) and audio switching between connected computers,
• and provides an integrated USB 2.0 hub that lets the selected computer have access shared high speed USB peripherals.
• Providing control of up to four computers from a single USB keyboard and mouse peripheral set
• the switch features a sturdy all metal chassis and can be rackmounted in a
• server rack/cabinet using an optional Rackmount Bracket kit (SV431RACK) - minimizing clutter and saving space

KVM RKCONS1716GB 16 Port 1U Rackmount LCD Switch

• Display
• Contrast ratio (typical): 500:1
• Display: TFT LCD
• Display brightness:250 cd/m2
• Display diagonal: 17 "
• Display Resolution: 1280 x 1024 pixels
• On Screen Display (OSD)
• Viewing angle, horizontal: 140 °
• Viewing angle, vertical: 140 °
• Ports & interfaces
• I/O ports: 16 x VGA
• Interface: VGA, PS/2
• Technical details
• Colour of product: Black
• Form Factor: 1 U
• Mean time between failures (MTBF): 60000 h
• Operating relative humidity (H-H): 10 - 90 %
• Operational conditions
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -20 - 60 °C
• Other features
• Dimensions (WxDxH): 440 x 470 x 44 mm
• Packaging data
• Package weight:19600 g
• Power
• AC adapter input voltage: 110 - 240 V
• Weight & dimensions
• Depth: 470 mm
• Height:44 mm
• Weight:11000 g
• Width: 440 mm

KVM SV431DVIUAHR 4 Port USB DVI Switch

• Dual Link DVI interface supports higher resolution applications, allowing you to take full advantage of your larger high resolution monitor’s
• workspace Integrated USB 2.0 hub allows the user to have full multimedia control and share
• USB peripherals eliminating the expense of duplicate devices Supports even higher resolutions (exceeding 2560x1600) by using a lower refresh rate. Example 3840x2400 30Hz
• Control up to 4 high resolution multimedia computers from a single console
• All metal chassis for long-term durability Supports dual link DVI resolutions up to 2560x1600 60HzHigher resolutions up to 3840x2400 supported at lower refresh rates
• Control up to 4 high resolution multimedia computers from a single console

KVM SV1631DUSBU 16 Port USB OSD Switch

• This 16 Port USB KVM Switch offers a dependable computer management tool that allows you to control
• up to 16 USB connected computers from one keyboard, mouse and monitor.
• The KVM switch offers maximum control, allowing you to switch computers using
• hotkey commands or front panel push-buttons, and offers the added configurability
• and convenience of an On Screen Display. A suitable addition to server room operations,
• the 16 port switch can be rackmounted into 1U of cabinet space,
• and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch

KVM SV231QDVIUA 2 Port Quad Monitor DVI USB Switch

• Switch 4 monitors and peripherals between 2 PCs
• Supports beyond high definition, dual link DVI resolutions on 4 monitors each up to 2560x1600
• Switch Audio devices independently
• Supports front panel push buttons and hot-key functions for computer selection
• OS independent; No software or drivers required
• All metal chassis for long-term durability
• Hub port supports High speed USB 2.0 devices
• HDCP compliant

KVM SV431DPUA 4 Port USB DisplayPort Switch

• 7.1 Channel High Definition Audio support plus dual channel Analog Stereo and Microphone
• Full plug-and-play support with USB keyboards, mice, and connected peripherals
• Hotkey and push-button switching
• Native DisplayPort resolution of 2560x1600 60Hz; beyond 1080p
• OS independent - No driver or software required
• Supports a maximum resolution of 3840x2400 at lower refresh rates
• Supports DDC2B for monitor detection
• Supports hot-plug, un-plug and link status-failure detection
• Integrated 2 port USB 2.0 hub
• User-defined scan time intervals
• VESA and CEA compliant
• Fully compatible with Mini-DisplayPort, HDMI, and DVI adapters

KVM SV411KUSB 4 Port USB Switch

• The SV411KUSB 4 Port USB KVM Switch Kit with Audio and Cables lets you control up to four USB-enabled computers using a single keyboard, mouse and VGA monitor and offers both hotkey and top panel push-button operation for simple switching between connected computers.
• Designed to integrate seamlessly into any environment, the USB KVM switch offers a small footprint design (roughly the size of a deck of playing cards) and draws power from the connected computers, so it doesn't require an external power supply.
• A suitable solution for virtually any application, the USB KVM switch supports video resolutions of up to 2048 x 1536 as well as audio switching. The USB KVM switch includes four, 4ft 4-in-1 VGA and USB Host Cables, providing everything needed for quick installation to provide a complete, out-of-the-box KVM solution.
• Delivering dependable and convenient control of multiple computers from a single peripheral station, the KVM switch is backed 2-year warranty and free lifetime technical support.
• Advantage
• Power-free operation – KVM draws power from attached computers and requires no power adaptersCompact, small footprint design fits easily into almost any environment saving desk space and reducing clutterIncluded all-in-one KVM plus audio cables provide a complete out of the box KVM solution
• Control 4 USB enabled computers with this complete KVM kit including cables
• Cables (4 ft.) included Includes audio support for a complete switching solution Maximum resolution: 2048 x 1536Switching type: Hotkey, push-button

KVM SV831DUSBGB 8 Port USB VGA Switch

• The SV831DUSBGB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor.
• The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.
• A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch.
• This high quality USB PS/2 KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
• Control up to 8 USB or PS/2-connected computers from one keyboard, mouse and monitor
• Connect USB and PS/2 based computer systemsOS independent – No software or drivers requiredAuto-scan function cycles through computers sequentially

KVM SV231DDVDUA 2 Port DVI VGA Switch

• The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.
• With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
• Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
• Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
• This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. technical support if you require assistance identifying the proper cables.
• 3-year warranty and free lifetime technical support.
• 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio
• Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 2 multimedia computers
• The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solutionthat lets you control two Dual Display computers using a single USB mouse and keyboard peripheral set

KVM SV231DVIUA 2 Port DVI USB Switch

• The SV231DVIUA 2-Port DVI USB KVM Switch lets you control two USB-enabled, DVI capable computers from a single monitor and peripheral set (keyboard, mouse and speakers), and two additional USB peripherals connected through the built-in USB hub ports.
• Featuring convenient hot-key and front panel push-button switching, and high-resolution support (up to 1920x1200), the DVI KVM Switch is perfect for controlling high-performance systems. Ideal for multimedia applications, this KVM switch supports audio and microphone switching either independently, or simultaneously when switching between computers for KVM control.
• The DVI USB KVM also features an integrated USB 2.0 hub, which lets you share USB peripherals point as if they were connected directly to the slave computers.
• Backed by 3-year warranty and free lifetime technical support.
• Built-in USB 2.0 hubHot-key and front-panel push buttons for easy computer selection USB keyboard and mouse console connections

HPE Aruba JL357A 2540 48G Managed Switch

• Brand: HPE
• Part Number: JL357A
• UPC: 00190017094861
• CONDITION: New

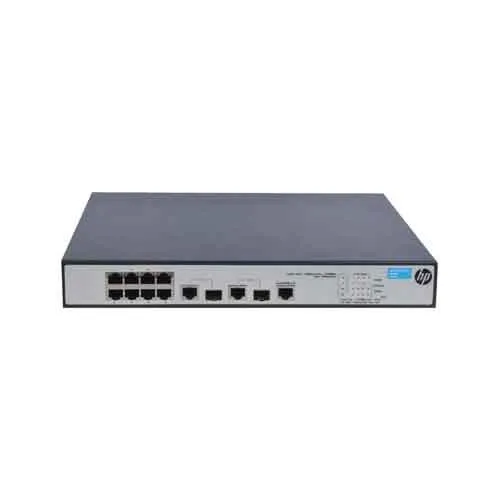

HPE OfficeConnect JG537A 1910 8 Switch

• Brand: HPE
• Part Number: JG537A
• UPC: 00887758142509
• CONDITION: Refurbished

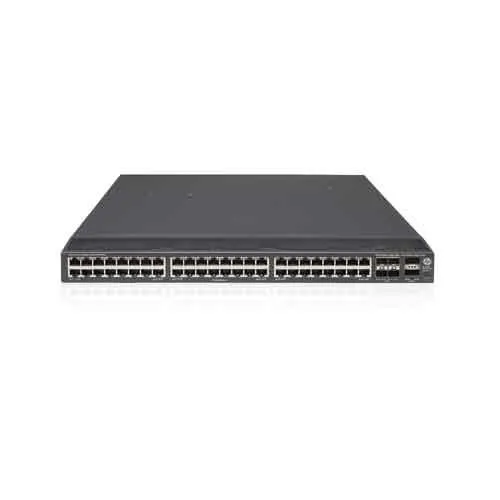

HPE FlexFabric JG510A 5900AF Switch

• Brand: HPE
• Part Number: JG510A
• UPC: 00658759143600
• CONDITION: New

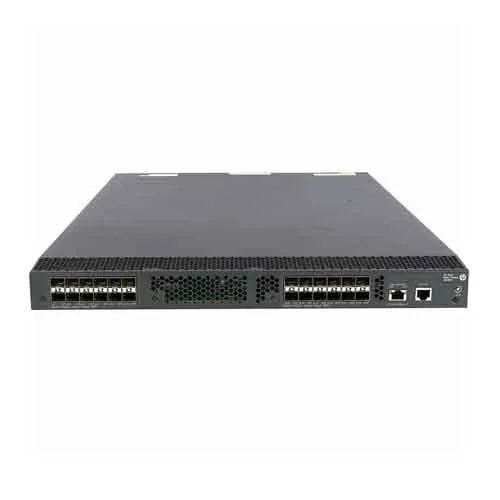

HPE Procurve JG296A 5920AF Managed Switch

• Brand: HPE
• Part Number: JG296A
• UPC: 00886111820023
• CONDITION: New

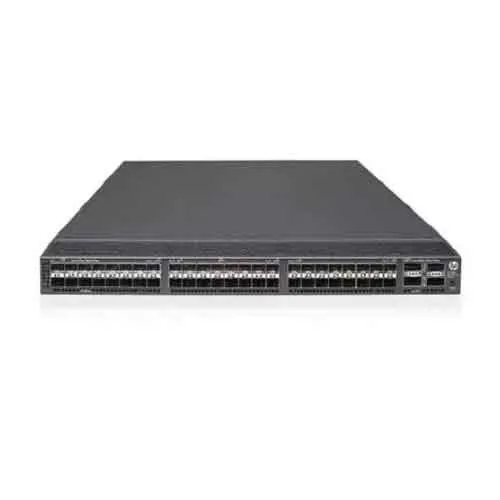

HPE FlexFabric JC772A 5900AF Switch

• Brand: HPE
• Part Number: JC772A
• UPC: 00886111975945
• CONDITION: Refurbished

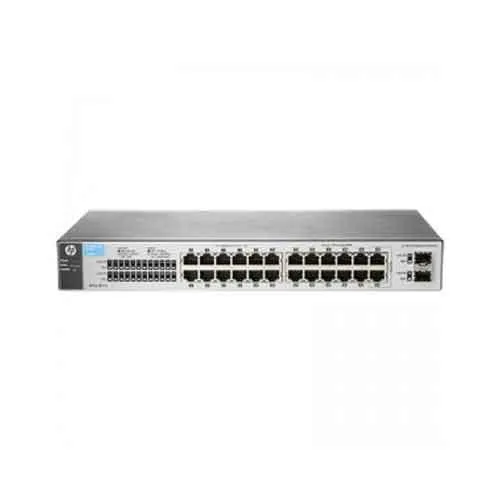

HPE OfficeConnect J9801A 1810 24 Switch

• Brand: HPE
• Part Number: J9801A
• UPC: 00887111275059
• CONDITION: Refurbished

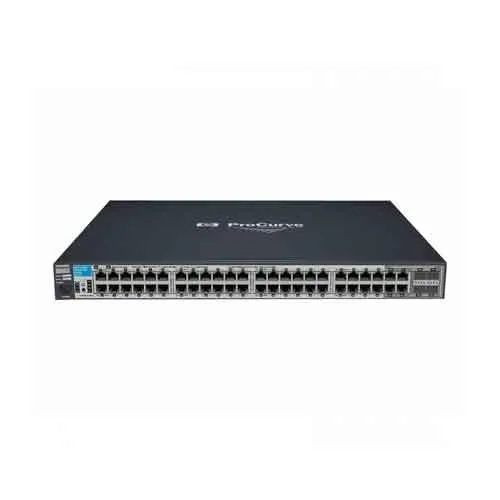

HPE Procurve J9147A 2910al 48G Switch

• Brand: HPE
• Part Number: J9147A
• UPC: 00884420767114
• CONDITION: Refurbished

HPE Procurve J9145A 2910al 24 Port Managed Switch

• Brand: HPE
• Part Number: J9145A
• UPC: 00658759139559
• CONDITION: Refurbished

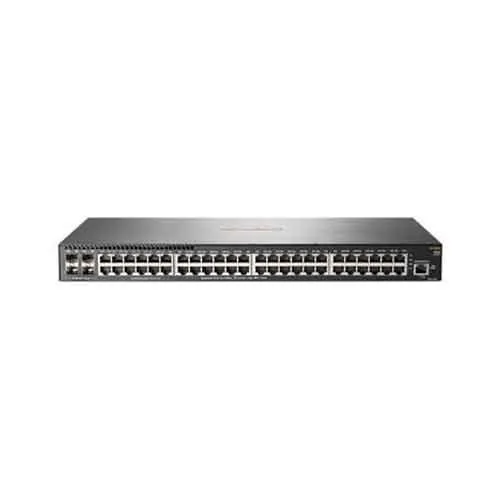

HPE JL357A ABA Aruba 2540 48G Switch

• Brand: HPE
• Part Number: JL357A ABA
• UPC: 00190017094861
• CONDITION: New

HPE Aruba JL357 61001 2540 48G Managed Switch

• Brand: HPE
• Part Number: JL357 61001
• UPC: 00190017094861
• CONDITION: New

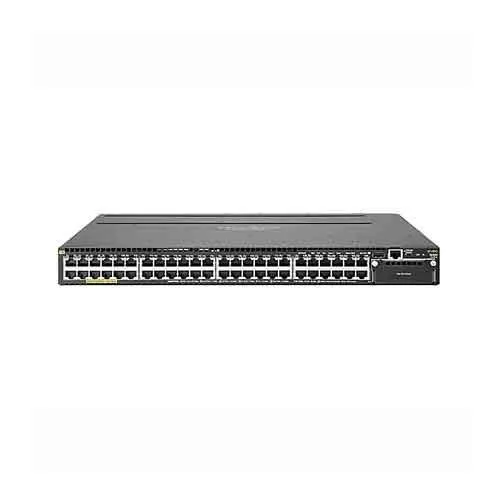

HPE Aruba JL076A 3810M Switch

• Brand: HPE
• Part Number: JL076A
• UPC: 00656541851351
• CONDITION: New

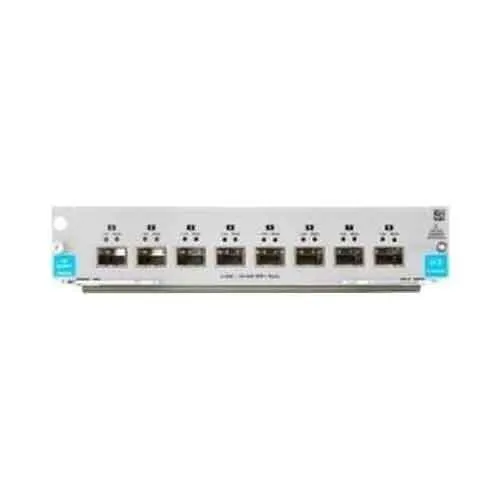

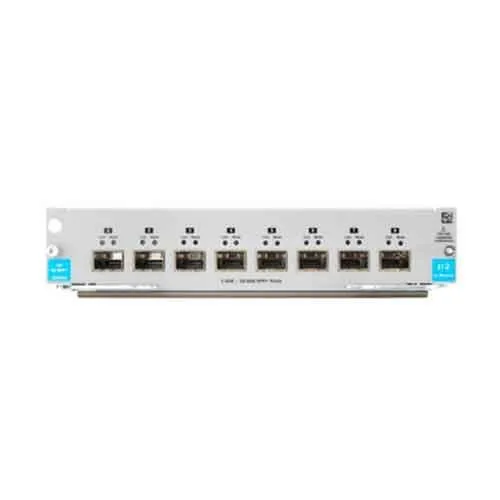

HPE J9993 61001 5400R 8 Port Module

• Part Number: J9993-61001
• UPC: 00883585354634
• Device Type: Expansion Module
• Form Factor: Plug-in Module
• Data Transfer Rate: 10 Gbps
• Connectivity Technology: Wired
• CONDITION: New

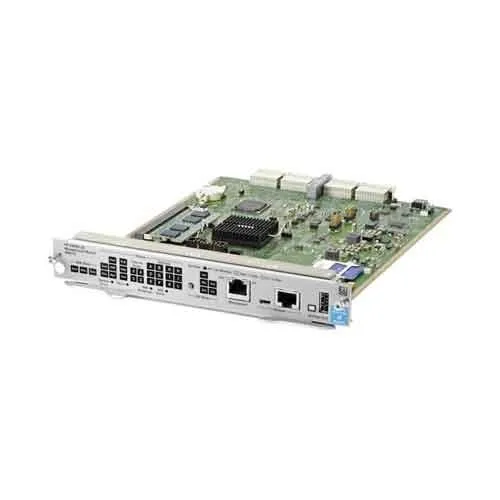

HPE J9827A 5400R ZL2 Management Module

• Part Number: J9827A
• UPC: 00888182309087
• Device Type: Network Management Device
• Connectivity Technology: Wired
• Form Factor: Plug-in Module
• CONDITION: New

HPE J9827 61001 5400R ZL2 Management Module

• Part Number: J9827-61001
• UPC: 00888182309087
• Device Type: Network Management Device
• Connectivity Technology: Wired
• Form Factor: Plug-in Module
• Interfaces: 1 x Console - RJ-45 ¦ 1 x Management - RJ-45
• CONDITION: New

HPE Aruba J9822A 5412R zl2 Switch

• Part Number: J9822A
• UPC: 00888182309032
• switching Capacity: 1920 Gbps
• Switch Fabric Speed: 2030 Gbps
• Input Voltage: 100 - 127 / 200 - 240 VAC, rated
• CONDITION: New

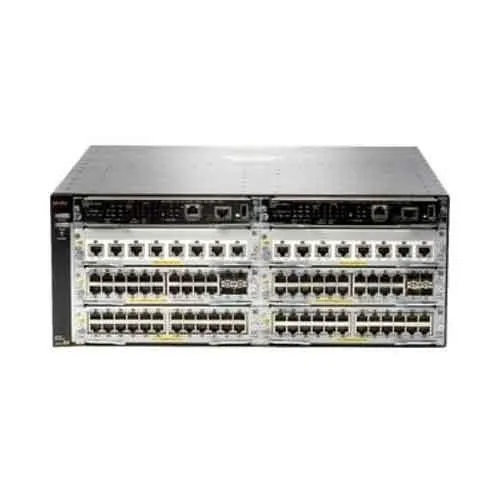

HPE J9821A Aruba 5406R zl2 Switch Module

• Part Number: J9821A
• UPC: 00888182309025
• Device Type: Switch - Managed
• Enclosure Type: Rack Mountable 4U
• Subtype: Gigabit Ethernet
• CONDITION: New

HPE J9821 61001 Aruba 5406R Switch Module

• Part Number: J9821-61001
• UPC: 00888182309025
• Device Type: Switch Managed
• Subtype: Gigabit Ethernet
• Rack Units: 4U
• Power Supply Slots: 2
• CONDITION: New

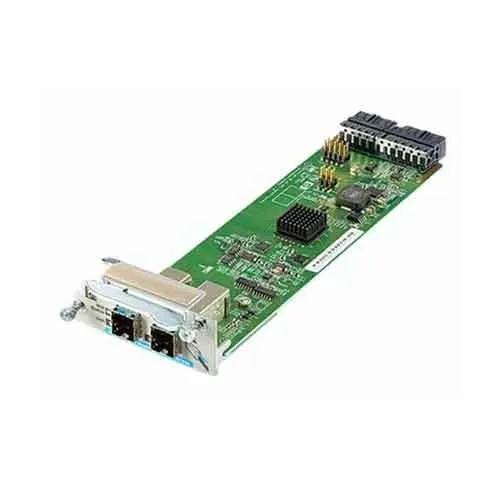

HPE J9733 61001 2 Port 48 Gigabit Stacking Module

• Part Number: J9733 61001
• UPC: 00000886334084
• Number Of Ports: 2
• Device Type: Stacking Module
• Transfer Rate: 48-Gigabit
• CONDITION: New

HPE J9577 4 Port Network Stacking Module

• Part Number: J9577
• UPC: 00000886334084
• Device Type : Network Stacking Module - 4 Ports
• Form Factor : Plug-in Module
• CONDITION :New

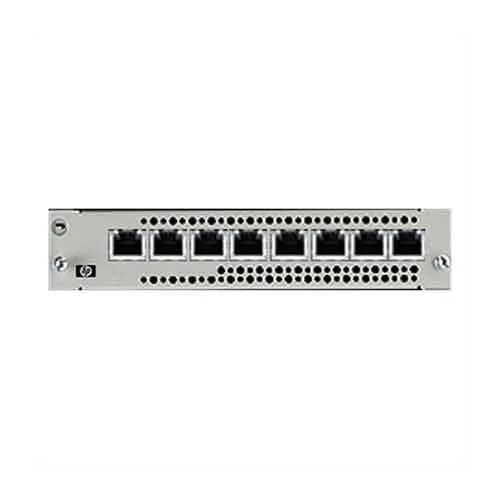

HPE J9538A 8 Port Switch

• Part Number: J9538A
• UPC: 00885631940877
• Device Type: Expansion Module - 8 Ports
• Form Factor: Plug-in Module
• Connectivity Technology: Wired
• Data Transfer Rate: 10 Gbps
• Data Link Protocol: 10 Gigabit Ethernet
• CONDITION: Refurbished

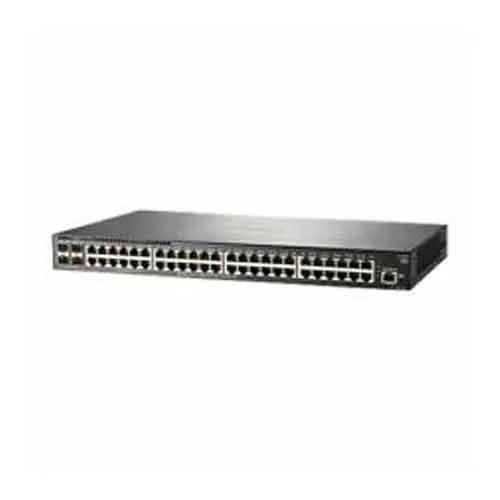

HPE J8693A ABA ProCurve 3500 Managed Ethernet Switch

• Part Number: J8693A ABA
• UPC: 00882780457898
• Input frequency: 50 / 60 Hz
• Power supply PoE: 398 Watt
• Switch fabric speed: 153.6 Gbps
• Input voltage: 100-127 / 200-240 Volt AC
• CONDITION: New

HPE J8693A ProCurve 3500 48G Managed Ethernet Switch

• Part Number: J8693A
• UPC:00882780457928
• Switch fabric speed: 153.6 Gbps
• Switching capacity: 149.8 Gbps
• Input frequency: 50 / 60 Hz
• Form factor: 1U Height (Rack-mountable)
• Input voltage: 100-127 / 200-240 Volt AC
• CONDITION: New

HPE J8693 69001 ProCurve 3500 48G Managed Ethernet Switch

• Part Number: J8693-69001
• UPC:00882780457898
• Switching capacity: 149.8 Gbps
• Power consumption: 705 Watt
• Input frequency: 50 / 60 Hz
• Input voltage: 100-127 / 200-240 Volt AC
• Form factor: 1U Height (Rack-mountable)
• CONDITION: New

HPE J8693 61401 ProCurve 3500 48G Managed Ethernet Switch

• Part Number: J8693 61401
• UPC: 00882780457928
• Switch fabric speed: 153.6 Gbps
• Switching capacity: 149.8 Gbps
• Power consumption: 705 Watt
• Input frequency: 50 / 60 Hz
• Form factor: 1U Height (Rack-mountable)
• Input voltage: 100-127 / 200-240 Volt AC
• CONDITION: New

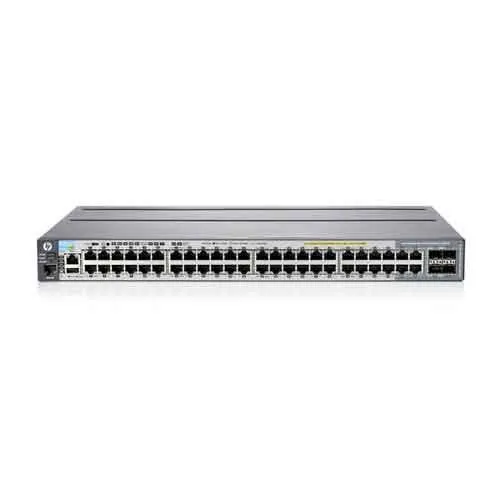

HPE J8693 61301 ProCurve 3500 48G Managed Ethernet Switch

• Part Number: J8693-61301
• UPC: 00882780457928
• Switch fabric speed: 153.6 Gbps
• Power consumption: 705 Watt
• Input frequency: 50 / 60 Hz
• Input voltage: 100-127 / 200-240 Volt AC
• Form factor: 1U Height (Rack-mountable)
• CONDITION: New

HPE J8693 61001 ProCurve 3500 48G Managed Ethernet Switch

• Part Number: J8693-61001
• UPC: 00882780457898
• Switch fabric speed: 153.6 Gbps
• Power consumption: 705 Watt
• Input frequency: 50 / 60 Hz
• Power supply PoE: 398 Watt
• Input voltage: 100-127 / 200-240 Volt AC
• CONDITION: New

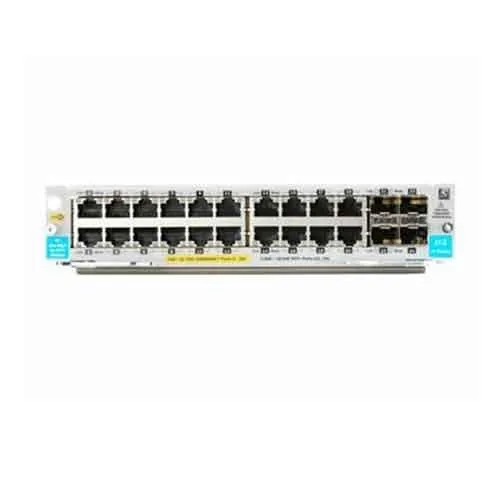

HPE Aruba J9986 61001 5400R 24 Port Module

• Part Number: J9986-61001
• UPC: 00888182604243
• Form Factor: Plug-in module
• Interfaces: 24 x 1000Base-T (PoE+) - RJ-45
• Data Transfer Rate: 1 Gbps
• Ports: Gigabit Ethernet (PoE+) x 24
• CONDITION: New

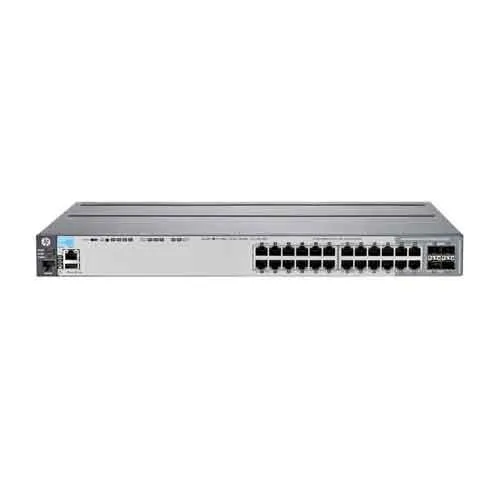

HPE Aruba J9726A 2920 24G Managed Switch

• Part Number: J9726A
• UPC: 00886112321970
• Processor: 1 x ARM : 625 MHz
• RAM: 512 MB - SDRAM
• Subtype: Gigabit Ethernet
• Ports: 20 x 10/100/1000 + 4 x combo Gigabit SFP
• Switching capacity: 128 Gbps
• Flash Memory: 1 GB
• CONDITION: Refurbished

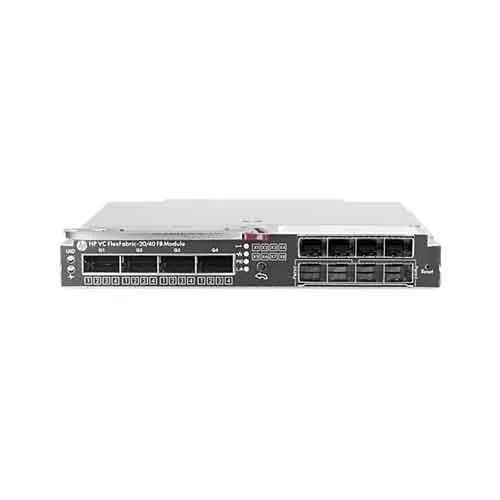

HPE 699350 001 40GbE 28Port Virtual Connect Module

• Part Number: 699350-001
• UPC: 00880959390632
• Enclosure Type: Plug-in module
• Ports: 16 x 10/20Gb Ethernet (midplane downlink) + 2 x 20Gb Ethernet (cross connect link) + 4 x 40 Gigabit QSFP+ (uplink) + 8 x 10 Gigabit SFP+ (uplink)
• Capacity: Network access groups: 128
• CONDITION: Refurbished

HPE 691367 B21 40GbE 28 Port Virtual Connect Module

• Part Number: 691367-B21
• UPC: 00886112939700
• Enclosure Type: Plug-in module
• Ports: 16 x 10/20Gb Ethernet (midplane downlink) + 2 x 20Gb Ethernet (cross connect link) + 4 x 40 Gigabit QSFP+ (uplink) + 8 x 10 Gigabit SFP+ (uplink)
• Capacity: Network access groups: 128
• CONDITION: Refurbished

HPE 538113 B21 16 Port Switch

• Part Number: 538113-B21
• UPC: 00884962022948
• Device Type: Switch - 16 ports
• Type: Plug-in module
• Ports: 16 x 10 Gigabit SFP+
• Interfaces: 16 x 10Gb Ethernet - SFP+ 1 x USB - management
• CONDITION: Refurbished

HPE Aruba JL072A 3810M 48G Switch

• Part Number: JL072A
• UPC: 00888793596586
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-TX
• CONDITION: New

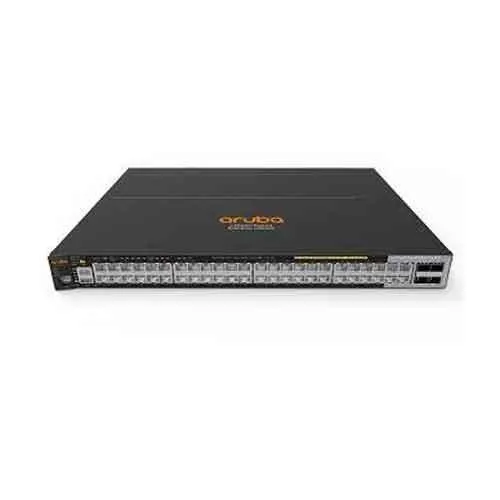

HPE Aruba J9729A 2920AL 48G Switch

• Part Number: J9729A
• Type: Aruba 2920 48G POE+ Switch
• Switching capacity: 176 Gb/s
• power: 370 W
• Dimensions: 4.39 x 44.25 x 33.6 cm (1.73 x 17.42 x 13.23 in)
• UPC: 00886112322595
• CONDITION: Refurbished

HPE Aruba J9986A 5400R 24 Port Switch

• Part Number: J9986A
• UPC: 00888182604243
• Interfaces: 24 x 1000Base-T (PoE+) - RJ-45
• Form Factor: Plug-in module
• Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
• CONDITION: New

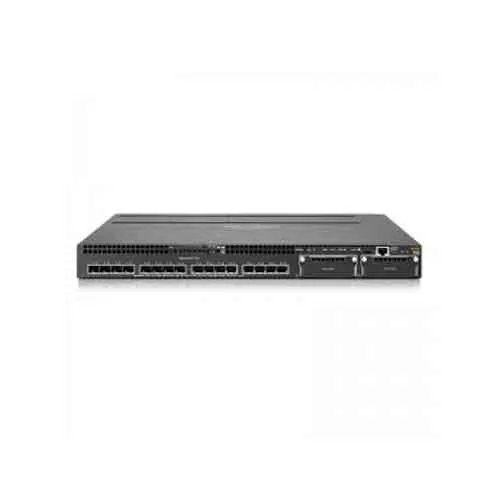

HPE Aruba JL075A 3810M Switch Module

• Part Number: JL075A
• UPC: 00888793596616
• Ports: 16 x 10 Gigabit SFP+
• RAM: 6 GB DDR3 SDRAM
• Flash Memory: 1 GB
• Switching capacity: 480 Gbps
• CONDITION: New

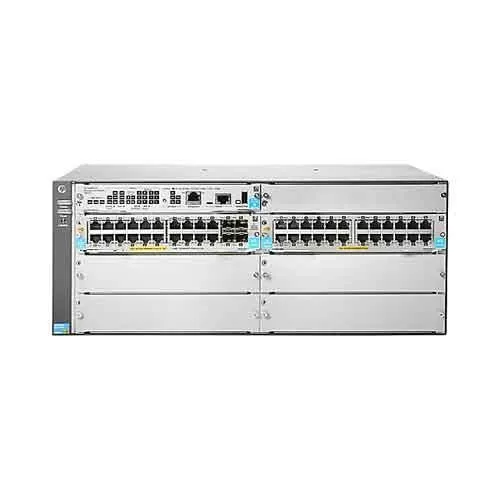

HPE Aruba JL003A 5406R 44GT Switch

• Part Number: JL003A
• Processor: Freescale P2020 dual core 1.2 GHz 16 MB flash 1 GB SD Card
• Memory: 4 GB DDR3 SODIMM
• Dimension: 17.5 x 17.75 x 6.9 in
• UPC: 00888182604373
• Voltage: 110 - 127 / 200 - 240 VAC, rated
• CONDITION: New

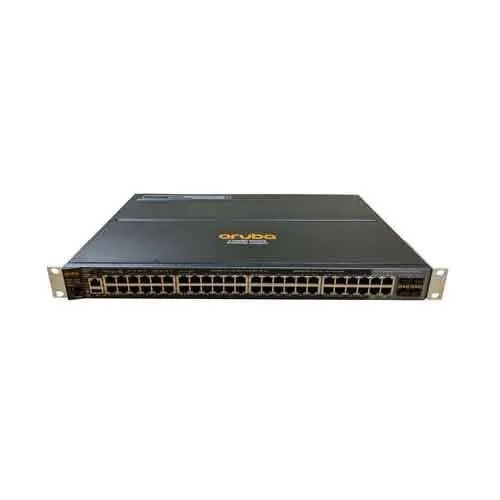

HPE Aruba J9728A 2920 48 Port Switch

• Part Number: J9728A
• Number of Ports: 48
• UPC: 00886112322359
• Port Speed: 100Mbps
• Power supply: 1
• Form Factor: 1U
• CONDITION: New

HPE Aruba J9993A 5400R 8 Port Switch

• Part Number: J9993A
• UPC: 00888182604311
• CONDITION: New
• Weight: 1.65 lb
• Dimensions: 10.3 x 8.13 x 1.75 in

Cisco Catalyst 2950 Switch

• Brand: Cisco
• Model No: 2950 Series
• Minimum Order Quantity: 1 Piece
• Ports: 24
• Warranty: 1 year Warranty

Cisco Catalyst WS C4948 10GES Switch

• Brand: Cisco
• Model: WS-C4948-10GE-S Cisco 4948 Switch
• Detail: Cisco 4948 Switch WS-C4948-10GE-S
• Product Type: LAYER 3 SWITCH
• Form Factor: 1-RACK-UNIT (1-RU)
• Ports: 48

Cisco Catalyst ME3400G 12CSA Switch

• Brand: Cisco
• Model: ME 3400G-12CS AC
• Features: VLAN support, layer 2 switching, layer 3 switching, trunking
• Security features: 12 dual-purpose (10/100/1000 and Small Form-Factor Pluggable [SFP]) ports
• Product Type: Gigabit Ethernet
• Ports: 12 x 10/100/1000 + 12 x shared SFP + 4 x SF

Cisco Catalyst WSC2960G 24TCL Switch

• Brand: Cisco
• Minimum Order Quantity: 1 Piece
• LED Indicato: Required
• Product Type: Switch
• Form Factor Fixed: Rack Mountable, Standalone/Clustering

Cisco Catalyst WS CE500 24TT Switch

• Brand: Cisco
• Minimum Order Quantity: 1 Piece
• LED Indicator: Required
• Form Factor: Desktop
• Number of Ports: 24
• Product Details: WS-CE500-24TT
• Product Type: Cisco Catalyst Switches

Cisco Catalyst 2960 Switch

• Brand: Cisco
• Area Network Type: LAN Capable
• Buffer Size: 128 Kb
• LED Indicator: Required
• Power Source: Electric

Cisco Catalyst WSC3750G 24TS E1U Switch

• Brand: Cisco
• Model No: WS-C3750G-24TS-E1U
• Minimum Order Quantity: 1 Piece
• Area Network Type: LAN Capable
• Number of Ports: 24
• LED Indicator: Required
• Form Factor: Fixed, Rack Mountable 1U, Stackable/Clustering
• Product Type: Switch

Cisco Catalyst WS C2960G 48TCL Switch

• Brand: Cisco
• Model No: WS-C2960G-48TC-L Cisco 2960 Switch
• Minimum Order Quantity: 1 Piece
• Area Network Type: LAN Capable
• Number of Ports: 44
• Switch Capacity: 2G
• Buffer Size: 128 Kb
• LED Indicator: Required
• Product Type: Switch
• Form Factor External: 1U

Lenovo ThinkSystem DB610S 32Gb FC SAN Switch

• Form factor    Standalone or 1U rack mount
• Ports    24x SFP+ ports:
• Model HC4: 24 ports activated and 24x 16 Gb FC SWL SFP+ transceivers included.
• Model HC7: 8 ports activated and 8x 32 Gb FC SWL SFP+ transceivers included.
• Model HC5: 8 ports activated and 8x 16 Gb FC SWL SFP+ transceivers included.
• Up to two optional 8-port activation license packs or bundles (8-port license pack and 8x 16 Gb or 8x 32 Gb FC SWL SFP+ transceivers) for Models HC5, and HC7.
• Media types
• 32 Gb FC SFP+ transceivers: short wavelength (SWL), long wavelength (LWL).
• 16 Gb FC SFP+ transceivers: SWL, LWL, extended long wavelength (ELWL).
• Port speeds
• 32 Gb FC SFP+ transceivers: 32/16/8 Gbps auto-sensing.
• 16 Gb FC SFP+ transceivers: 16/8/4 Gbps auto-sensing.
• FC port types
• Full Fabric mode: F_Port, M_Port (Mirror Port), E_Port, D_Port (Diagnostic Port).
• Access Gateway mode: F_Port and NPIV-enabled N_Port.
• Data traffic types    Unicast (Class 2 and Class 3), multicast (Class 3 only), broadcast (Class 3 only).
• Classes of service    Class 2, Class 3, Class F (inter-switch frames).
• Standard features    Full Fabric mode, Access Gateway, Advanced Zoning, Fabric Services, Adaptive Networking, Advanced Diagnostic Tools.
• Optional features    Enterprise Bundle (ISL Trunking, Fabric Vision, Extended Fabric).

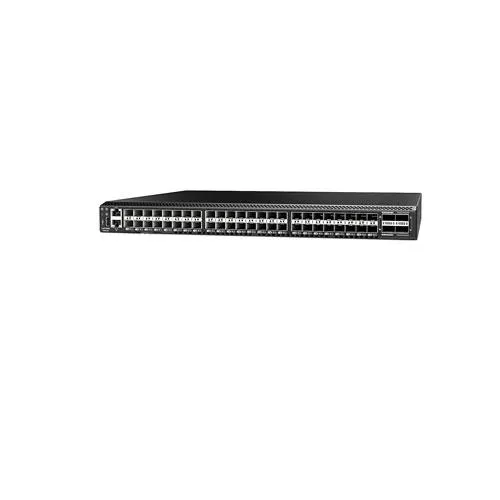

Lenovo ThinkSystem DB620S 32Gb FC SAN Switch

• Provides high scalability in an ultra-dense, 1U switch with 48 SFP+ ports and 4 QSFP+ ports (each QSFP+ port has 4x 32 Gb FC links for 128 Gb FC connectivity between the DB620S FC SAN switches, or it can be broken out to four links to 4/8/16/32 Gbps SWL optics in a server HBA, storage device, or another FC switch, for a total of up to 64 connections) to support high-density server virtualization, cloud architectures, and flash-based storage environments.
• Increases performance for demanding workloads with support for 128 Gbps (4x 32 Gbps) and 32 Gbps FC links.
• Simplifies end-to-end management by automating repetitive daily management tasks.
• Enables “pay-as-you-grow” scalability from single-switch fabric to full-fabric enterprise capabilities with Ports On Demand scalability.
• Optimizes fabric behavior and ensure sufficient bandwidth for mission-critical applications with advanced traffic management capabilities and adaptive networking.
• Provides proactive, non-intrusive, real-time monitoring and alerting of VM and storage I/O health and performance with VM Insight and IO Insight through integrated network sensors.
• Leverages predefined MAPS policies to automatically identify and isolate devices that cause network performance issues.
• Offers dual functionality as either a full-fabric SAN switch or as an NPIV-enabled Access Gateway (requires 48 SFP+ ports be licensed) that enhances fabric scalability and simplifies management.
• Protects existing device investments with auto-sensing 4, 8, 16, and 32 Gbit/sec capabilities and native operation with Brocade fabrics.
• Runs Fabric OS, which delivers distributed intelligence throughout the network and enables a wide range of value-added features.

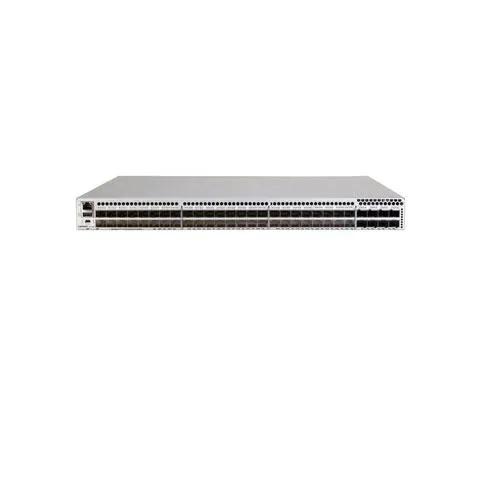

Lenovo ThinkSystem DB720S Gen7 FC SAN Switch

• Provides high scalability in an ultra-dense, 1U switch with up to 56 ports to support high-density server virtualization, cloud architectures, and flash-based storage environments.
• Accelerate critical workloads with 64Gb/s links
• Maximize performance of NVMe storage with 50% lower switching latency than Gen 6
• Enable pay-as-you-grow scalability from 24 to 56 ports—for on-demand flexibility
• Simplify troubleshooting by identifying and isolating issues
• Collect comprehensive telemetry data across the fabric to enable powerful analytics
• Visualize the data to easily understand the health and performance of the SAN
• Automate repetitive tasks to save time and eliminate human error
• Protects existing device investments with auto-sensing 8, 16 and 32 Gbit/sec capabilities and native operation with any Brocade SAN fabrics.
• Leverages Fabric Vision technology’s powerful monitoring, management, and diagnostic tools to simplify administration, increase uptime, and reduce costs.
• Supplies a rich set of standard features at no extra cost, including fabric services, advanced zoning, adaptive networking, full fabric and access gateway operations, integrated 10 Gb FC, and diagnostic tools.
• Expands fabric capabilities with optional licensed functions, including trunking, advanced monitoring and alerting, long-distance fabrics, and FC-FC routing.
• Compresses in-flight data on up to four ports for more efficient link utilization.
• Maximizes resiliency with redundant hot-swap power supplies.
• Accelerates troubleshooting with built-in advanced diagnostics tools featuring ClearLink Diagnostics with D_Ports (Diagnostic Ports) and select adapters from QLogic and Emulex, which helps ensure optical and signal integrity for 32/64 Gb Fibre Channel optics and cables.

Lenovo ThinkSystem NE1064TO Rack Switch

• Performance: Line rate performance 1.08Tbps switching throughput up to 714 Million packets per second (Mpps) up to 9,416 byte jumbo frames 32MB buffer size
• Interface configurations: 48x 10GBase T (RJ45)
• 6x 100GbE ports supporting various combinations of: Up to 6x 100GbE QSFP28 transceivers
• Up to 16x 25GbE SFP28 ports using special (QSFP28 to 4x SFP28) break out DAC or optics cable
• Up to 16x 10GbE SFP+ ports using special (QSFP28 to 4x SFP+) break out DAC or optics cable
• Management interfaces: 1x RJ45 Ethernet Management port
• 1x Mini USB (Type AB) serial console port
• 1x USB2.0 for mass storage access
• Cooling: Rear to front model with five variable-speed hot swap fan modules that provide 4+1 redundancy
• Power: Dual hot swap internal power modules that provide 1+1 redundancy with 407W maximum consumption
• Network OS: ONIE (Open Network Install Environment)
• Limited Warranty: 3 year customer replaceable unit next business day with service and extensions available

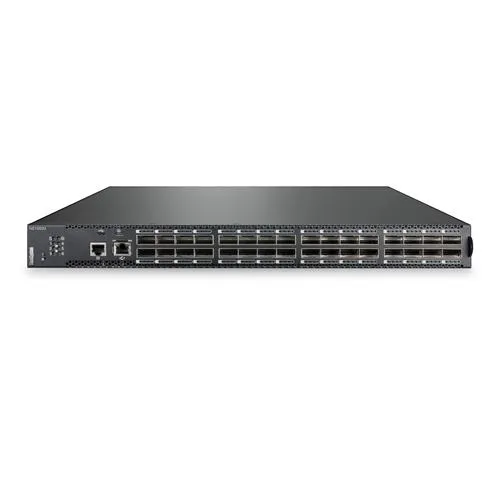

Lenovo ThinkSystem NE10032 Rack Switch

• Performance : Line rate performance, up to 6.4Tbps switching throughput, as low as 490 ns port-to-port switching latency
• up to 2,702 Million packets per second (Mpps), up to 9
• 216-byte jumbo frames, 16MB buffer size
• Interface Configurations : 48x 10GBase-T + 6x 40Gb QSFP+ Ethernet ports or 6x (4x 10GbE) breakout cables : Virtualization VLAG, SDN ready
• Cooling : Front-to-rear or rear-to-front cooling, five variable-speed hot-swap fan assemblies that provide N+1 cooling redundancy
• Power : Dual load-sharing hot-swap internal power modules, 212W typical / 436W maximum consumption
• Management Software Supported : Lenovo XClarity, VMware, OpenStack, Ganglia, Nutanix
• Automation : Ansible, Chef, Puppet
• API : Python, REST, Telemetry
• Limited Warranty : 3-year customer replaceable unit and software warranty

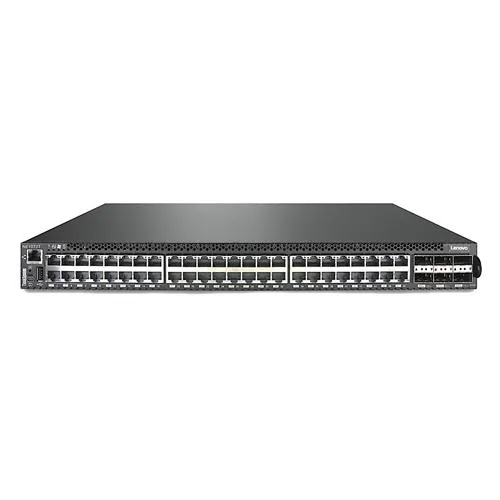

Lenovo ThinkSystem NE1072T Rack Switch

• Performance : Line rate performance, 1.44Tbps switching throughput,
• as low as 700 ns (QSFP+) or 2.4 us (10GBASET) port-to-port switching latency, up to 714 Million packets per second (Mpps),
• up to 9,216-byte jumbo frames, 12MB buffer size
• Interface Configurations : 48x 10GBase-T + 6x 40Gb QSFP+ Ethernet ports or 6x (4x 10GbE) with breakout cables : Virtualization VLAG, SDN ready
• Cooling : Front-to-rear or rear-to-front cooling, five variable-speed hot-swap fan assemblies that provide N+1 cooling redundancy
• Power : Dual load-sharing hot-swap internal power modules, 202W typical / 291W maximum consumption
• Management Software Supported : Lenovo XClarity, VMware, OpenStack, Ganglia, Nutanix
• Automation : Ansible, Chef, Puppet
• API : Python, REST, Telemetry
• Limited Warranty : 3-year customer replaceable unit and software warranty

Lenovo ThinkSystem NE1032T Rack Switch

• Performance: Line rate performance up to 640Gbps switching throughput; as low as 760 ns (SFP+) or 2.3 us (10GBASE-T) port-to-port switching latency
• Interface Configurations : 24x 10GBase-T + 8x 10Gb SFP+ Ethernet ports
• Virtualization : VLAG, SDN ready
• Cooling: Front-to-rear or rear-to-front cooling, three variable-speed hot-swap fan assemblies that provide N+1 cooling redundancy
• Power : Dual load-sharing hot-swap internal power modules, 96W typical / 99W maximum consumption
• Management Software Supported : Lenovo XClarity, VMware, OpenStack, Ganglia, Nutanix
• Automation : Ansible, Chef, Puppet
• API : Python, REST, Telemetry
• Limited Warranty : 3-year customer replaceable unit and software warranty

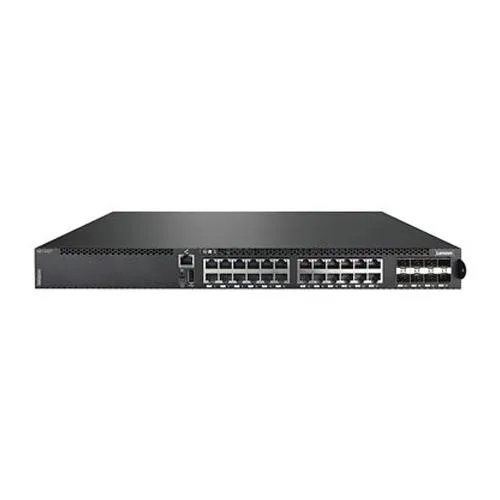

Lenovo ThinkSystem NE1032 Rack Switch

• Product Description : Lenovo ThinkSystem NE1032 RackSwitch
• Device Type : Switch 32 ports L3 managed
• Enclosure Type : Rack-mountable 1U
• Subtype : 10 Gigabit Ethernet
• Ports : 32 x 1 Gigabit SFP/ 10 Gigabit SFP+
• Performance : Switching throughput: 640 Gbps Port-to-port latency: 760 ns
• Capacity : Buffer capacity (MB): 12 Virtual interfaces (VLANs): 4095 Rapid Spanning Tree
• Protocol instances: 500 Multiple Spanning Tree Protocol instances: 64 LAG groups: 32 Active ports in LAG: 32
• MAC Address Table Size : 208000 entries
• Jumbo Frame Support : 9216 bytes
• Routing Protocol : BGP, VRRP, OSPFv2, policy-based routing (PBR)

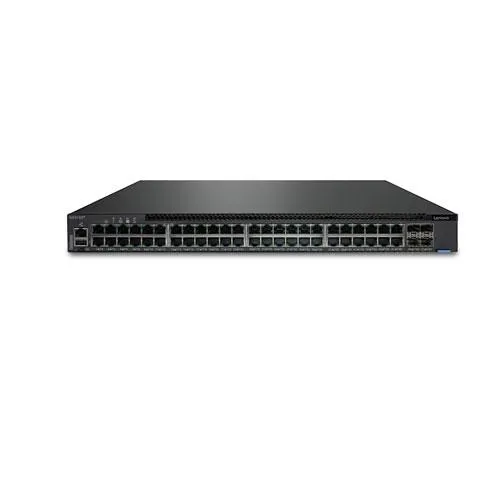

Lenovo ThinkSystem NE0152T RackSwitch

• Product Description : Lenovo ThinkSystem NE0152T RackSwitch
• Device Type : Switch - 48 ports - L3 - managed
• Enclosure Type : Rack-mountable 1U
• Subtype Gigabit Ethernet
• Ports : 48 x 100/1000/10000 + 4 x 1 Gigabit / 10 Gigabit SFP+
• Performance Switching throughput: 176 Gbps
• Port-to-port latency : 3.3 µs
• Packet throughput : 130 Mpps
• Capacity -Jumbo frame size : 9216
• Multiple Spanning Tree Protocol instances: 64
• Per VLAN Rapid Spanning Tree instances: 500
• Multiple Spanning Tree Protocol instances: 64
• LAG groups: 52
• Active ports in LAG: 32
• MAC Address Table Size : 65K entries
• Jumbo Frame Support : 9216 bytes
• Routing Protocol : OSPF, BGP-4, BGP, VRRP, OSPFv2, ECMP
• Remote Management Protocol: SNMP 1, SNMP 2, SNMP 3, SSH, SSH-2, CLI, SCP, SFTP

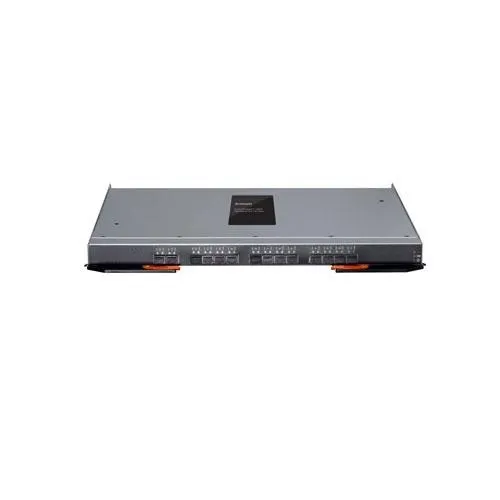

Lenovo Flex System EN4091 10Gb Ethernet

• Performance : Line rate performance, up to 6.4Tbps switching throughput, as low as 490 ns port-to-port switching latency
• up to 2,702 Million packets per second (Mpps), up to 9
• 216-byte jumbo frames, 16MB buffer size
• Interface Configurations : 48x 10GBase-T + 6x 40Gb QSFP+ Ethernet ports or 6x (4x 10GbE) breakout cables : Virtualization VLAG, SDN ready
• Cooling : Front-to-rear or rear-to-front cooling, five variable-speed hot-swap fan assemblies that provide N+1 cooling redundancy
• Power : Dual load-sharing hot-swap internal power modules, 212W typical / 436W maximum consumption
• Management Software Supported : Lenovo XClarity, VMware, OpenStack, Ganglia, Nutanix
• Automation : Ansible, Chef, Puppet
• API : Python, REST, Telemetry
• Limited Warranty : 3-year customer replaceable unit and software warranty

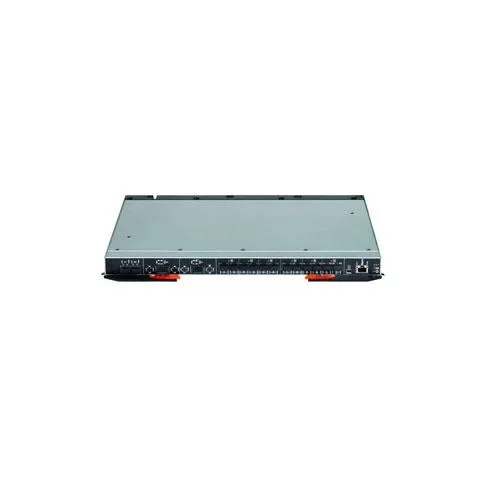

Lenovo Flex System Fabric EN4093R 10Gb Scalable Switch

• Brand : Lenovo
• Model : 00FM514
• Part Number : 00FM514
• RAM Size : 1 TB
• Colour Screen : No
• Voltage : 240 volts
• Batteries Included : No
• Batteries Required : No
• Contains Liquid Contents : No
• Has Auto Focus : No
• Includes Rechargable Battery : No
• Supports Bluetooth Technology : No
• Has Programmable Buttons : No
• Item Weight : 3.7 Kg
• Shipping Weight : 4.4 Kg
• Item Model Number : 00FM514
• ASIN : B01609FL4Y
• Date First Available : 12 February 2018

Lenovo Flex System SI4091 10 Gb System

• Performance : Line rate performance, up to 6.4Tbps switching throughput, as low as 490 ns port-to-port switching latency
• up to 2,702 Million packets per second (Mpps), up to 9
• 216-byte jumbo frames, 16MB buffer size
• Interface Configurations : 48x 10GBase-T + 6x 40Gb QSFP+ Ethernet ports or 6x (4x 10GbE) breakout cables : Virtualization VLAG, SDN ready
• Cooling : Front-to-rear or rear-to-front cooling, five variable-speed hot-swap fan assemblies that provide N+1 cooling redundancy
• Power : Dual load-sharing hot-swap internal power modules, 212W typical / 436W maximum consumption
• Management Software Supported : Lenovo XClarity, VMware, OpenStack, Ganglia, Nutanix
• Automation : Ansible, Chef, Puppet
• API : Python, REST, Telemetry
• Limited Warranty : 3-year customer replaceable unit and software warranty

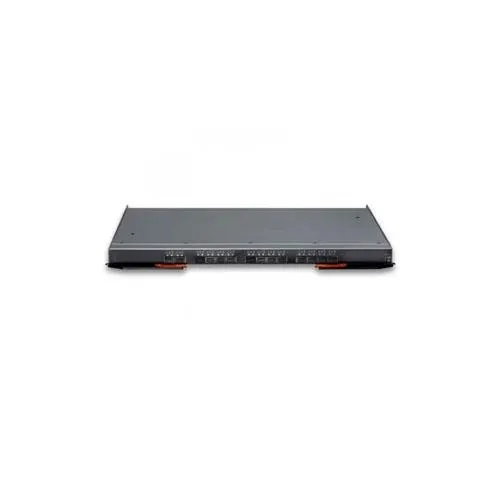

Lenovo Flex System Fabric SI4093 System

• Performance : Line rate performance, up to 6.4Tbps switching throughput, as low as 490 ns port-to-port switching latency
• up to 2,702 Million packets per second (Mpps), up to 9
• 216-byte jumbo frames, 16MB buffer size
• Interface Configurations : 48x 10GBase-T + 6x 40Gb QSFP+ Ethernet ports or 6x (4x 10GbE) breakout cables : Virtualization VLAG, SDN ready
• Cooling : Front-to-rear or rear-to-front cooling, five variable-speed hot-swap fan assemblies that provide N+1 cooling redundancy
• Power : Dual load-sharing hot-swap internal power modules, 212W typical / 436W maximum consumption
• Management Software Supported : Lenovo XClarity, VMware, OpenStack, Ganglia, Nutanix
• Automation : Ansible, Chef, Puppet
• API : Python, REST, Telemetry
• Limited Warranty : 3-year customer replaceable unit and software warranty

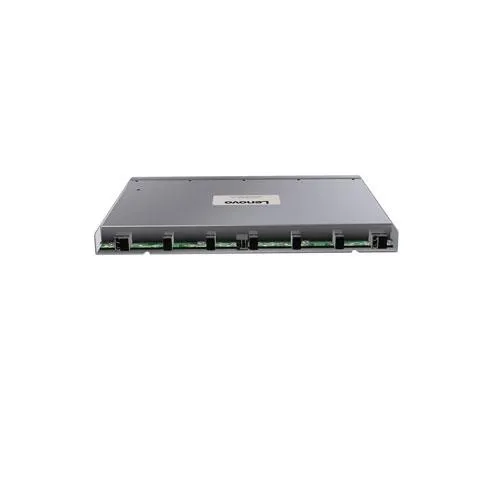

Lenovo ThinkSystem NE2552E Flex Switch

• Performance : Line rate performance, up to 6.4Tbps switching throughput, as low as 490 ns port-to-port switching latency
• up to 2,702 Million packets per second (Mpps), up to 9
• 216-byte jumbo frames, 16MB buffer size
• Interface Configurations : 48x 10GBase-T + 6x 40Gb QSFP+ Ethernet ports or 6x (4x 10GbE) breakout cables : Virtualization VLAG, SDN ready
• Cooling : Front-to-rear or rear-to-front cooling, five variable-speed hot-swap fan assemblies that provide N+1 cooling redundancy
• Power : Dual load-sharing hot-swap internal power modules, 212W typical / 436W maximum consumption
• Management Software Supported : Lenovo XClarity, VMware, OpenStack, Ganglia, Nutanix
• Automation : Ansible, Chef, Puppet
• API : Python, REST, Telemetry
• Limited Warranty : 3-year customer replaceable unit and software warranty

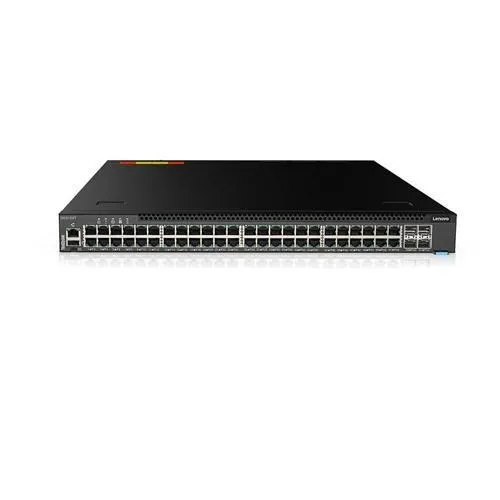

Lenovo G8052 RackSwitch

Lenovo G8296 RackSwitch

Cisco MGX XM60 Switching Module

• The Cisco MGX-XM60 Switching Module has the following primary features:
• Single-height card
• 60-Gbps nonblocking crosspoint switch fabric
• Dynamic sharing of capacity across multiple Cisco XM-60s, allowing for N + 1 redundancy
• Four installed in each Cisco MGX 8950 for 240-Gbps total capacity, 180-Gbps redundant capacity
• Hot card insertion/removal
• Complete separation from control processor, allowing data forwarding in the event of control card failure

• MGX 8950

• MGX S/W Releases supporting MGX-XM60:
• MGX Rls 4.0.15 and above

• Managed by Cisco WAN Manager Software suite
• Based on Simple Network Management Protocol (SNMP)

• Input power required: -48 VDC
• Power consumption: 61 W

• H x D: 7.25 x 16.5 in. (18.41 x 41.91 cm)

• 3.5 lb

Cisco MGX 8900 Series Switches

• The main features of the Cisco 8-Port OC-12/STM-4 Channelized/Unchannelized ATM Switch Service Module are listed here.
• Full nonblocking, full-duplex line-rate throughput on all 8 ports when used on the Cisco MGX 8950 chassis
• Up to 4 ports with nonblocking, full-duplex line-rate throughput when used on the Cisco MGX 8800 chassis
• Individual port channelization down to DS-3 and OC-3c/STM-1
• Per-virtual-path and per-virtual-circuit traffic shaping and available bit rate (ABR) with virtual source and virtual destination
• APS (1:1 and 1+1) port redundancy, plus APS 1+1 card redundancy
• Up to 4 million cell buffers
• Up to 16 classes of service (CoS) that can be used to support IP or ATM services
• Support for standards-based Private Network-to-Network Interface (PNNI), switched virtual circuit (SVC) and switched virtual path (SVP),
• soft permanent virtual connection (SPVC) and soft permanent virtual path (SPVP), and Multiprotocol Label Switching (MPLS) services

• Cisco MGX 8830/B, MGX 8850, MGX 8850/B, MGX 8880, and MGX 8950

• Cisco MGX 8800/8900 Software Release 5.2.00 and above for Cisco MGX 8830/B, MGX 8850, MGX 8850/B, and MGX 8950
• Cisco MGX 8800/8900 Software Release 5.3.00 and above for Cisco MGX 8880

• ATM and SONET/SDH

• 8 ports (4 ports at full line rate on the Cisco MGX 8800 chassis)

• Managed by Cisco WAN Manager software suite
• Based on Simple Network Management Protocol (SNMP)

• Input power required: -48 VDC
• Power consumption: 134W

• H x D: 15.83 x 15.65 in. (40.20 x 39.75 cm)

• 6.5 lb (2.95 kg)

Cisco MGX 8800 Series Switches

• The main features of the Cisco 8-Port OC-12/STM-4 Channelized/Unchannelized ATM Switch Service Module are listed here.
• Full nonblocking, full-duplex line-rate throughput on all 8 ports when used on the Cisco MGX 8950 chassis
• Up to 4 ports with nonblocking, full-duplex line-rate throughput when used on the Cisco MGX 8800 chassis
• Individual port channelization down to DS-3 and OC-3c/STM-1
• Per-virtual-path and per-virtual-circuit traffic shaping and available bit rate (ABR) with virtual source and virtual destination
• APS (1:1 and 1+1) port redundancy, plus APS 1+1 card redundancy
• Up to 4 million cell buffers
• Up to 16 classes of service (CoS) that can be used to support IP or ATM services
• Support for standards-based Private Network-to-Network Interface (PNNI), switched virtual circuit (SVC) and switched virtual path (SVP),
• soft permanent virtual connection (SPVC) and soft permanent virtual path (SPVP), and Multiprotocol Label Switching (MPLS) services

• Cisco MGX 8830/B, MGX 8850, MGX 8850/B, MGX 8880, and MGX 8950

• Cisco MGX 8800/8900 Software Release 5.2.00 and above for Cisco MGX 8830/B, MGX 8850, MGX 8850/B, and MGX 8950
• Cisco MGX 8800/8900 Software Release 5.3.00 and above for Cisco MGX 8880

• ATM and SONET/SDH

• 8 ports (4 ports at full line rate on the Cisco MGX 8800 chassis)

• Managed by Cisco WAN Manager software suite
• Based on Simple Network Management Protocol (SNMP)

• Input power required: -48 VDC
• Power consumption: 134W

• H x D: 15.83 x 15.65 in. (40.20 x 39.75 cm)

• 6.5 lb (2.95 kg)

Cisco MGX 8850 PXM 45 Processor Switch Module

• 64-bit MIPS-based processor operating at 700 MHz
• 45-Gbps switch fabric and 1.2-Gbps cell-bus (when used with chassis other than the Cisco MGX 8950)
• Cisco PXM-45/C used only as processor in Cisco MGX 8950; Cisco MGX-XM-60 provides switch-fabric function in that chassis
• Hot swappable
• 1:1 hot-standby redundancy
• User-selectable primary and secondary clock sources with graceful switchover
• Internal Stratum-3, external Building Integrated Timing Supply (BITS), or in-band clock sources
• In-band or out-of-band management using EIA/TIA-232 or 10BASE-T control ports
• Support for narrowband and broadband service modules scaling from DS-0 to OC-48c/STM-16 or DS-3/E3 to OC-192/STM-64 (depending on the chassis used)

• Cisco MGX 8830/B, MGX 8850, MGX 8850/B, MGX 8880, and MGX 8950

• Minimum Cisco MGX software release supporting Cisco PXM-45/C:
• Cisco MGX 8850 Software Release 4.0.15
• Cisco MGX 8950 Software Release 4.0.15
• Cisco MGX Software Release 5.0.20 (for Cisco MGX 8880 and MGX 8850/B)
• Cisco MGX Software Release 5.2.00 (for Cisco MGX 8830/B)

•  Managed by Cisco WAN Manager Software suite
•  Based on Simple Network Management Protocol (SNMP)

• Input power required: -48 VDC
• Power consumption: 128 W

• H x D: 15.75 x 16.5 in. (40.00 x 41.91 cm)

• 6.5 lbs

Cisco MGX 8830 ATM Multiservice Switch

• The main features of the Cisco MGX 8800/8900 16-Port OC-3c/STM-1 ATM Switch Service Module are listed here.
• Full nonblocking, full-duplex line-rate throughput on all 16 ports
• High reliability with hot-standby 1+1 16-port ATM switch service module card redundancy
• Per-virtual-path and per-virtual-circuit traffic shaping and available bit rate (ABR) with virtual source and virtual destination
• Y-cable and APS (1:1 and 1+1) port redundancy, plus APS 1+1 card redundancy
• Up to 4 million cell buffers
• Up to 16 classes of service (CoS) that can be used to support IP or ATM services
• Support for standards-based Private Network-to-Network Interface (PNNI), switched virtual circuit (SVC) and switched virtual path (SVP), soft permanent virtual connection (SPVC) and soft permanent virtual path (SPVP), and Multiprotocol Label Switching (MPLS) services

• Cisco MGX 8830/B, MGX 8850, MGX 8850/B, and MGX 8950

• Cisco MGX 8800/8900 SW Release 5.0.20 and above

• ATM and SONET/SDH

• 16 ports

•  Managed by Cisco WAN Manager software suite
•  Based on Simple Network Management Protocol (SNMP)

• Input power required: -48 VDC
• Power consumption: 114W

• H x D: 15.83 x 15.65 in. (40.20 x 39.75 cm)

• 6.5 lb (2.95 kg)

Cisco MGX 8850 AXSM Broadband ATM Switching Module

• User-Network Interface (UNI) Specifications 3.0, 3.1, 4.0

• Management using Cisco WAN Manager software suite
• Based on Simple Network Management Protocol (SNMP)

• Dimensions: (H x D) 15.83 x 15.65 in.

• Input power required: -48 VDC
• Power consumption: 95W

Cisco MGX XM60 Switching Module

• The Cisco MGX-XM60 Switching Module has the following primary features:
• Single-height card
• 60-Gbps nonblocking crosspoint switch fabric
• Dynamic sharing of capacity across multiple Cisco XM-60s, allowing for N + 1 redundancy
• Four installed in each Cisco MGX 8950 for 240-Gbps total capacity, 180-Gbps redundant capacity
• Hot card insertion/removal
• Complete separation from control processor, allowing data forwarding in the event of control card failure

• MGX 8950

• MGX S/W Releases supporting MGX-XM60:
• MGX Rls 4.0.15 and above

• Managed by Cisco WAN Manager Software suite
• Based on Simple Network Management Protocol (SNMP)

• Input power required: -48 VDC
• Power consumption: 61 W

• H x D: 7.25 x 16.5 in. (18.41 x 41.91 cm)

• 3.5 lb

Cisco MGX 8800 Hardware Installation Switch

• The main features of the Cisco 8-Port OC-12/STM-4 Channelized/Unchannelized ATM Switch Service Module are listed here.
• Full nonblocking, full-duplex line-rate throughput on all 8 ports when used on the Cisco MGX 8950 chassis
• Up to 4 ports with nonblocking, full-duplex line-rate throughput when used on the Cisco MGX 8800 chassis
• Individual port channelization down to DS-3 and OC-3c/STM-1
• Per-virtual-path and per-virtual-circuit traffic shaping and available bit rate (ABR) with virtual source and virtual destination
• APS (1:1 and 1+1) port redundancy, plus APS 1+1 card redundancy
• Up to 4 million cell buffers
• Up to 16 classes of service (CoS) that can be used to support IP or ATM services
• Support for standards-based Private Network-to-Network Interface (PNNI), switched virtual circuit (SVC) and switched virtual path (SVP),
• soft permanent virtual connection (SPVC) and soft permanent virtual path (SPVP), and Multiprotocol Label Switching (MPLS) services

• Cisco MGX 8830/B, MGX 8850, MGX 8850/B, MGX 8880, and MGX 8950

• Cisco MGX 8800/8900 Software Release 5.2.00 and above for Cisco MGX 8830/B, MGX 8850, MGX 8850/B, and MGX 8950
• Cisco MGX 8800/8900 Software Release 5.3.00 and above for Cisco MGX 8880

• ATM and SONET/SDH

• 8 ports (4 ports at full line rate on the Cisco MGX 8800 chassis)

• Managed by Cisco WAN Manager software suite
• Based on Simple Network Management Protocol (SNMP)

• Input power required: -48 VDC
• Power consumption: 134W

• H x D: 15.83 x 15.65 in. (40.20 x 39.75 cm)

• 6.5 lb (2.95 kg)

Cisco MGX 8850 PXM 45 Processor Switch Module

• 64-bit MIPS-based processor operating at 700 MHz
• 45-Gbps switch fabric and 1.2-Gbps cell-bus (when used with chassis other than the Cisco MGX 8950)
• Cisco PXM-45/C used only as processor in Cisco MGX 8950; Cisco MGX-XM-60 provides switch-fabric function in that chassis
• Hot swappable
• 1:1 hot-standby redundancy
• User-selectable primary and secondary clock sources with graceful switchover
• Internal Stratum-3, external Building Integrated Timing Supply (BITS), or in-band clock sources
• In-band or out-of-band management using EIA/TIA-232 or 10BASE-T control ports
• Support for narrowband and broadband service modules scaling from DS-0 to OC-48c/STM-16 or DS-3/E3 to OC-192/STM-64 (depending on the chassis used)

• Cisco MGX 8830/B, MGX 8850, MGX 8850/B, MGX 8880, and MGX 8950

• Minimum Cisco MGX software release supporting Cisco PXM-45/C:
• Cisco MGX 8850 Software Release 4.0.15
• Cisco MGX 8950 Software Release 4.0.15
•  Cisco MGX Software Release 5.0.20 (for Cisco MGX 8880 and MGX 8850/B)
• Cisco MGX Software Release 5.2.00 (for Cisco MGX 8830/B)

•  Managed by Cisco WAN Manager Software suite
•  Based on Simple Network Management Protocol (SNMP)

• Input power required: -48 VDC
• Power consumption: 128 W

• H x D: 15.75 x 16.5 in. (40.00 x 41.91 cm)

• 6.5 lbs

Cisco MGX 8800 Series Switches

• The main features of the Cisco MGX 8800/8900 16-Port OC-3c/STM-1 ATM Switch Service Module are listed here.
• Full nonblocking, full-duplex line-rate throughput on all 16 ports
• High reliability with hot-standby 1+1 16-port ATM switch service module card redundancy
• Per-virtual-path and per-virtual-circuit traffic shaping and available bit rate (ABR) with virtual source and virtual destination
• Y-cable and APS (1:1 and 1+1) port redundancy, plus APS 1+1 card redundancy
• Up to 4 million cell buffers
• Up to 16 classes of service (CoS) that can be used to support IP or ATM services
• Support for standards-based Private Network-to-Network Interface (PNNI), switched virtual circuit (SVC) and switched virtual path (SVP), soft permanent virtual connection (SPVC) and soft permanent virtual path (SPVP), and Multiprotocol Label Switching (MPLS) services

• Cisco MGX 8830/B, MGX 8850, MGX 8850/B, and MGX 8950

• Cisco MGX 8800/8900 SW Release 5.0.20 and above

• ATM and SONET/SDH

• 16 ports

• Managed by Cisco WAN Manager software suite
• Based on Simple Network Management Protocol (SNMP)

• Input power required: -48 VDC
• Power consumption: 114W

• H x D: 15.83 x 15.65 in. (40.20 x 39.75 cm)

• 6.5 lb (2.95 kg)

Cisco MGX 8850 AXSM Broadband ATM Switching Module

• AXSM can be used in the MGX 8850 to provide ATM capability up to OC-48c/STM-16.
• High scalability in interface speeds with T3/E3 ports, OC-3c/STM-1, OC-12c/STM-4, and OC-48c/ STM-16 AXSM modules. Each port on the AXSM can be configured for either trunk or access applications.
• Industry leading module port densities of 16 T3/E3 ports, 16 OC-3c/STM-1 ports, 4 OC-12c/STM-4 ports, and 1 OC-48c/ STM-16 port that can scale up to 12 OC-48c/STM-16 modules in each MGX 8850 Multiservice Switch. Each OC-48c/STM-16 delivers fully nonblocking, full duplex throughput, in which a connection can occupy the entire line rate.
• Support for all ATM service classes, with up to 16 classes of service (CoS). Supports carrier-class implementation of standards-based PNNI, SVC/SVP, SPVC/SPVP, and MPLS services. Large cell buffers (one million cells), which help to maximize "goodput" performance during congestion, reducing the number of retransmits; the buffers are allocated dynamically, depending on connection resource needs, thereby optimizing use of system resources.
• High reliability with hot-standby 1:1 AXSM card redundancy, 1:1 and 1+1 line redundancy using APS.

• Ports and trunks supported on same AXSM module
• User-Network Interface (UNI) Specifications 3.0, 3.1, 4.0

• Management using Cisco WAN Manager software suite
• Based on Simple Network Management Protocol (SNMP)

• Dimensions: (H x D) 15.83 x 15.65 in.

• Input power required: -48 VDC
• Power consumption: 95W

Cisco MGX 8950 Multiservice Switch

• High-density broadband ATM
• Scaling MPLS services
• Convergence of voice and data networks

• Scalability of up to 180-Gbps fully redundant nonblocking switching within a single chassis

• 10-Gbps ATM interfaces (OC-192c/STM-64)

• Industry-leading broadband density

• OC-3c/STM-1, OC-12c/STM-4, and OC-48c/STM-16 trunk aggregation

• Industry's highest network availability

•  MGX 4.0.15 release and later (depending on the service modules configured)

• AXSM-16-155-XG, AXSM-8-622-XG, AXSM-4-2488-XG, AXSM-1-9953-XG
• AXSM-16-T3E3/B, AXSM-1-2488/B
• MGX-RPM-PR-256, MGX-RPM-PR-512, MGX-RPM-XF-512

• PXM45/C Processor Switching Module (only processor function is used)
• Redundant slots 7 and 8 reserved for control card

• Control processor slots: 2 fixed double-height slots for primary and secondary
• Switching card slots: 2 fixed double-height slots divided into 4 single-height slots for 4 load-sharing XM60 switching cards
• Service module slots: 12 double-height slots

• T3/E3, OC-3/STM1, OC-12/STM-4, OC-48/STM-16, OC-192/STM-64, POS, Ethernet, Fast Ethernet, Gigabit Ethernet

• RJ-45 Ethernet port for the management interface at the node, and In-band ATM connection to reach remote node for management connectivity,
• DB-15 for the visual and audible alarm port, a command-line interface (CLI) for local management,
• Simple Network Management Protocol (SNMP) for the network management system interface, Secure File Transfer Protocol (SFTP) for file transfer and Secure Shell (SSHv1 and SSHv2) Protocol for remote CLI access

• (H x W x D): 35 x 19 x 22 inches (88.9 x 48.26 x 55.88 cm)
• Rack-mountable in 19- and 23-inch EIA/RETMA and ETSI racks

• Typical consumption: 5 kW for maximum configuration system

Cisco MGX 8800 Series 16 Port Switch

• Full nonblocking, full-duplex line-rate throughput

• High reliability with hot-standby 1+1 ATM switch service module card redundancy

• Per-virtual-path and per-virtual-circuit traffic shaping and available bit rate (ABR) with virtual source and virtual destination

• Up to 4 million cell buffers

• Up to 16 classes of service (CoS) that can be used to support IP or ATM services

• Support for standards-based Private Network-to-Network Interface (PNNI), switched virtual circuit (SVC) and switched virtual path (SVP), soft permanent virtual connection (SPVC) and soft permanent virtual path (SPVP), and Multiprotocol Label Switching (MPLS) services

• Cisco MGX 8950

• Cisco MGX Software Release 4.0.15 and above

• ATM and SONET/SDH

• 1 port

• User-Network Interface (UNI) 3.0, 3.1, and 4.0 physical layer specifications
• Compliance with the following SONET standards:
• Bellcore GR-253-CORE
• ANSI T1.105
• Compliance with the following SDH standards:
• ITU-T G.707, G.708, G.709, and G.783
• ITU-T G.957 and G.958
• Additional Physical Layer Specifications for Ports and Optics

• Managed by Cisco WAN Manager software suite
• Based on Simple Network Management Protocol (SNMP)

• Input power required: -48 VDC
• Power consumption: 205W

• H x D: 15.83 x 15.65 in. (40.20 x 39.75 cm)

• 6.5 lb (2.95 kg)

Cisco Nexus 9236C Switch

• Part Number : N9K-C92160YC-X
• Ports : 48 x 10- and 25-Gbps SFP+ and 6 QSFP+ ports (4 are 100-Gbps capable)
• Supported speeds :1, 10, and 25 Gbps on SFP+ ports
• 10, 25, 40, and 100 Gbps on QSFP+ ports
• Port configuration :48 x 10/25-Gbps ports for downlinks; 4 of the 6 uplink ports are 100-Gbps capable. Ports 50 and 52 can be
• individually configured into 1 x 100 Gbps, 4 x 10 Gbps, 4 x 25 Gbps, 1 x 40 Gbps, or 2 x 50 Gbps
• CPU : 2 cores
• System memory : 16G
• SSD drive : 24G
• Shared system buffer : 20MB
• Management ports 2 ports: 1 RJ-45 and 1SFP
• USB ports 1
• RS-232 serial ports :  1
• Power supplies (up to 2) : 650W AC, 930W DC, or 1200W AC/HVDC
• Physical dimensions : (H x W x D)
• 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
• Weight (without power supplies or fans)
• 14.12 lb (6.4 kg)

Cisco Nexus 92160YC X Switch

• N9K-C92160YC-X is one of the Cisco Nexus 9200 switches. 92160YC-X Switch is optimized for Cisco NX-OS deployments. It provides 48 1/10/25- Gb host ports and up to six hybrid uplink ports that can be configured as 10, 25, 40, or 100-Gb ports. With 3.2 Tbps of switching capacity, the 92160YC-X delivers line-rate Layer 2 and 3 features for demanding enterprise, service provider hosting, and cloud computing environments.

Cisco Nexus 92304QC Switch

• The Cisco Nexus 92304QC switch (N9K-C92304QC) is a 2-RU switch with the following ports:
• 56 fixed 40-Gigabit QSFP+ (optical) interface ports supporting 1-, 10-, and 40-Gigabit speeds
• 16 of these ports support breakout cables for connections to 64 1- and 10-Gigabit ports on other devices.
• 8 QSFP28 ports supporting 40- and 100-Gigabit speeds
• 1 console port
• 1 management port
• 2 software-defined ports (labeled as S1-65 and S1-66)
• 1 USB port

Cisco Nexus 93360YC FX2 Switch

• The Cisco Nexus 93360YC-FX2 Leaf Switch is a 2-Rack-Unit (2RU) Leaf switch that supports 7.2 Tbps of bandwidth and 2.8 bpps across 96 fixed 10/25G SFP+ ports and 12 fixed 40/10G QSFP28 ports. The 96 ports of downlinks support 1/10/25-Gbps. The 12 uplinks ports can be configured as 40- and 100-Gbps ports, offering flexible migration options. The switch is ideal for a non-oversubscribed solution in a compact form factor. The switch has FC-FEC and RS-FEC enabled for 25Gbps support over longer distances.
• Main Features
• FX2
• Switch
• L3
• managed
• 96 x 1/10/25 Gigabit SFP+ + 12 x 40/100 Gigabit QSFP28
• rack-mountable
• Built-in Devices :128 GB SSD
• Installed Size :16 GB
• Capacity :SPAN sessions: 4, Port channels: 512, VLANs supported: 3967, NAT entries: 1023, HSRP groups: 490, Longest prefix match (LPM) routes: 896000, Multicast routes: 32000, ACL entries (ingress): 5000, MST instances: 64, ECMP paths: 64, IP host entries: 896000, ACL entries (egress): 2000, MAC addresses: 256000, Rapid Per-VLAN Spanning Tree Plus instances: 3967
• Form Factor :Rack-mountable
• Ports Qty :96
• Advanced Switching :Layer 3
• Routing Protocol :ECMP, RSVP, BGP, PIM-SM, MSDP, OSPF, EIGRP, RIP, RIP-2, Multiprotocol BGP, HSRP, MPLS
• Manageable :Yes
• Status Indicators :Status
• Features :Layer 3 switching, Open Shortest Path First (OSPF), 3 fans, Port-side exhaust (PSE), Multicast Source Discovery Protocol (MSDP), MPLS support, Virtual Extensible LAN (VXLAN), MACsec support, Source-Specific Multicast (SSM), Access Control List (ACL) support, Virtual PortChannel (vPC) technology, 40MB system buffer, Spanning Tree Protocol (STP) support, Power On Auto Provisioning (POAP), Ethernet Virtual Private Network (EVPN), Multiple Spanning Tree Protocol (MSTP) support
• Interfaces :1 x management SFP+, 12 x 100Gbit/40Gbit LAN QSFP28, 96 x 1/10/25Gbit LAN SFP+, 1 x serial (RS-232), 1 x USB, 1 x management RJ-45
• Ports Type :40/100 Gigabit QSFP28
• Dimensions & Weight
• Width :17.4 inch
• Depth :22.9 inch
• Height :3.4 inch

Cisco Nexus 9336C FX2 Switch

• The Cisco Nexus 9336C-FX2 offers flexible port speeds in a compact form factor. Designed to meet the changing needs of data centers, big data applications, and automated cloud environments, this powerful switch delivers superior programmability.
• Main Features :
• FX2
• Switch
• L3
• managed
• 36 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28
• rack-mountable
• Built-in Devices :128 GB SSD
• Installed Size :24 GB
• Performance :Bandwidth: 2.8 bpps, Bandwidth: 7.2 Tbps
• Features :Ethernet Virtual Private Network (EVPN), Port exhaust, 40MB system buffer, Spanning Tree Protocol (STP) support, Virtual PortChannel (vPC) technology, Multiple Spanning Tree Protocol (MSTP) support, Power On Auto Provisioning (POAP), 3 fan trays, Side intake airflow, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Access Control List (ACL) support, MACsec support
• Type :100 Gigabit QSFP28 / 40 Gigabit QSFP28
• Interfaces :1 x management RJ-45, 1 x USB, 36 x 100Gbit/40Gbit LAN QSFP28, 1 x management SFP+, 1 x serial (RS-232)
• Type :Internal power supply
• Power Redundancy :Optional
• Installed Qty :0
• Max Supported Qty :2
• Nominal Voltage :AC 120/230 V
• Frequency Required :50/60 hertz
• Power Consumption Operational :777 watt
• Dimensions & Weight
• Width :17.3 inch
• Depth :24.5 inch
• Height :1.7 inch
• Weight :18.74 lbs

Cisco Nexus 93240YC FX2 Switch

• Architectural flexibility :
• Support for Cisco ACI architecture and NX-OS
• 48 x 1/10/25 Gbps fiber ports
• 12 x 40/100 Gbps QSFP28 ports
• Supports 4.8 Tbps of bandwidth and over 1.8 bpps
• Rich features :
• Automated, policy-based systems management with Cisco ACI
• Build programmable SDN fabrics leveraging open APIs and over 65 Cisco ACI global technology partners
• Enhanced Cisco NX-OS Software designed for performance, resiliency, scalability, manageability, and programmability
• Real-time buffer utilization per port and per queue, for monitoring traffic micro-bursts and application traffic patterns
• Highly available and efficient design :
• High-performance, Layer 2 and 3 non-blocking architecture
• Easily deployed into either a hot-aisle or cold-aisle configuration
• Redundant, hot-swappable power supplies and fan trays
• Specifications at a Glance :
• Powered by cloud-scale technology
• 48 x 1/10/25 Gbps fiber ports
• 12 x 40/100 Gbps QSFP28 ports
• 40 MB buffer
• Up to 4.8 Tbps of bandwidth

Cisco Nexus 9348GC FXP Switch

• The Cisco Nexus 9348GC-FXP Switch is a 1RU switch that supports 696 Gbps of bandwidth and over 250 mpps. The 48 1GBASE-T downlink ports on the switch can be configured to work as 100-Mbps, 1-Gbps ports. The 4 ports of SFP28 can be configured as 1/10/25-Gbps and the 2 ports of QSFP28 can be configured as 40- and 100-Gbps ports.
• Cisco Nexus 9348GC-FXP Switch is designed to meet the changing needs of data centers, big data applications, and automated cloud environments.
• Highlights points:
• Powered by Cisco Cloud Scale ASIC technology
• Support for Cisco NX OS Software and Cisco ACI (Application Centric Infrastructure) architecture
• High-performance, Layer 2 and 3 non-blocking architecture
• Easily deployed into either a hot-aisle or cold-aisle configuration
• Cisco Tetration Analytics Platform support with built-in hardware sensors for rich traffic flow telemetry and line-rate data collection
• Cisco Nexus Data Broker support for network traffic monitoring and analysis
• Robust hardware system specifications feature 4-core CPU, 24 GB of system memory, and respectively 128-GB SSD drive
• The 40-MB buffer supporting highly scalable data centers and big data applications 696 Gbps of bandwidth and over 250 mpps
• Fixed downlinks with 48 x FE/GE
• Fixed uplinks with 4 x 25GE SFP28, 2 x 100GE QSFP28

Cisco Nexus 9364C Switch

• Physical : 64-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports
• 1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)
• Hot-swappable, dual fan trays with redundant fans
• System memory: 32GB
• SSD: 256GB
• USB: 1 port
• RS-232 serial console ports: 1

• 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
• Broadwell-DE CPU: 4 cores
• Physical (H x W x D) 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)
• Weight (chassis) 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans

Cisco Nexus 9332C Switch

• Ports :32 QSFP+ ports
• Supported speeds :40 Gigabit Ethernet speeds
• Physical: (H x W x D) 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
• Weight 22 lb (10.0 kg) (without power supplies or fans)
• Predictable highperformance :
• Latency of 1 to 2 microseconds with up to 1.28 Tbps of bandwidth enables customers to build a robust switch fabric scaling
• from as few as 200 10-Gbps server ports to more than 200,000 10-Gbps server ports.
• Increased integrated buffer space :
• Up to a total of 50 MB of integrated shared buffer space allows better management of speed mismatch between access and
• uplink ports.
• Designed for availability :
• Hot-swappable, redundant power supplies and fan trays increase availability.
• Flexible airflow configuration:
• Port-side intake and port-side exhaust airflow configurations are both supported.
• CPU, SSD,and memory :
• Dual-core 2.5-GHz x86 CPUs with 64-GB SSD drive and 16 GB of memory provide enhanced network performance.
• Power efficiency :
• All Cisco Nexus 9000 Series power supplies are 80 Plus Platinum rated.
• Advanced optics :
• Cisco offers a pluggable 40 Gigabit Ethernet QSFP+ transceiver that enables customers to use existing 10 Gigabit Ethernet
• data center cabling to support 40 Gigabit Ethernet connectivity. This technology facilitates adoption of 40 Gigabit Ethernet
• with no cable infrastructure upgrade cost.

Cisco Nexus 9332PQ Switch

• Ports :32 QSFP+ ports
• Supported speeds :40 Gigabit Ethernet speeds
• Physical: (H x W x D) 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
• Weight 22 lb (10.0 kg) (without power supplies or fans)
• Predictable highperformance :
• Latency of 1 to 2 microseconds with up to 1.28 Tbps of bandwidth enables customers to build a robust switch fabric scaling
• from as few as 200 10-Gbps server ports to more than 200,000 10-Gbps server ports.
• Increased integrated buffer space :
• Up to a total of 50 MB of integrated shared buffer space allows better management of speed mismatch between access and
• uplink ports.
• Designed for availability :
• Hot-swappable, redundant power supplies and fan trays increase availability.
• Flexible airflow configuration:
• Port-side intake and port-side exhaust airflow configurations are both supported.
• CPU, SSD,and memory :
• Dual-core 2.5-GHz x86 CPUs with 64-GB SSD drive and 16 GB of memory provide enhanced network performance.
• Power efficiency :
• All Cisco Nexus 9000 Series power supplies are 80 Plus Platinum rated.
• Advanced optics :
• Cisco offers a pluggable 40 Gigabit Ethernet QSFP+ transceiver that enables customers to use existing 10 Gigabit Ethernet
• data center cabling to support 40 Gigabit Ethernet connectivity. This technology facilitates adoption of 40 Gigabit Ethernet
• with no cable infrastructure upgrade cost

Cisco Nexus 9336PQ ACI Spine Switch

• Device Type : Switch - 36 ports - L3 - managed
• Enclosure Type : Desktop, rack-mountable 2U
• Subtype : 40 Gigabit Ethernet
• Ports : 36 x 40 Gigabit QSFP+
• Performance : Bandwidth: 1.44 Tbps
• Capacity : Longest prefix match (LPM) entries (IPv4): 16000 ¦ Host table entries (IPv4): 88000 ¦ MAC addresses: 160000 ¦ IPv4 routes (Multicast): 32000 ¦ Virtual interfaces (VLANs): 4096 ¦ Equal-Cost Multipathing (ECMP) ways: 64 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Per-VLAN Spanning Tree Plus instances: 507 ¦ Virtual Routing and Forwarding (VRF) entries: 1000 ¦ IGMP snooping entries: 32000
• Jumbo Frame Support : Yes
• Routing Protocol : IS-IS, BGP, EIGRP, HSRP, VRRP, OSPFv2, PIM-SM, OSPFv3, MSDP, static IPv4 routing, ECMP, Bidirectional Forwarding Detection (BFD), VRRPv3
• Remote Management Protocol :SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2
• Authentication Method :
• RADIUS, PAP, CHAP, TACACS+, MS-CHAP, MS-CHAP v.2
• Features :
• Flow control, modular design, load balancing, VLAN support, IGMP snooping, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, RDMA support, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Virtual Routing and Forwarding (VRF), Class of Service (CoS), DiffServ Code Point (DSCP) support
• Compliant Standards :
• IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.3ba

Cisco Nexus 93108TC FX Switch

• Product Type :  Ethernet Switch
• Interfaces/Ports
• Total Number of Network Ports :  48
• Uplink Port :  Yes
• Modular  : Yes
• Stack Port : No
• Port/Expansion Slot Details : 48 x 10 Gigabit Ethernet Network
• Port/Expansion Slot Details :6 x 100 Gigabit Ethernet Expansion Slot
• Media & Performance
• Media Type Supported Optical Fiber
• Media Type Supported Twisted Pair
• Ethernet Technology 100 Gigabit Ethernet
• Ethernet Technology 10 Gigabit Ethernet
• Network Technology 100GBase-X
• Network Technology 10GBase-T
• I/O Expansions
• Number of Total Expansion Slots  : 6
• Expansion Slot Type :QSFP28
• Shared SFP Slot :No
• Network & Communication :
• Layer Supported :  3
• Management & Protocols
• Manageable  : Yes
• Power Description :
• Power Source Power Supply
• Redundant Power Supply Supported  : Yes

Cisco Nexus 93108TC EX Switch

• N9K-C93108TC-EX is one of the Cisco Nexus 9300-EX switches. Cisco Nexus 9300-EX platforms are the next generation of fixed Cisco Nexus
• 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services
• with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet
• the evolving needs of highly scalable data centers and growing enterprises.
• Ports :  48 x 10GBASE-T and 6 x 40/100-Gbps QSFP28 ports
• Downlink supported speeds :  100-Mbps and 1/10-Gbps speeds
• CPU : 4 cores
• System memory : 24 GB
• SSD drive : 64 GB
• System buffer  : 40 MB
• Management ports 2 ports: 1 RJ-45 and 1 SFP
• USB ports  : 1
• RS-232 serial ports : 1
• Power supplies (up to 2) :  650W AC, 930W DC, or 1200W HVAC/HVDC
• Typical power (AC/DC) :  290W
• Maximum power (AC/DC) : 499W
• Physical dimensions
• (H x W x D)
• 1.72 x 17.3 x 22.5 in.
• (4.4 x 43.9 x 57.1 cm)
• Weight (without power supplies or fans) 17.7 lb (8.0 kg)

Cisco Nexus 93120TX Switch

• Ports : 96 fixed 1/10GBASE-T and 6 QSFP+ ports
• Supported speeds :100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds
• 40 Gigabit Ethernet uplink
• ports : 6 fixed QSFP+ ports
• Physical (H x W x D) 3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm)
• Weight 26 lb (11.8 kg) (without power supplies, fans, or uplink module)
• Predictable high performance :
• Latency of 1 to 2 microseconds with up to 1.28 Tbps of bandwidth enables customers to build a robust switch fabric scaling
• from as few as 200 10-Gbps server ports to more than 200,000 10-Gbps server ports.
• Increased integrated buffer space :
• Up to a total of 50 MB of integrated shared buffer space allows better management of speed mismatch between access and
• uplink ports.
• Designed for availability :
• Hot-swappable, redundant power supplies and fan trays increase availability.
• Flexible airflow configuration :
• Port-side intake and port-side exhaust airflow configurations are both supported.
• CPU, SSD, and memory :
• Dual-core 2.5-GHz x86 CPUs with 64-GB SSD drive and 16 GB of memory provide enhanced network performance.
• Power efficiency :
• All Cisco Nexus 9000 Series power supplies are 80 Plus Platinum rated.
• Advanced optics :
• Cisco offers a pluggable 40 Gigabit Ethernet QSFP+ transceiver that enables customers to use existing 10 Gigabit Ethernet
• data center cabling to support 40 Gigabit Ethernet connectivity. This technology facilitates adoption of 40 Gigabit Ethernet
• with no cable infrastructure upgrade cost.

Cisco Nexus 93180YC FX Switch

• Device Type    : Switch - 48 ports - L3 - Managed
• Enclosure Type     :Rack-mountable 1U
• Subtype    :25 Gigabit Ethernet / 32Gb Fibre Channel
• Ports    :48 x 1/10/25 Gigabit Ethernet / 8/16/32Gb Fiber Channel / FCoE SFP+ + 6 x 40/100 Gigabit QSFP28 / FCoE
• Performance    :Bandwidth: 3.6 Tbps
• Active SPAN sessions: 4
• Capacity:     Multiple Spanning Tree Protocol instances: 64
• HSRP groups: 490
• Per VLAN Rapid Spanning Tree instances: 4000
• Maximum number of links in a port channel: 32
• Maximum number of port channels: 512
• ECMP paths: 64
• Virtual Routing and Forwarding (VRF) instances: 16000
• VLANs supported: 4096
• ACL entries (egress): 2000
• IGMP snooping groups: 32000
• Multicast routes: 32000
• Latency: < 1 µs
• MAC Address Table Size : 512K entries
• Routing Protocol    : OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS
• Features:    Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Virtual PortChannel (vPC) technology, MACsec support, 4 fans, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), 40MB system buffer, Power On Auto Provisioning (POAP)
• Compliant Standards :     IEEE 802.1ae
• RAM :    64 GB
• Built-in Devices : 128 GB SSD
• Interfaces    48 x 1/10/25Gbit LAN / 8/16/32Gb Fibre Channel SFP+ downlink
• 6 x 100Gbit/40Gbit LAN QSFP28 uplink
• 1 x management RJ-45
• 1 x USB
• 1 x serial (RS-232)

Cisco Nexus 93180LC EX Switch

• Device Type : Switch - 24 ports - L3
• Enclosure Type : Rack-mountable 1U
• Subtype : 50 Gigabit Ethernet
• Ports : 24 x 40/50 Gigabit QSFP+ + 6 x 40/100 Gigabit QSFP+
• Performance : Bandwidth: 3.6 Tbps ¦ Active SPAN sessions: 4
• Capacity : Multiple Spanning Tree Protocol instances: 64 ¦ HSRP groups: 490 ¦
• Per VLAN Rapid Spanning Tree instances: 4000 ¦ Maximum number of links in a port channel: 32 ¦ Maximum number of port channels: 512 ¦ ECMP paths: 64 ¦ Virtual Routing and Forwarding (VRF) instances: 1000 ¦ VLANs supported: 4096 ¦ ACL entries (egress): 2000 ¦ ACL entries (ingress): 4000 ¦ IGMP snooping groups: 8000 ¦ Multicast routes: 8000
• MAC Address Table Size : 512K entries
• Routing Protocol :OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS
• Features : Layer 3 switching, High Availability, hot swappable 4 fans, Virtual PortChannel (vPC) technology, In-Service Software Upgrade (ISSU), NPV Gateway mode, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), 40MB system buffer
• RAM : 24 GB
• Built-in Devices : 64 GB SSD
• The Cisco Nexus 93180LC-EX Switch is the industry's first 50-Gbps capable 1RU switch that supports 3.6 Tbps of bandwidth and over 2.6
• bpps across 24 fixed 40/50-Gbps QSFP+ ports. Ports numbered 25, 27, 29, 30, 31, and 32 are the 6 uplinks ports, which can be configured
• as 40- and 100-Gbps ports, offering flexible migration options. This switch is capable of supporting flexible port configurations.

Cisco Nexus 93180YC EX Switch

• Ports : 48 x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports
• Downlink supported speeds : 1/10/25-Gbps speeds
• CPU: 4 cores
• System memory: 24 GB
• SSD drive : 64 GB
• System buffer: 40 MB
• Management ports 2 ports: 1 RJ-45 and 1 SFP
• USB ports : 1
• RS-232 serial ports :  1
• Power supplies (up to 2) : 650W AC, 930W DC, or 1200W HVAC/HVDC
• Typical power (AC/DC) :  210W
• Maximum power (AC/DC) :  470W
• Physical dimensions c
• (H x W x D)
• 1.72 x 17.3 x 22.5 in.
• (4.4 x 43.9 x 57.1 cm)
• Weight (without power supplies or fans) 17.2 lb (7.8 kg)
• N9K-C93180YC-EX is one of the Cisco Nexus 9300-EX switches. Cisco Nexus 9300-EX platforms are the next generation of fixed Cisco Nexus
• 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services
• with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet
• the evolving needs of highly scalable data centers and growing enterprises.

Cisco Nexus 93600CD Switch

• Ports  : 28 x 100/40-Gbps QSFP28 ports and 8 x 400/100-Gbps QSFP-DD ports
• System memory :  16 GB NX-OS, 24 GB ACI
• Solid-State Disk : (SSD) 128 GB
• USB : 1 port
• RS-232 serial console ports  : 1
• Management ports : 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
• Broadwell-DE CPU  : 4 cores
• Dimensions (H x W x D) 1.72 x 17.37 x 25.5 in. (4.37 x 44.13 x 64.8 cm)
• N9K-C93600CD-GX is the Cisco Nexus 9316D Spine and Leaf switch with 28p 100/40G QSFP28 and 8p 400/100G QSFP-DD. Based on Cisco
• Cloud Scale technology, the Cisco Nexus 9300-GX switches are the next generation of fixed Cisco Nexus 9000 Series Switches. The platform
• introduces a fully backward-compatible 400G optical interface Quad Small Form-Factor Pluggable – Double Density (QSFP-DD) to transparently
• migrate existing data center fabrics from 40-Gbps and 100-Gbps speeds to 400 Gbps. The platform provides investment protection for
• customers, delivering highly flexible layer 2 and layer 3 scalability, and performance to meet the changing needs of virtualized data centers and
• automated cloud environments.

Cisco Nexus 9316D GX Switch

• Ports :  16 x 400/100/40-Gbps QSFP-DD ports
• System memory :  16 GB NX-OS, 24 GB ACI
• Solid-State Disk (SSD) :  128 GB
• USB  1 port
• RS-232 serial console ports 1
• Management ports 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
• Broadwell-DE CPU 4 cores
• Dimensions (H x W x D) 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)
• N9K-C9316D-GX is the Cisco Nexus 9316D Spine switch with 16p 400/100G QSFP-DD. Based on Cisco® Cloud Scale technology, the Cisco
• Nexus® 9300-GX switches are the next generation of fixed Cisco Nexus 9000 Series Switches. The platform introduces a fully backwardcompatible 400G optical interface Quad Small Form-Factor Pluggable – Double Density (QSFP-DD) to transparently migrate existing data center
• fabrics from 40-Gbps and 100-Gbps speeds to 400 Gbps. The platform provides investment protection for customers, delivering highly flexible
• layer 2 and layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.

Cisco Nexus 9504 Switch

• The Cisco Nexus 9504 Switch offers a comprehensive feature set, high resiliency, and a broad range of high performance Gigabit Ethernet line cards. It can meet the most demanding requirements of enterprise, service provider, and cloud data centers.

• Support for the next-generation data center based on Cisco ACI
• Nexus Fabric Manager support to automate fabric configuration and management
• Traditional data centers in standalone NX-OS mode

• Open API to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS
• Automated configuration through Linux shell scripts
• Support for customer applications through a Linux container environment
• Programmable APIs for integration with DevOps automation tools

• In-Service Software Upgrade (ISSU) and patching without operation interruption Redundant and hot-swappable supervisors, system controllers, power supplies, and fan trays
• Mix of third-party and Cisco application-specific integrated circuits (ASICs) for improved reliability

• Designed without a midplane to optimize front-to-back airflow and reduce power consumption
• Optimized design with fewer ASICs, resulting in lower energy use
• Efficient power supplies that are rated at 80 Plus Platinum

• 10 Gigabit Ethernet nonblocking ports Up to 512
• 25 Gigabit Ethernet Ports Up to 512
• 50 Gigabit Ethernet Ports Up to 256
• 40/100 Gigabit Ethernet nonblocking ports Up to 144
• 1/10GBASE-T nonblocking ports Up to 192
• Form factor 7-rack-unit chassis
• Line card slots 4
• Airflow Front to back

Cisco Nexus 9508 Switch

• The Cisco Nexus 9508 Switch offers a comprehensive feature set, high resiliency, and a broad range of 1/10/40 Gigabit Ethernet line cards to meet the most
• demanding requirements of enterprise, service provider, and cloud data centers.

• Designed to support the Cisco next-generation data center based on Cisco ACI

• Open API to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS
• Automated configuration through Linux shell scripts
• Support for customer applications through a Linux container environment

• Full Cisco In-Service Software Upgrade (ISSU) and patching support
• Redundant and hot-swappable supervisors, system controllers, power supplies, and fan trays
• Mix of third-party and Cisco application-specific integrated circuits (ASICs) for improved reliability

• Design without a midplane to optimize front-to-back airflow and reduce power consumption
• Optimized design with fewer ASICs, resulting in lower energy use
• Efficient power supplies that are rated at 80 Plus Platinum

• 30 Tbps of nonblocking performance
• Up to 1152 10 Gigabit Ethernet nonblocking ports
• Up to 288 40 Gigabit Ethernet nonblocking ports
• Up to 384 1/10GBASE-T nonblocking ports
• 13-rack-unit chassis
• 8 line card slots
• Front-to-back airflow

Cisco Nexus 9516 Switch

• The Cisco Nexus 9516 Switch offers a comprehensive feature set, high resiliency,
• and a broad range of 1/10/40 Gigabit Ethernet line cards. It can meet the most demanding requirements of enterprise, service provider, and cloud data centers.

• Designed to support the Cisco next-generation data center based on Cisco ACI

• Open API to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS
• Automated configuration through Linux shell scripts
• Support for customer applications through a Linux container environment

• Software patching for continued operations
• Redundant and hot-swappable supervisors, system controllers, power supplies, and fan trays
• Mix of third-party and Cisco application-specific integrated circuits (ASICs) for improved reliability

• Design without a midplane to optimize front-to-back airflow and reduce power consumption
• Optimized design with fewer ASICs, resulting in lower energy use
• Efficient power supplies that are rated at 80 Plus Platinum

• 40 Gb  for reuse of existing 10 Gigabit Ethernet multimode cabling plant for 40 Gigabit Ethernet
• Support for Cisco NX-OS and Cisco ACI modes of operation
• Support for Cisco Nexus 2000 Series Fabric Extenders

• Form factor : 21 RU
• Line card slots : 16
• Supervisor slots : 2
• Fabric module slots : 6
• ACI support :Yes
• Bandwidth per slot (Tbps) : 3.84
• Bandwidth per system (Tbps) : 60
• Maximum number of 1/10G BASE-T ports : 768
• Maximum number of 10 GE ports : 2304
• Maximum number of 40 GE ports : 576
• Maximum number of 100GE ports : 576
• Airflow : Front to back
• Power supplies (3-kW AC/DC) : Up to 10
• Fan trays : 3

D Link DGS F1010P E 10 Port Fast Ethernet Switch

• Brand: D Link
• Product Model No: DGS F1010P E
• Item Code: DLNT0578
• Port: 250M 10 Port 1000Mbps Switch with 8 PoE Ports and 2 Uplink Ports
• Dimensions: 184 x 75 x 27 mm
• Power: 96 W
• warranty: 1 years

D Link DGS 1210 10 Web Smart Switch

• Brand:D-Link
• Colour:Grey
• Item Height:44 Millimeters
• Item Width:28 Centimeters
• Item Weight:948 g
• Product Dimensions:12.6 x 28 x 4.4 cm
• Item model number:DGS-1210-10P
• Processor Count:1
• Wireless Type:802.11.n
• Number of Ethernet Ports:8
• Voltage:240 Volts
• Wattage:14.45 Watts

D Link DGS 1510 28X Switch

• Brand Name: D-Link
• Series: SMARTPRO 28PORT GB SWITCH
• Item model number: DGS-1510-28X
• Hardware Platform: PC
• Item Weight: 4.2 pounds
• Product Dimensions: 8.3 x 17.3 x 1.7 inches
• Item Dimensions L x W x H: 8.26 x 17.32 x 1.73 inches
• Color: Black
• Processor Count: 1
• Voltage: 240 volts

D Link DGS 1210 52 48 Port Gigabit Smart Switch

• Brand : D-Link
• Model : DGS-1210-52
• Color : Grey
• 1000Base-T Interface : 48
• Combo 1000Base-T/SFP : 4
• Auto MDI/MDIX : Yes
• 10/100/1000BASE-T ports : 48
• Combo 10/100/1000BASE-T/SFP ports : 4
• Switch Capacity : 104 Gbps
• Max. Packet Forwarding Rate : 77.4 Mpps
• Store & Forwarding Forwading : Yes
• Dimension : 440mm x 210 mm x 44mm
• Weight : 3.46 kg
• Power Input : 100-240 VAC
• CPU Speed : 700MHz
• DRAM Size : 128MB
• Flash Memory Size : 32MB
• Packet Buffer Size : 12Mbits
• FAN : Fanless
• Operation Temperature : -5 - 50°C
• Storage Temperature : -20-70°C
• Operation Humidity : 0% - 95% RH
• Storage Humidity : 0% ~ 95% RH
• Operating Altitude : 1500 meters
• Maximum Power Consumption : 34.85 W/100 V <br>34.2 W/240 V
• Standby Power Consumption : 13.7 W/100V / 13.9 W/240V
• Maximum Heat Dissipation : 118.92 BTU/hr (100V) <br>116.7 BTU/hr (240V)

D Link DGS 1210 28MP 28 Port Gigabit Smart Managed PoE Switch

• Brand Name: D-Link
• Series: D-LINK SYSTEMS, INC
• Item model number: DGS-1210-28MP
• Item Weight: 8.75 pounds
• Product Dimensions: 17.3 x 9.8 x 1.7 inches
• Item Dimensions L x W x H: 17.32 x 9.84 x 1.73 inches
• Color: Black
• Processor Count: 1
• Flash Memory Size: 32

D Link DES 1210 28P Port Fast Ethernet WebSmart Switch

• Brand: D-Link
• Item Height: 44 Millimeters
• Item Width: 33 Centimeters
• Item Weight: 1.56 Kg
• Product Dimensions: 18 x 33 x 4.4 cm
• Item model number: DES-1210-28
• Wattage: 17.06 Watts

Dell Networking N2048P Switch

• Switch Fabric Capacity (full duplex): 220Gbps
• Forwarding Rate: 164Mpps
• CPU Memory: 1GB
• Flash Memory: 256MB
• Packet Buffer Memory: 4MB
• 1GbE Port Attributes: 48x RJ45 auto-sensing (1Gb/100Mb/10Mb) PoE+ fixed ports
• Integrated 2.5GbE ports: not available
• Power-over-Ethernet Plus (PoE+): yes
• 60W Power-over-Ethernet (PoE 60W): not available
• Maximum PoE Watts per port: 30.8 watts on 48 ports
• RPS720 External Power Supply for N2000 non-POE (720 watts): not available
• MPS1000 External Power Supply for N2000 POE+ Switches (1000 watts): option available

Dell Networking N2128PX ON Switch

• Switch Fabric Capacity (full duplex): 192Gbps
• Forwarding Rate: 256Mpps
• CPU Memory: 2GB
• Flash Memory: 512MB
• Packet Buffer Memory: 5MB
• 1GbE Port Attributes: 24x RJ45 auto-sensing (1Gb/100Mb/10Mb) PoE+ fixed ports
• Integrated 2.5GbE ports: 4x RJ45 PoE 60W fixed ports
• Power-over-Ethernet Plus (PoE+): yes
• 60W Power-over-Ethernet (PoE 60W): standard
• Maximum PoE Watts per port: 30.8W on 24 1GbE ports; 60W on 4 2.5GbE port
• RPS720 External Power Supply for N2000 non-POE (720 watts): option available
• MPS1000 External Power Supply for N2000 POE+ Switches (1000 watts): not available

Dell Networking N2048 Switch

• Switch Fabric Capacity (full duplex): 220Gbps
• Forwarding Rate: 164Mpps
• CPU Memory: 1GB
• Flash Memory: 256MB
• Packet Buffer Memory: 4MB
• 1GbE Port Attributes: 48x RJ45 auto-sensing (1Gb/100Mb/10Mb) fixed ports
• Integrated 2.5GbE ports: not available
• Power-over-Ethernet Plus (PoE+): not available
• 60W Power-over-Ethernet (PoE 60W): not available
• Maximum PoE Watts per port: not available
• RPS720 External Power Supply for N2000 non-POE (720 watts): option available
• MPS1000 External Power Supply for N2000 POE+ Switches (1000 watts): not available

Dell Networking N2024P PoE Switch

• Switch Fabric Capacity (full duplex): 172Gbps
• Forwarding Rate: 128Mpps
• CPU Memory: 1GB
• Flash Memory: 256MB
• Packet Buffer Memory: 4MB
• RPS720 External Power Supply for N2000 non-POE (720 watts): not available
• MPS1000 External Power Supply for N2000 POE+ Switches (1000 watts): option available

Dell Networking N2024 Switch

• Switch Fabric Capacity (full duplex): 172Gbps
• Forwarding Rate: 128Mpps
• CPU Memory: 1GB
• Flash Memory: 256MB
• Packet Buffer Memory: 4MB
• 1GbE Port Attributes: 24x RJ45 auto-sensing (1Gb/100Mb/10Mb) fixed ports
• Integrated 2.5GbE ports: not available
• Power-over-Ethernet Plus (PoE+): not available
• 60W Power-over-Ethernet (PoE 60W): not available
• Maximum PoE Watts per port: not available
• RPS720 External Power Supply for N2000 non-POE (720 watts): option available
• MPS1000 External Power Supply for N2000 POE+ Switches (1000 watts): not available

Dell Networking N2000 Series

• 1GbE Port Attributes: 48x RJ45 auto-sensing (1Gb/100Mb/10Mb) fixed ports
• Integrated 2.5GbE ports: not available
• Power-over-Ethernet Plus (PoE+): not available
• 60W Power-over-Ethernet (PoE 60W): not available
• Maximum PoE Watts per port: not available

Dell Networking X4012 Switch

• 10/100/1000Base-T auto-sensing Gigabit Ethernet switching ports: not available
• SFP/SFP + fiber ports: 12 SFP/SFP+
• Power over Ethernet (PoE) ports: not available
• PoE powered: not available
• Power reduction for short cables or inactive connections: not available
• Autonegotiation for speed, duplex mode and flow control: not available
• Auto-MDI/MDIX mode and flow control: not available

Dell EMC Networking X1052 switch

• 10/100/1000Base-T auto-sensing Gigabit Ethernet switching ports: 48
• SFP/SFP + fiber ports: 4 SFP/SFP +
• Power over Ethernet (PoE) ports: not available
• PoE powered: not available
• Power reduction for short cables or inactive connections: standard
• Autonegotiation for speed, duplex mode and flow control: standard
• Auto-MDI/MDIX mode and flow control: standard

Dell EMC Networking X1026 switch

• 10/100/1000Base-T auto-sensing Gigabit Ethernet switching ports: 24
• SFP/SFP + fiber ports: 2 SFP
• Power over Ethernet (PoE) ports: not available
• PoE powered: not available
• Power reduction for short cables or inactive connections: standard
• Autonegotiation for speed, duplex mode and flow control: standard
• Auto-MDI/MDIX mode and flow control: standard

Dell Networking X1018 switch

• 10/100/1000Base-T auto-sensing Gigabit Ethernet switching ports: 16
• SFP/SFP + fiber ports: 2 SFP
• Power over Ethernet (PoE) ports: not available
• PoE powered: not available
• Power reduction for short cables or inactive connections: standard
• Autonegotiation for speed, duplex mode and flow control: standard
• Auto-MDI/MDIX mode and flow control: standard

Dell EMC PowerSwitch N1148T ON Switch

• 1GbE Port Attributes Multi-speed: 48x 10/100/1000Mbps half/full duplex RJ45 ports
• 1GbE Port Attributes Single-speed: N/A
• Integrated 1GbE SFP dedicated ports: N/A
• Integrated 10GbE SFP+ dedicated ports: 4

Dell EMC PowerSwitch N1124T ON Switch

• Approximate Weight in pounds: 8.33lbs
• Approximate Weight in kilograms: 3.78kg
• Power Supply (Watts): 250W AC
• Max Thermal Output (BTU/hr): 851.66

Dell EMC PowerSwitch N1108T ON Switch

• Product Dimensions: 13 x 17.2 x 3.5 inches
• Item Weight: 3.54 pounds
• Shipping Weight: 8.2 pounds
• Manufacturer: Dell Technologies
• ASIN: B0754L74B1
• Item model number: TXTN6

Dell Networking N2000 Series

• Device Type: Power supply - hot-plug / redundant - plug-in module
• Power Capacity: 200-Watt
• Designed For: Networking N3024, N3024F, N3048

Dell EMC PowerSwitch N1148P ON Switch

• Product Dimensions: 2 x 4 x 8 inches
• Item Weight: 12.1 pounds
• Shipping Weight: 9.28 pounds
• ASIN: B077BCDW9T
• Item model number: F0TCG

Dell EMC PowerSwitch N1108P ON Switch

• Product Dimensions: 10 x 8.5 x 1.8 inches
• Item Weight: 4.43 pounds
• Shipping Weight: 4.33 pounds (View shipping rates and policies)
• ASIN: B077BGQ87B
• Item model number: 6G93K
• Best Sellers Rank: Computer Networking Switches

Dell Power over Ethernet

• Implementing high-performance and scalable workgroup connectivity for growing networks
• Deploying high-speed aggregation to the network backbone
• Simplify power planning and reduce power installation requirements
• Gigabit and 10Gb uplinks for fast server connections or network aggregation
• Wire-speed performance across all ports to expedite delivery of mission critical data
• Up to 15.4W of power supports VoIP, WLAN APs and badge readers directly connected to switches
• PoE+ support for up to 30W Class 4 peripherals with 7000 Series
• Select models are hardware guaranteed with Lifetime Limited Warranty1 for as long as you own the product

HPE Aruba J9775A 2530 48G Switch

• Part No : J9775A
• Model no: HPE 2530 48G Switch
• Memory: 128 MB flash memory
• Capacity: 104 Gbps
• Specifications: IPv6, 48 10/100/1000 ports, 4 SFP ports
• Warranty: 3 Years Warranty

HPE Aruba J9773A 2530 24G PoE Switch

• Part No: J9773A
• Model no: HPE 2530 24GPoE+ Switch
• Memory: 256 MB
• Specifications: 10/100/1000 PoE+ ports,4 SFP ports (195W PoE+)
• Warranty: 3 Years Warranty

HPE Aruba J9776A 2530 24 Port Gigabit Switch

• Part No: J9776A
• Model no: HPE 2530 24G Switch
• Ram: 256 MB
• Specifications: 10/100/1000 ports, 4 SFP ports
• Warranty: 3 Years Warranty

D Link DGS 1510 28X Gigabit SmartPro Stackable Switch

• Brand Name:D-Link
• Series:SMARTPRO 28PORT GB SWITCH
• Model number:DGS-1510-28X
• Hardware Platform:PC
• Weight:4.2 pounds
• Product Dimensions:8.3 x 17.3 x 1.7 inches
• Item Dimensions L x W x H:8.26 x 17.32 x 1.73 inches
• Color:Black
• Processor Count:1
• Voltage:240 volts
• Warranty : 5 Years Warranty

D Link DGS 1210 28 ME Gigabit Metro Ethernet Switch

• Interfaces Size : 19 inch standard rackmount width
• Port : RJ 45 console port
• Network Cables : UTP Cat. 5, Cat. 5e (100 m max.)
• Switching Capacity : 56 Gbps
• RAM for CPU : 128 MB DDR3
• Packet Buffer : 1.5 MB
• Memory : 32 MB
• Power Input : AC Input: 100 to 240 V AC, 50/60 Hz
• Power Consumption : 22.45 Watts / 17.84 Watts (Standby)
• Dimensions : 440 mm x 140 mm x 44 mm
• Warranty : 5 Years Warranty

D Link DES 1210 28 ME Gigabit Metro Ethernet Switch

• Interfaces Size : 19 inch standard rackmount width
• Switching Capacity: 12.8Gbps
• Ports : 24 10/100 Base TX
• SDAM for CPU: 128 MB DDR2
• Packet Buffer Memory: 384KB
• Flash memory: 16MB
• Power Input : 100 to 240 V AC, 50/60 Hz
• Power Consumption : 15.5W
• Dimensions : 440 x 140 x 44mm
• Warranty : 5 Years Warranty

D Link DGS 1210 52 Gigabit Smart Switch

• Brand:D Link
• Colour:Grey
• Height:44 Centimeters
• Width:44 Millimeters
• Weight:4.5 Kg
• Product Dimensions:21 x 4.4 x 44 cm
• Model number:DGS 1210 52
• RAM Size:128 MB
• Warranty : 5 Years Warranty

D Link DES 1210 28 Fast Ethernet WebSmart Switch

• Brand:D Link
• Height:44 Millimeters
• Width:44 Centimeters
• Weight:1.56 Kg
• Product Dimensions:21 x 44 x 4.4 cm
• Model number:DES-1210-28
• Wattage:17.06 Watts
• Warranty : 5 Years Warranty

D Link DGS 1210 28MP Port Gigabit Smart Switch

• Switch Capacity    : 56 Gbps
• 1000Base-T PoE Interface : 24
• Auto MDI/MDIX : Yes
• Dimension : 440mm x 250 mm x 44mm
• Weight : 3.94 kg
• CPU Speed : 500MHz
• Packet Buffer Size : 4.1MBits
• Power Input    : 100 240 VAC
• PoE Budget : 370 W
• Warranty : 5 Years Warranty

D Link DGS 1210 28 Port Gigabit Smart Switch

• Switch Capacity    : 56 Gbps
• 1000Base-T PoE Interface : 24
• Combo 10/100/1000BASE-T/SFP ports : 4
• Dimension : 440mm x 250 mm x 44mm
• Weight : 3.75 kg
• CPU Speed : 500MHz
• PoE Budget : 193 W
• Warranty : 5 Years Warranty

D Link DES 1210 28P Fast Ethernet Smart Managed Switch

• 1000Base T PoE Interface : 24
• Combo 1000Base-T/SFP : 4
• Auto MDI/MDIX : Yes
• 10/100/1000BASE-T PoE ports    : 24
• Combo 10/100/1000BASE T/SFP ports : 4
• Switch Capacity    : 56 Gbps
• Max. Packet Forwarding Rate    : 41.7 Mpps
• Weight : 3.75 kg
• Dimension : 440mm x 250 mm x 44mm
• Warranty : 5 Years Warranty

D Link DES F1009P E Unmanaged PoE Switch

• Brand : D Link
• Model Number : DES F1009P E
• PoE ports : 8
• Uplink ports : 1
• Switching Capacity : 1.8 Gbps
• Forwarding rate: 10M : 14800pps,100M : 148,800pps
• Power Budget:120W
• Warranty : 1 Year Warranty

D Link DES F1006P E 4 Port Unmanaged PoE Switch

• Interfaces: 4 10/100 BASE-T ports,2 10/100 BASE-T Uplink ports
• Media Interface Exchange: Auto MDI/MDI-X adjustment on all ports
• Lighting Protection:6KV
• Transmission Method:Adopt Store-and-forward
• Packet Filtering / Forwarding Rates:10M port maximum 14800pps,100M port maximum 148800pps
• PoE Standards:IEEE 802.3af,IEEE 802.3at
• PoE-Capable Ports:Ports 1 to 4
• Power Budget:60 W (36 W max. per PoE port)
• Dimensions:125 x 75 x 27 mm
• Power:External power adapter: 60W
• Temperature:Operating: 0 to 40 ?C (32 to 104 ?F)
• Humidity:Operating: 0% to 95% RH non-condensing
• Warranty : 1 Year Warranty

D LINK DGS 1008A SWITCH

• Brand : D Link
• Model : DGS 1008A
• Item Weight  : 272 g
• Operating System : Windows
• Power : 5V/1A Power Adapter
• Included Components : 8 Port Gigabit Easy Desktop Switch(DGS-1008A), Quick Install Guide and Warrenty documents and Power Adapter
• Warranty : 3 Years Warranty

D Link DES 1024D Unmanaged Switch

• Type : Unmanaged
• Number of ports : 24 10/100Mbps Fast Ethernet ports
• Main type of ports : 100BASE-TX Fast Ethernet
• Switching capacity : 4.8 Gbps
• Weight : 3.652lbs
• Warranty : 3 Years Warranty

Dell KVM Switch

• 8 Port Remote
• With 470mm (18.5") LED Dell KMM
• Free installation

HPE PROCURVE 5500 48G POE EI SWITCH

HPE 5500 24G 4SFP HI SWITCH

DELL V3JJH NETWORKING S4048 ON SWITCH

• Line-rate : 48 x 10GbE SFP+ ports or 72 10GbE
• ports : ports with breakout cables
• 40GbE ports : 6 x 40GbE QSFP+ ports
• Power supply : 100 - 240 VAC 50/60 Hz
• memory : 12MB

DELL 210 AEVX NETWORKING N1524 24X SWITCH

• Device Type : SWITCH - 24 PORTS - L2+ - MANAGED - STACKABLE
• Subtype : GIGABIT ETHERNET
• Ports : 24 X 10/100/1000 + 4 X 10 GIGABIT SFP+
• MAC Adderss Table Size : 16000 ENTRIES
• Authentication Method : SECURE SHELL (SSH), RADIUS, TACACS+
• Remote Management Protocol : TELNET, TFTP

Dell EMC S4148U ON Switch

• Device Type:Switch - 48 ports - L3 - Managed
• Bundled Services:3 years Pro Support with Mission Critical 4h
• Enclosure Type:Rack-mountable 1U
• Subtype:10 Gigabit Ethernet
• Ports:48 x 10 Gigabit SFP+ + 4 x 100 Gigabit QSFP28 + 2 x 40 Gigabit QSFP+
• Performance:Switching capacity: 1.76 Tbps
• Throughput: 1320 Mpps
• Capacity:ARP entries: 200000
• IPv4 routes: 200000
• IPv6 routes: 130000
• IPv6 hosts: 130000
• Multicast hosts: 8000
• Links per group: 32
• Link aggregation groups: 128
• Layer 2 VLANs: 4000
• Layer 2 VLANs: 500
• MSTP instances: 32
• PVST instances: 128
• Maximum ACL rules per interface (IPv4) ingress rules: 6000
• Maximum ACL rules per interface (IPv4) egress rules: 1000
• Maximum ACL rules per interface (IPv6) ingress rules: 3000
• Maximum ACL rules per interface (IPv6) egress rules: 500
• MAC Address Table Size:272000 entries
• Routing Protocol:OSPF, BGP-4, OSPFv2, policy-based routing (PBR)
• Remote Management Protocol:SNMP 1, SNMP 2
• Encryption Algorithm MD5
• Authentication Method:RADIUS, TACACS
• Features:Flow control, ARP support, port mirroring, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), front to back airflow, LACP support, LLDP support, Dynamic VLAN Support (GVRP), 4 fans, Priority-Based Flow Control (PFC), Internet Control Message Protocol (ICMP), DNS client
• Compliant Standards:IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bj
• RAM:4 GB
• Expansion / Connectivity:Interfaces 24 x 10Gbit LAN SFP+
• 24 x 8/16Gb Fibre Channel SFP+
• 2 x 40Gbit LAN QSFP+
• 4 x 25Gbit LAN / 16/32Gb Fibre Channel QSFP28
• 1 x serial (RS-232) RJ-45 management
• 1 x 10/100/1000 Base-T RJ-45 management
• 1 x console (micro-USB) RJ-45
• Power
• Power Device:External power adapter - hot-plug
• Power Consumption Operational:460 Watt

Dell EMC S4112T Switch

• Port Specifications:12 ports 10GBase-T
• 3 ports 100GbE
• Performance:630 million packets per second
• Routing:Full-featured switching and routing of the second and third levels
• VLAN:VLAN network labeling, double VLAN network labeling, GVRP
• Quality of service:Yes
• Multicast:Yes
• Security:Yes
• Control :SNMP command line interface REST APIs
• Housing:half width fixed 1RU ports
• Standards Supported:IEEE - 802.1, 802.3
• RFC - IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP, Multicast, Security, Data Center Bridging, Network Management
• Nutrition:100–240 V AC, 50/60 Hz
• Interference resistance EN 300 386 V1.4.1: 2008 "Electromagnetic compatibility for network equipment", EN 55024: 1988 + A1: 2001 + A2: 2003, EN 61000-3-2 "Emission of harmonic currents", EN 61000-3-3 "Voltage fluctuations and flicker, "EN 61000-4-2" ESD ", EN 61000-4-3" Resistance to radio frequency electromagnetic field ", EN 61000-4-4" EFT ", EN 61000-4-5" Voltage surge ", EN 61000-4-6 "Resistance to low-frequency conducted noise"
• Rohs:All S-Series components comply with the EU Directive on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (RoHS)
• Security:Second edition of UL / CSA 60950-L, second edition of EN 60950-1, second edition of IEC 60950-1, including all national deviations from standards and group differences, EN 60825-1 "Safety of laser devices. Part 1. Classification of equipment, requirements and user manual, "EN 60825-2," Safety of laser devices. Part 2. Safety of fiber-optic communication systems, FDA 21 CFR 1040.10 and 1040.11 requirements

Dell EMC S4112F Switch

• Port Specifications:12 ports 10GBase-T
• 3 ports 100GbE
• Performance:630 million packets per second
• Routing:Full-featured switching and routing of the second and third levels
• VLAN:VLAN network labeling, double VLAN network labeling, GVRP
• Quality of service:Yes
• Multicast:Yes
• Security:Yes
• Control :SNMP command line interface REST APIs
• Housing:half width fixed 1RU ports
• Standards Supported:IEEE - 802.1, 802.3
• RFC - IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP, Multicast, Security, Data Center Bridging, Network Management
• Nutrition:100–240 V AC, 50/60 Hz
• Interference resistance EN 300 386 V1.4.1: 2008 "Electromagnetic compatibility for network equipment", EN 55024: 1988 + A1: 2001 + A2: 2003, EN 61000-3-2 "Emission of harmonic currents", EN 61000-3-3 "Voltage fluctuations and flicker, "EN 61000-4-2" ESD ", EN 61000-4-3" Resistance to radio frequency electromagnetic field ", EN 61000-4-4" EFT ", EN 61000-4-5" Voltage surge ", EN 61000-4-6 "Resistance to low-frequency conducted noise"
• Rohs:All S-Series components comply with the EU Directive on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (RoHS)
• Security:Second edition of UL / CSA 60950-L, second edition of EN 60950-1, second edition of IEC 60950-1, including all national deviations from standards and group differences, EN 60825-1 "Safety of laser devices. Part 1. Classification of equipment, requirements and user manual, "EN 60825-2," Safety of laser devices. Part 2. Safety of fiber-optic communication systems, FDA 21 CFR 1040.10 and 1040.11 requirements

Dell EMC Networking N1124P ON switch

• Product Description :Dell EMC Networking N1124P-ON - switch - 24 ports - managed - rack-mountable
• Device Type :Switch - 24 ports - managed - stackable
• Enclosure Type :Rack-mountable 1U
• Subtype :Gigabit Ethernet
• Ports :24 x 10/100/1000 (12 PoE+) + 4 x 10 Gigabit SFP+
• Power Over Ethernet (PoE) :PoE+
• PoE Budget :190 W
• Performance :Switching fabric bandwidth: 128 Gbps ¦ Forwarding performance: 96 Mpps
• Capacity :MAC addresses: 16000 ¦ Aggregated links (dynamic): 144 ¦ LAG groups: 64 ¦ Queues per port: 8 ¦ VLANs supported: 512 ¦ ARP entries: 2048 ¦ NDP entries: 400 ¦ Max ACL rules system-wide: 4000 ¦ ACL: 100 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 1023 ¦ Maximum ACL rules per interface (IPv4) egress rules: 1023 ¦ Maximum ACL rules per interface (IPv6) ingress rules: 1021 ¦ Maximum ACL rules per interface (IPv6) egress rules: 253
• MAC Address Table Size :16000 entries
• Routing Protocol :IGMPv2, IGMP, IGMPv3
• Remote Management Protocol:SNMP 2, SNMP, RMON, Telnet, HTTP, TFTP, SSH-2
• Features :Layer 2 switching, MDI/MDI-X switch, auto-negotiation, port mirroring, IP address filtering, Access Control List (ACL) support, Quality of Service (QoS), front to back airflow, LLDP support, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dual firmware images, redundant fans, MAC and IP-based ACLs support, Time-controlled ACLs support
• Compliant Standards :IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3ax
• Dimensions (WxDxH) :17 in x 10 in x 1.8 in
• Weight :8.33 lbs
• Manufacturer Warranty :Limited lifetime warranty

Dell EMC Networking N1148P ON Switch

• Device Type : Switch - 48 ports - Managed - stackable
• Enclosure Type:Rack-mountable 1U
• Subtype:Gigabit Ethernet
• Ports:48 x 10/100/1000 (24 PoE+) + 4 x 10 Gigabit SFP+
• Power Over Ethernet (PoE):PoE+
• PoE Budget 375 W
• Performance:Switching fabric bandwidth: 176 Gbps ¦ Forwarding performance: 132 Mpps
• Capacity:MAC addresses: 16000 ¦ Aggregated links (dynamic): 144 ¦ LAG groups: 64 ¦ Queues per port: 8 ¦ VLANs supported: 512 ¦ ARP entries: 2048 ¦ NDP entries: 400 ¦ Max ACL rules system-wide: 4000 ¦ ACL: 100 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 1023 ¦ Maximum ACL rules per interface (IPv4) egress rules: 1023 ¦ Maximum ACL rules per interface (IPv6) ingress rules: 1021 ¦ Maximum ACL rules per interface (IPv6) egress rules: 253
• MAC Address Table Size 16000 entries
• Routing Protocol:IGMPv2, IGMP, IGMPv3
• Remote Management Protocol:SNMP 2, SNMP, RMON, Telnet, HTTP, TFTP, SSH-2
• Encryption Algorithm:AES, SSL, TLS 1.0
• Authentication Method:RADIUS, TACACS+, LDAP
• Features:Layer 2 switching, MDI/MDI-X switch, auto-negotiation, port mirroring, IP address filtering, Access Control List (ACL) support, Quality of Service (QoS), front to back airflow, LLDP support, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dual firmware images, redundant fans, MAC and IP-based ACLs support, Time-controlled ACLs support
• Compliant Standards:IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3ax
• RAM:1 GB
• Flash Memory:1 GB
• Power
• Power Device:Internal power supply
• Installed Qty:1
• Power Provided:500 Watt
• Power Consumption Operational:459 Watt
• Manufacturer Warranty:Service & Support Limited warranty - parts - lifetime

D Link DES 1210 52 48 Port Smart Switch

• Product Dimensions:9.8 x 17.3 x 1.7 inches
• Item Weight:7.28 pounds
• Shipping Weight:10.67 pounds (View shipping rates and policies)
• Manufacturer:D-Link Systems
• Item model number:DES-1210-52
• Customer Reviews:5.0 out of 5 stars
• Best Sellers Rank:#2,984 in Computer Networking Switches

D Link DGS 1100 26MP Switch

• Brand:D-Link Business
• Colour:Black
• Item Height:44 Millimeters
• Item Width:44 Centimeters
• Item Weight:3.81 Kg
• Product Dimensions:29 x 44 x 4.4 cm
• Item model number:DGS-1100-26MP
• Processor Count:1
• Voltage:240 Volts
• Wattage:387 Watts
• Hardware Platform:Windows

D Link DGS 1100 10MP Switch

• Brand:D-Link Business
• Colour:Black
• Item Height:44 Millimeters
• Item Width:28 Centimeters
• Item Weight:1.8 Kg
• Product Dimensions:18 x 28 x 4.4 cm
• Item model number:DGS-1100-10MP
• Processor Count:1
• Voltage:240 Volts
• Wattage:141.4 Watts
• Hardware Platform:not_machine_specific
• Included Components:DGS-1100-10MP

D Link WebSmart DGS 1210 28P Ethernet Switch

• Brand Name:D-Link
• Item model number:DGS-1210-28P
• Hardware Platform:PC
• Operating System:PC
• Item Weight:10 pounds
• Product Dimensions:17.3 x 9.8 x 1.7 inches
• Item Dimensions L x W x H:17.32 x 9.84 x 1.73 inches
• Processor Count:1
• Voltage:240 volts

D Link 24 Port Web Smart III PoE Switch

• Model:DES-1210-28P
• Model Year:2010
• Item Weight:2.2 Kg
• Product Dimensions:44 x 21 x 4.4 cm
• Item model number:DES-1210-28P
• Processor Count:1
• Batteries Included:No
• Batteries Required:No
• Data Transfer Rate:1 gigabits_per_second
• Number of Ports:28
• Has Auto Focus:No
• Supports Bluetooth Technology:No
• Programmable Buttons:No

D Link DGS 1210 10P Web Smart Switch

• Brand:D-Link
• Colour:Grey
• Item Height:44 Millimeters
• Item Width:28 Centimeters
• Item Weight:948 g
• Product Dimensions:12.6 x 28 x 4.4 cm
• Item model number:DGS-1210-10P
• Processor Count:1
• Wireless Type:802.11.n
• Number of Ethernet Ports:8
• Voltage:240 Volts
• Wattage:14.45 Watts


D LINK DES 1210 08P Switch

• Brand:D-LINK
• Model:790069346842
• Model Year:2011
• Item Weight:998 g
• Product Dimensions:19 x 12 x 3.8 cm
• Item model number:790069346842
• Processor Count:1

CISCO SF350 48MP 48 PORT 10 100 POE MANAGED SWITCH

• Brand : Cisco Systems, Inc.
• Series : 350
• Model : SF350-48MP-K9-NA
• Format : Desktop
• Network Management Type : Ethernet Switch
• Uplink Ports : Yes
• Uplink Interface : SFP
• Primary Ports : 48 x Fast Ethernet Network Fast Ethernet Gigabit Ethernet 4 x Gigabit Ethernet Expansion Slot 2 x Gigabit Ethernet Network
• Primary Port Speed : 10/100Base-TX 1000Base-X 10/100/1000Base-TX
• Data Transmission Uplink Speed : SFP
• Weight : 16.2
• Model : SF350-48MP

CISCO AIRONET POWER INJECTOR AIR PWRINJ6

• Subcategory: power converters, splitters and accessories
• Manufacturer:Cisco
• Form Factor:external
• Product Line:Cisco Aironet
• Model:Power Injector

CISCO AIRONET 2800I ACCESS POINT

• orm Factor:external
• Type:Wireless access point
• Connectivity Technology:wireless
• Type:Wireless access point
• Connectivity Technology:wireless
• Data Link Protocol:IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
• Wireless Protocol:802.11a/b/g/n/ac Wave 2
• Data Transfer Rate:5.2 Gbps
• Wi-Fi Bands: 2.4 GHz, 5 GHz
• Status Indicator:Boot state, error, status

CISCO 52 PORT GIGABIT MANAGED SWITCH (SG300 52P)

• Brand:Cisco Small Business
• Series:300 Series
• Model:SRW2048-K9-NA
• Format:Rackmount
• Mac Address Table:8k
• Network Managed Type:Managed
• Dimensions:17.35 x 17.3 x 1.75 inch
• Weight:8.62 lbs

Dell Networking N4032 32 Ports 10G BaseT Managed Switch

• Device Type : Switch - 24 ports - L3 - managed - stackable
• Subtype : 10 Gigabit Ethernet
• Ports : 24 x 10GBase-T
• Flash Memory : 256 MB
• MAC Address Table Size : 16000 entries
• Authentication Method : LDAP, RADIUS, TACACS+
• Encryption Algorithm :  AES, SSL, TLS 1.0
• Routing Protocol : OSPF, RIP-1, RIP-2
• Form Factor :  Rack-Mountable
• Power Provided : 460 Watt
• Type : internal power supply

Dell Networking N4032F 32 Ports Managed Switch

• Device Type : Switch - 32 ports - L2+ - managed - stackable
• Subtype : 10 Gigabit Ethernet
• Ports : 24 x 10 Gigabit SFP+
• Flash Memory : 256 MB
• MAC Address Table Size : 16000 entries
• Authentication Method : RADIUS, TACACS+, LDAP
• Encryption Algorithm :  AES, SSL, TLS 1.0
• Routing Protocol : OSPF, RIP-1, RIP-2, IGMPv2
• Form Factor :  Rack-Mountable

Cisco SF350 48MP Port 10 100 PoE Managed Switch

• Brand : Cisco Systems, Inc.
• Series : 350
• Model : SF350-48MP-K9-NA
• Format : Desktop
• Network Management Type : Ethernet Switch
• Uplink Ports : Yes
• Uplink Interface : SFP
• Primary Ports : 48 x Fast Ethernet Network Fast Ethernet Gigabit Ethernet 4 x Gigabit Ethernet Expansion Slot 2 x Gigabit Ethernet Network
• Primary Port Speed : 10/100Base-TX 1000Base-X 10/100/1000Base-TX
• Data Transmission Uplink Speed : SFP
• Weight : 16.2
• Model : SF350-48MP

Cisco SF350 48 Port PoE Managed Switch

• Brand : Cisco Systems, Inc.
• Series : 350
• Model : SF350-48P-K9-NA
• Format : Desktop
• Network Management Type : Ethernet Switch
• Uplink Ports : Yes
• Uplink Interface : SFP
• Primary Ports : 48 x Fast Ethernet Network Fast Ethernet 4 x Gigabit Ethernet Expansion Slot Gigabit Ethernet 2 x Gigabit Ethernet Network
• Primary Port Speed : 10/100Base-TX 1000Base-X 10/100/1000Base-TX
• Data Transmission Uplink Speed : SFP
• Weight : 15.9

Cisco SF350 48 Port Managed Switch

• Brand : Cisco Systems, Inc.
• Series : 350
• Model : SF350-48-K9-NA
• Format : Desktop
• Network Management Type : Ethernet Switch
• Uplink Ports: Yes
• Uplink Interface : SFP
• Primary Ports : 48 x Fast Ethernet Network Fast Ethernet Gigabit Ethernet 2 x Gigabit Ethernet Expansion Slot 4 x Gigabit Ethernet Network
• Primary Port Speed: 10/100Base-TX 1000Base-X 10/100/1000Base-TX
• Data Transmission Speed :  SFP
• Weight : 10.4

HP aruba X372 54VDC 680W 100 240VAC Power Supply JL086A

• Brand Name: HPE
• Product Name : Aruba X372 54VDC 680W 100-240VAC Power Supply
• Product Type : Power Module
• Input Voltage : 120 V AC, 230 V AC
• Output Voltage : 54 V DC
• Output Power : 680 W
• Height: 1.6"
• Width : 3.3"
• Depth : 8.9"
• Weight (Approximate) : 1.82 lb

HP aruba 3810M 48G PoE plus 1slot Switch JL074A

• 48 RJ-45 autosensing 10/100/1000 PoE+ ports
• 1 open uplink module slot
• 1 Power Supply required (Max 2)
• 1U - Height
• Fan tray
• includes: 1 x JL088A
• 1 fan tray slot
• PoE Power (Max Possible) 1440W
• Switch ships with 1 JL088A fan tray installed. Spares ordered separately
• Supports a maximum of 4 SFP+ ports or 2 40GbE ports, with optional module

Dell X1008I Networking X1008 Smart Switch

• Subtype : Gigabit Ethernet
• Ports : 8 x 10/100/1000
• MAC Address Table Size : 16K entries
• Authentication Method : RADIUS, TACACS+
• Features : ARP inspection, Access Control List

Dell Networking X1008 Smart Switch

• Subtype : Gigabit Ethernet
• Ports : 8 x 10/100/1000
• MAC Address Table Size : 16K entries
• Authentication Method : RADIUS, TACACS+
• Features : ARP inspection, Access Control List

Dell VDRFG Networking N1548 Switch

• Type : Switch
• Subtype : Gigabit Ethernet
• Ports : 48 x 10/100/1000 + 4 x 10 Gigabit SFP+
• Authentication Method : RADIUS, Secure Shell (SSH), TACACS+
• Flash Memory : 256 MB
• MAC Address Table Size : 16000 entries
• Authentication Method : Secure Shell (SSH), RADIUS, TACACS+
• Power Provided : 100 Watt
• Routing Protocol : RIP-1, RIP-2, static IPv4 routing, static IPv6 routing
• Remote Management Protocol : TFTP, Telnet
• Features : Broadcast Storm Control

Dell V3JJH Networking S4048 On Switch

• Line-rate : 48 x 10GbE SFP+ ports or 72 10GbE
• ports : ports with breakout cables
• 40GbE ports : 6 x 40GbE QSFP+ ports
• Power supply : 100 - 240 VAC 50/60 Hz
• memory : 12MB

Dell S9GYD Networking N4032 59GYD Switch

• Standard Port Attributes : 10Gb/1Gb/100Mb
• Maximum stacking speed : 160Gbps
• Forwarding Rate : 476Mpps
• Power Consumption Max : 240

Dell Networking N4032F Switch

• Device Type : Switch - 24 ports - L2+ - managed - stackable
• Subtype : 10 Gigabit Ethernet
• Ports : 24 x 10 Gigabit SFP+
• MAC Adderss Table Size : 131072 entries
• Authentication Method : RADIUS, TACACS+, LDAP
• Form Factor : rack-mountable
• Power Provided : 460 Watt
• Features : Access Control List (ACL) support

Dell Networking N3024F L3 Switch

• Device Type : Switch - 24 ports - L2+ - managed - stackable
• Subtype : Gigabit Ethernet
• Ports : 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x combo 1000Base-T
• MAC Adderss Table Size : 16K entries
• Authentication Method : RADIUS, Secure Shell (SSH), TACACS+
• Form Factor : rack-mountable
• Power Provided : 200 Watt
• Remote Management Protocol : HTTP, RMON, SNMP, SNMP 2, SSH
• Features : Broadcast Storm Control, Dynamic VLAN Support

Dell Networking N1524P POE Switch

• Device Type : Switch - 24 ports - L2+ - managed - stackable
• Subtype : Gigabit Ethernet
• Ports : 24 x 10/100/1000 + 4 x 10 Gigabit SFP+
• MAC Adderss Table Size : 16000 entries
• Authentication Method : SECURE SHELL (SSH), RADIUS, TACACS+
• Form Factor : rack-mountable
• Power Provided : 6000 Watt
• Remote Management Protocol : TFTP, Telnet
• Features : Broadcast Storm Control, auto-negotiation, auto-uplink (auto MDI/MDI-X)


Dell Networking N1524 24X Switch

• Device Type : Switch - 24 ports - L2+ - managed - stackable
• Subtype : Gigabit Ethernet
• Ports : 24 x 10/100/1000 + 4 x 10 Gigabit SFP+
• MAC Adderss Table Size : 16000 entries
• Authentication Method : SECURE SHELL (SSH), RADIUS, TACACS+
• Form Factor : rack-mountable
• Power Provided : 40 Watt
• Remote Management Protocol : TFTP, Telnet
• Features : Broadcast Storm Control, auto-negotiation, auto-uplink (auto MDI/MDI-X)

Dell C1PVR Networking W IAP103 Wireless Switch

• Data rates : 802.11b
• Maximum power consumption: 9.5W (POE)
• interfaces :  10/100/1000BASE-T

Dell 434T8 Networking S4048T On Switch

• Product Type : Ethernet Switch
• Part : 434T8
• Product Model :  S4048T-ON
• Ports: 48 x10GBASE-T
• Product Series :  S4048T-ON
• Form Factor : Rack-mountable
• Redundant Power Supply : S4048T, AC Power Supply, I/O Panel to PSU Airflow
• Fans :  S4048T Fan Module, I/O Panel to PSU Airflow
• Cables : Cable, QSFP+ to QSFP, 40GBE Passive Copper Direct Attach Cable, 0.5 Meter

Dell 210 AEVX Networking N1524 24X Switch

• Device Type : SWITCH - 24 PORTS - L2+ - MANAGED - STACKABLE
• Subtype : GIGABIT ETHERNET
• Ports : 24 X 10/100/1000 + 4 X 10 GIGABIT SFP+
• MAC Adderss Table Size : 16000 ENTRIES
• Authentication Method : SECURE SHELL (SSH), RADIUS, TACACS+
• Remote Management Protocol : TELNET, TFTP

Dell 210 AEIR Networking X1008P Smart Switch

• Device Type : SWITCH - 8 PORTS - L2+ - MANAGED
• Subtype : GIGABIT ETHERNET
• Ports : 8 X 10/100/1000
• MAC Adderss Table Size : 16K ENTRIES
• Authentication Method : RADIUS, TACACS+
• Remote Management Protocol : SNMP 1, SNMP 2

Dell 210 AEIQ Networking X1008 Smart Switch

• Device Type : Switch - 8 PORTS - L2+ - MANAGED
• Subtype : GIGABIT ETHERNET
• Ports : 8 X 10/100/1000
• MAC Adderss Table Size : 16K ENTRIES
• Authentication Method : RADIUS, TACACS+
• Remote Management Protocol : SNMP 1, SNMP 2

Dell 210 ADUW Networking S4048 On Switch

• Type : Switch - 48 ports - L3 - Managed - stackable
• Subtype : 10 Gigabit Ethernet
• Ports : 48 x 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+
• Capacity :  64
• MAC Address Table Size : 160000 entries
• Routing Protocol : OSPF, BGP-4,
• Features : Flow control

Dell 210 ACQP Networking W IAP103 Wireless Switch

• Device Type : Radio access point
• Form Factor : External
• Connectivity Technology : Wirelesss
• Data Transfer Rate : 300 Mbps
• Features : Auto-sensing per device, auto-uplink
• Power Over Ethernet : PoE+

Dell 210 ABVS Networking N4032 Switch

• Type : Fixed Port
• Port Count : 24
• Management : Smart Managed
• Routing/Switching : Layer 3 Lite
• Flash memory : 256 MB
• Ports/Interfaces : RJ-45,sfp+
• Mounting : Rack
• Power Consumption : 240W
• Management Features : MAC address table : 131072 entries

Dell Networking N3024F L3 Ports Managed Switch

• Device Type : Switch - L3 ports - L2+ - managed - stackable
• Subtype : Gigabit Ethernet
• Ports : 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x combo 1000Base-T
• Flash Memory : 256 MB
• MAC Address Table Size : 16K entries
• Authentication Method : Secure Shell (SSH), RADIUS, TACACS+
• Encryption Algorithm :  MD5, AES, SSL, TLS
• Routing Protocol : OSPF, RIP-1, RIP-2
• Power Provided : 200 Watt
• Type : internal power supply
• Form Factor :  Rack-Mountable

Dell Networking S4048T On Ports Managed Switch

• Device Type : Ethernet Switch
• Model : Dell Networking S4048T-ON
• Subtype : 10 Gigabit Ethernet
• Number of LAN Ports : 48
• Number of Network Ports : 48 + 6x40GbE QSFP+
• Form Factor :  Rack-Mountable

Dell Networking S4048 On Ports 10GbE SFP Managed Switch

• Line-rate : 48 x 10GbE SFP+ ports or 72 10GbE
• ports : ports with breakout cables
• Power supply : 100 - 240 VAC 50/60 Hz
• rate : 720Gbps
• memory : 12MB

Dell Networking N4032F 32 Ports Managed Switch

• Device Type : Switch - 32 ports - L2+ - managed - stackable
• Subtype : 10 Gigabit Ethernet
• Ports : 24 x 10 Gigabit SFP+
• Flash Memory : 256 MB
• MAC Address Table Size : 16000 entries
• Authentication Method : RADIUS, TACACS+, LDAP
• Encryption Algorithm :  AES, SSL, TLS 1.0
• Routing Protocol : OSPF, RIP-1, RIP-2, IGMPv2
• Form Factor :  Rack-Mountable

Dell Networking N4032 32 Ports 10G BaseT Managed Switch

• Device Type : Switch - 24 ports - L3 - managed - stackable
• Subtype : 10 Gigabit Ethernet
• Ports : 24 x 10GBase-T
• Flash Memory : 256 MB
• MAC Address Table Size : 16000 entries
• Authentication Method : LDAP, RADIUS, TACACS+
• Encryption Algorithm :  AES, SSL, TLS 1.0
• Routing Protocol : OSPF, RIP-1, RIP-2
• Form Factor :  Rack-Mountable
• Power Provided : 460 Watt
• Type : internal power supply

Dell Networking N1548 48 Ports Managed Switch

• Device Type : Switch - 48 ports - L2+ - managed - stackable
• Subtype : Gigabit Ethernet
• Ports : 48 x 10/100/1000 + 4 x 10 Gigabit SFP+
• Flash Memory : 256 MB
• MAC Address Table Size : 16000 entries
• Authentication Method : Secure Shell (SSH), RADIUS, TACACS+
• Encryption Algorithm :  MD5, AES, SSL, TLS
• Routing Protocol : RIP-1, RIP-2, static IPv4 routing, static IPv6 routing
• Form Factor :  Rack-Mountable

Dell Networking X1008P Smart Web Managed Switch 8x 1GbE PoE ports Switch

• Device Type : Switch 8X1GbE Ports
• Subtype : Gigabit Ethernet
• Ports : 8 x 10/100/1000
• Flash Memory : 256 MB
• MAC Address Table Size : 16K entries
• Authentication Method : RADIUS, TACACS+
• Ports Qty : 8
• Power Provided : 24 Watt
• Frequency Required : 50/60 Hz
• Type : external power adapter

Dell Networking X1008 Ports Smart Web Managed Switch

• Device Type : Switch 8X1GbE Ports
• Subtype : Gigabit Ethernet
• Ports : 8 x 10/100/1000
• Flash Memory : 256 MB
• MAC Address Table Size : 16K entries
• Authentication Method : RADIUS, TACACS+
• Ports Qty : 8
• Power Provided : 24 Watt
• Frequency Required : 50/60 Hz
• Type : external power adapter

Dell Networking N1524P 24 Ports Managed Switch

• Device Type : Switch - 24 ports - L2+ - managed - stackable
• Subtype : Gigabit Ethernet
• Ports : 24 x 10/100/1000 + 4 x 10 Gigabit SFP+
• Flash Memory : 256 MB
• MAC Address Table Size : 16000 entries
• Authentication Method : Secure Shell (SSH), RADIUS, TACACS+
• Encryption Algorithm :  MD5, AES, SSL, TLS
• Routing Protocol : RIP-1, RIP-2, static IPv4 routing, static IPv6 routing
• Form Factor :  Rack-Mountable
• Power Provided : 600 Watt
• Type : internal power supply

Dell Networking N1524 24 Ports Managed Switch

• Device Type : Switch - 24 ports - L2+ - managed - stackable
• Subtype : Gigabit Ethernet
• Ports : 24 x 10/100/1000 + 4 x 10 Gigabit SFP+
• Flash Memory : 256 MB
• MAC Address Table Size : 16000 entries
• Authentication Method : Secure Shell (SSH), RADIUS, TACACS+
• Encryption Algorithm :  MD5, AES, SSL, TLS
• Routing Protocol : RIP-1, RIP-2, static IPv4 routing, static IPv6 routing
• Form Factor :  Rack-Mountable

D-Link DGS 1008MP 8 ports unmanaged rack-mountable switch

• Port : 8-Port 10/100/1000 PoE Smart Switch
• Design : Metal Fanless
• MAC Address Table Size : 8K
• Switch Capacity : 32Gbps
• Transmission Method : Store-and-Forward
• Packet Buffer Memory : 340Kbytes Buffer Memory per Device
• QoS : 802.1p (4 Queues)
• Interface  : RJ-45
• Power Supply : 100-240VAC, 50/60 Hz Internal Universal Power
• Dimensions : 280 x 180 x 44mm
• Weight : 3.86lbs (1.75Kg)
• Warranty : 3 Years

D-Link DGS 1008P 8 Port Desktop Switch

• Port : 8-Port 10/100/1000 PoE Smart Switch
• Port Type : Gigabit
• Number of Ports : 5 - 8
• PoE Type Required :    PoE
• Design : Metal Fanless
• Ethernet Speed : Gigabit
• LAN Ports : 8
• PoE ports : 4 Ports
• Housing :    Metal
• Power Supply : External
• Dimensions  : 32.8 x 18 x 10.7 cm
• Warranty : 3 Years

D-Link DGS 1008P 8 Port Desktop Switch

• Port : 8-Port 10/100/1000 PoE Smart Switch
• Port Type : Gigabit
• Number of Ports : 5 - 8
• PoE Type Required : PoE
• Design : Metal Fanless
• Ethernet Speed : Gigabit
• LAN Ports : 8
• PoE ports : 4 Ports
• Housing : Metal
• Power Supply : External
• Dimensions : 32.8 x 18 x 10.7 cm
• Warranty : 3 Years

D Link DES 1008P 8 Port Desktop Switch

• Brand : D-Link
• Model : DES-1008P
• Switching Capacity : 1.6 Gbps
• Max. Packet Forwarding Rate : 1.19 Mpps
• Store & Forwarding Forwading : Yes
• Dimension : 140 x77 x27mm
• Weight : 0.41 kg
• Operation Temperature : 0 ~ 40 °C
• Storage Temperature : - 10 ~ 70 °C
• Operation Humidity : 10% ~ 90% RH
• Storage Humidity : 5% ~ 90% RH
• Maximum PoE Budget : 58W
• Jumbo Frame : 2048 Bytes
• 802.3x Flow Control : Yes
• 100Base-TX PoE Interface : 4
• Auto MDI/MDIX : Yes
• 100Base-TX Interface : 4
• Power Input : AC?100 ~ 240 V
• Packet Buffer Size : 57K Bytes
• FAN : Fanless
• MAC Address Table Size : 2K
• Warranty : 3 Years Warranty

D-Link KVM Cable KVM 402

• Product Line :  D-Link
• Model  : KVM-402
• Packaged Quantity : 1
• Compatibility : PC
• Connector Type : 15 pin HD D-Sub (HD-15)
• I/O Cable Type : keyboard / video / mouse (KVM) cable
• Warranty : 1 Years

D-Link DKVM CU KVM Switch Cable

• Product Type : D- Link DKVM-CU Video / USB Cable -1.8m
• Cable length : 1.8 m
• Colour of product : Black
• Connector 1 : VGA
• Connector 2 : USB
• Warranty : 1 Years

D-Link KVM 401

• Product Code : KVM-401
• Audio Support : No
• Auto Scan : No
• USB : 1
• VGA : 2
• Cable Length : 1.8 Metres
• Hot Keys : No
• Interface Type : PS/2
• Warranty : 1 Years

D-Link KVM 440 PS2 USB 8 Port KVM Switch

• Product Type: KVM Switchbox
• Number of Computers Supported: 8
• Maximum Video Resolution: 2048 x 1536
• Form Factor: Rack-mountable
• Number of PS/2 Ports: 10
• Operating Systems Supported : Windows 98SE/ME/2000/2003/2008/XP/Vista/7, Linux, Mac OS 9/OS X and Sun Microsystems
• Maximum Video Resolution : 2048 x 1536
• Warranty : 1 Years


D-Link 4 Port USB KVM Switch

• Type : D-Sub, USB
• Monitor: 4 x DB-15 HDDB
• LED Indicators : 4-Port status LEDs
• Video Resolution : 2048 x 1536
• Computer Connections : 4 Ports
• Monitor Connections : 4 Ports
• Dimensions : 7 x 4.1 x 1.2 inches
• Weight : 0.61 lbs
• Warranty : 1 Years

D-link DGS 1024C Gigabit Switch

• Ports : 24 x 10/100/1000 Mbps LAN ports
• Dimensions  : 282.2 x 178.0 x 44.5 mm
• Switching Capacity : 48 Gbps
• Switching Features : QoS
• Media Interface : Auto MDI/MDIX
• Transmission Method : Store-and-forward
• MAC Address Table Size  : 16K
• RAM Buffer : 512 KB per device
• Power Consumption : Power On (Standby): 6.5 watts / Maximum: 13.5 watts
• Maximum Heat Dissipation : 46.04 BTU/h
• Warranty : 3 Years

D-link DGS 1016A Gigabit Switch

• Ports : 16 x 10/100/1000 Mbps
• Dimensions :  158W x 231D x 46H mm
• Casing : Plastic
• Switching Capacity : 3.2 Gbps
• Switching Features : D-Link Green Technology, Energy Efficient Ethernet, Quality of Service (QoS), auto-uplink (auto MDI/MDI-X), flow control,
• Transmission Method  : Store-and-forward
• Power Supply :  AC 120/230 V
• MAC Address Table Size : 8K
• RAM Buffer : 256 KB per device
• Warranty : 3 Years

D-link DGS 1008C Switch

• Ports :  8 10/100/1000 Mbps LAN ports
• Media interfaces : RJ45
• Dimensions : 151.2 x 96.0 x 22.0 mm
• Transmission Method  : Store-and-forward
• Switching Capacity : 16 Gbps
• MAC Address Table Size : 8K
• Power Consumption : Power On (Standby): 1.05 watts / Maximum: 4 watts
• Data Transfer Rates : 100 Mbps (half duplex) / 200 Mbps (full duplex)
• RAM Buffer : 256 KB per device
• Maximum Heat Dissipation : 18.20 BTU/h
• Warranty : 3 Years


D-link DES 1024C Switch

• Ports : 24 10/100 Mbps LAN ports
• Dimensions : 282.2 x 151 x 44.5 mm
• Transmission Method : Store-and-forward
• MAC Address Table Size : 8K
• Switching features  :   IEEE 802.1p QoS / IEEE 802.3x Flow Control
• Switching Capacity : 4.8 Gbps
• RAM Buffer : 256 KB per device
• Power Consumption : Power On (Standby): 1.25 watts /  Maximum: 6 watts
• Data Transfer Rates : 100 Mbps (half duplex) / 200 Mbps (full duplex)
• Maximum Heat Dissipation  : 27.3 BTU/h
• Warranty : 3 Years

D-link DES 1016A Switch

• Ports : 16 10/100Mbps Fast Ethernet ports
• Dimensions : 280 x 125.8 x 44 mm
• Media Interface  : Auto MDI/MDIX
• Switching Capacity : 4.8 Gbps
• Speeds :  IEEE 802.3x Flow Contro/ Plug-and-play installation
• Transmission Method  : Store-and-forward
• RAM BUFFER : 256K Bytes
• MAC Address Table Size : 8K
• Topology : Star
• Protocol : CSMA/CD
• Warranty : 3 Years

D-link DES 1005C Switch

• Port : 5-port 10/100Mbps Unmanaged switch
• Dimension : 142 x 108 x 32 mm
• Media interfaces : RJ-45
• Switching features : SOHO Plug-and-Play
• Switching Capacity : 1 Gbps
• MAC table : 2k
• Power Supply : DC 5 V / 0.55 A
• DC jack : Located on side
• Casing : Plastic
• Max. Packet Forwarding Rate :     148.8 kpps
• 802.3x flow control : yes
• Auto MDI/MDIX : yes
• Warranty : 3 Years

D-link DES 1008C Switch

• Ports : 8 10/100 Mbps Fast Ethernet ports
• Media interfaces : RJ45
• Switching Capacity : 1.6 Gbps switching fabric
• Switching features : Wire-speed reception and transmission
• Transmission Method  : Store-and-forward
• Data Transfer Rates  : 10 Mbps (half duplex) / 20 Mbps (full duplex)
• MAC Address Table Size : 2K
• Power Consumption  : Power On (Standby): 0.55 watts / Maximum: 1.55 watts
• RAM Buffer : 96 KB per device
• Auto MDI/MDIX : yes

D link DES 1005C Switch

• Port : 5-port 10/100Mbps Unmanaged switch
• Dimension : 142 x 108 x 32 mm
• Media interfaces : RJ-45
• Switching features : SOHO Plug-and-Play
• Switching Capacity : 1 Gbps
• MAC table : 2k
• Power Supply : DC 5 V / 0.55 A
• DC jack : Located on side
• Casing : Plastic
• Max. Packet Forwarding Rate :     148.8 kpps
• 802.3x flow control : yes
• Auto MDI/MDIX : yes
• Warranty : 3 Years

HPE FlexNetwork 5510 2 port 10GbE SFP 2p Module - Expansion Module

• Product Type: Expansion module
• Part : JH157A
• Type : 2-port SFP+ Module
• Product Series : HPE 5510 2-port
• Form Factor : Plug-in module
• Connectivity: SFP+
• Ports: 2-port 10 GbE SFP+Module
• Designed For HPE 5130 24, 5130 48, 5510, 5510 24
• Limited Warranty : Lifetime


HPE FlexNetwork 5130 2-port 10GbE SFP Module - Expansion Module

• Product Type: Expansion module
• Part : JH157A
• Type : 2-port SFP+ Module
• Product Series : HPE 5130 2-port
• Form Factor : Plug-in module
• Connectivity: SFP+
• Ports: 2-port 10 GbE SFP+Module
• Designed For HPE 5130 24, 5130 48, 5510, 5510 24
• Limited Warranty : Lifetime

HPE FlexNetwork 5510 2-port 10GbE SFP Module-Expansion Module

• Product Type: Expansion module
• Part : JH156A
• Type : 2-port SFP + Module
• Product Series : HPE 5510 2-port
• Form Factor : Plug-in module
• Connectivity: Wired, Ethernet 1000Base-T, Ethernet 10GBase-T
• Ports: 2-port 10 GbE SFP Module
• Designed For HPE 5130 24, 5130 48, 5510, 5510 24
• Limited Warranty : Lifetime

HPE FlexNetwork 5130 2-port 10GbE-T 2p SFP Module-Expansion Module

• Product Type: Expansion module
• Part : JH156A
• Type : 2-port SFP+ Module
• Product Series : HPE 5130 2-port QSFP
• Form Factor : Plug-in module
• Connectivity: Wired
• Ports: 2-port 10 GbE Module
• Designed For HPE 5130, 5130 24, 5130 48, 5510, 5510 24
• Limited Warranty : Lifetime

HPE FlexNetwork 5510 2-port 10GbE SFP Module - Expansion Module

• Product Type: Expansion module
• Part : JH155A
• Type : 2-port QSFP+ Module
• Product Series : HPE 5510 2-port QSFP
• Form Factor : Plug-in module
• Connectivity: Wired
• Ports: 2-port 40GbE SFP+ Module
• Designed For HPE 5510 2-port QSFP+ Module
• Limited Warranty : Lifetime

HPE FlexNetwork 5510 24G SFP 4SFP HI Switch

• Product Type: Ethernet Switch
• Part: JH149A
• Type : Managed, Layer 3
• Product Series : 5510
• Product Model : 5510 24G SFP 4SFP
• Ports: 16 x Gigabit SFP + 4 x 10 Gigabit SFP+ + 8 x 10/100/1000/SFP
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime


HPE FlexNetwork 5510 24G PoE 4SFP HI Switch

• Product Type: Switch
• Part: JH147A
• Type : Managed, Layer 3
• Product Series : 5510
• Product Model : 5510 24G 4SFP+ HI
• Ports: 24 x 10/100/1000 + 4 x Gigabit SFP + 4 x 10 Gigabit SFP+
• Form Factor: Rack-mountable 1U
• PoE: PoE+
• Limited Warranty : Lifetime

HPE FlexNetwork 5510 48G 4SFP HI Switch

• Product Type: Ethernet Switch
• Part: JH146A
• Type : Managed, Layer 3
• Product Series : 5510
• Product Model : 5510 48G 4SFP
• Ports: 48 x 10/100/1000 + 4 x Gigabit SFP + 4 x 10 Gigabit SFP+
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime


HPE FlexNetwork 5510 24G 4SFP HI Switch

• Product Type: Ethernet Switch
• Part: JH146A
• Type : Managed, Layer 3
• Product Series : FlexNetwork 5510
• Product Model : 5510 24G 4SFP
• Ports: 24 x 10/100/1000 + 4 x Gigabit SFP + 4 x 10 Gigabit SFP+
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime


HPE 5500 48G 4SFP HI Switch

• Product Type: Ethernet Switch
• Part: JG312A
• Type : Managed, Layer 3
• Product Series : 5500
• Product Model : HI 5500 24G 4SFP
• Ports: 24 fixed Gigabit Ethernet 4SFP ports, 8 dual-personality ports, 2 port expansion module slots
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime


HPE 5500 24G 4SFP HI Switch

• Product Type: Ethernet Switch
• Part: JG311A
• Type : Managed, Layer 3
• Product Series : 5500
• Product Model : HI 5500 24G 4SFP
• Ports: 24 fixed Gigabit Ethernet 4SFP ports, 8 dual-personality ports, 2 port expansion module slots
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime

HPE ProCurve 5500 24G SFP PoE EI Switch

• Product Type: Ethernet Switch
• Part: JD374A
• Type : Managed, Layer 4
• Product Series : 5500
• Product Model : 5500 24G SFP EI
• Ports: 24 fixed Gigabit Ethernet SFP ports, 8 dual-personality ports, 2 port expansion module slots
• Form Factor: Rack-mountable 1U
•  2 Power Supply Slots
• Limited Warranty : Lifetime 2.0

HPE ProCurve 5500 48G PoE EI Switch

• Product Type: Ethernet Switch
• Part: JG240A
• Type : Managed, Layer 4
• Product Series : 5500
• Product Model : 5500 48G EI
• Ports: 48 x 10/100/1000 + 4 x shared SFP
• PoE: PoE+370W
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime 2.0


HPE ProCurve5500 24G PoE EI Switch

• Product Type: Ethernet Switch
• Part: JG241A
• Type : Managed, Layer 4
• Product Series : 5500
• Product Model : 5500 24G EI
• Ports: 24 x Gigabit SFP + 8 x shared 10/100/1000
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime 2.0

HPE ProCurve 5500 48G Switch

• Product Type: Ethernet Switch
• Part: JD375A
• Type : Managed, Layer 3
• Product Series : 5500
• Product Model : 5500 48G EI
• Ports: 48 x 10/100/1000 + 4 x shared SFP
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime

HPE ProCurve 5500 24G EI Switch

• Product Type: Ethernet Switch
• Part: JD377A
• Type : Managed, Layer 3
• Product Series : 5500
• Product Model : 5500 24G EI
• Ports: 20 x 10/100/1000 + 4 dual SFP + 2 slots
• Form Factor: Rack-mountable 1U
• Limited Warranty : Lifetime

HPE ProCurve 3500 48G PoE yl Switch
